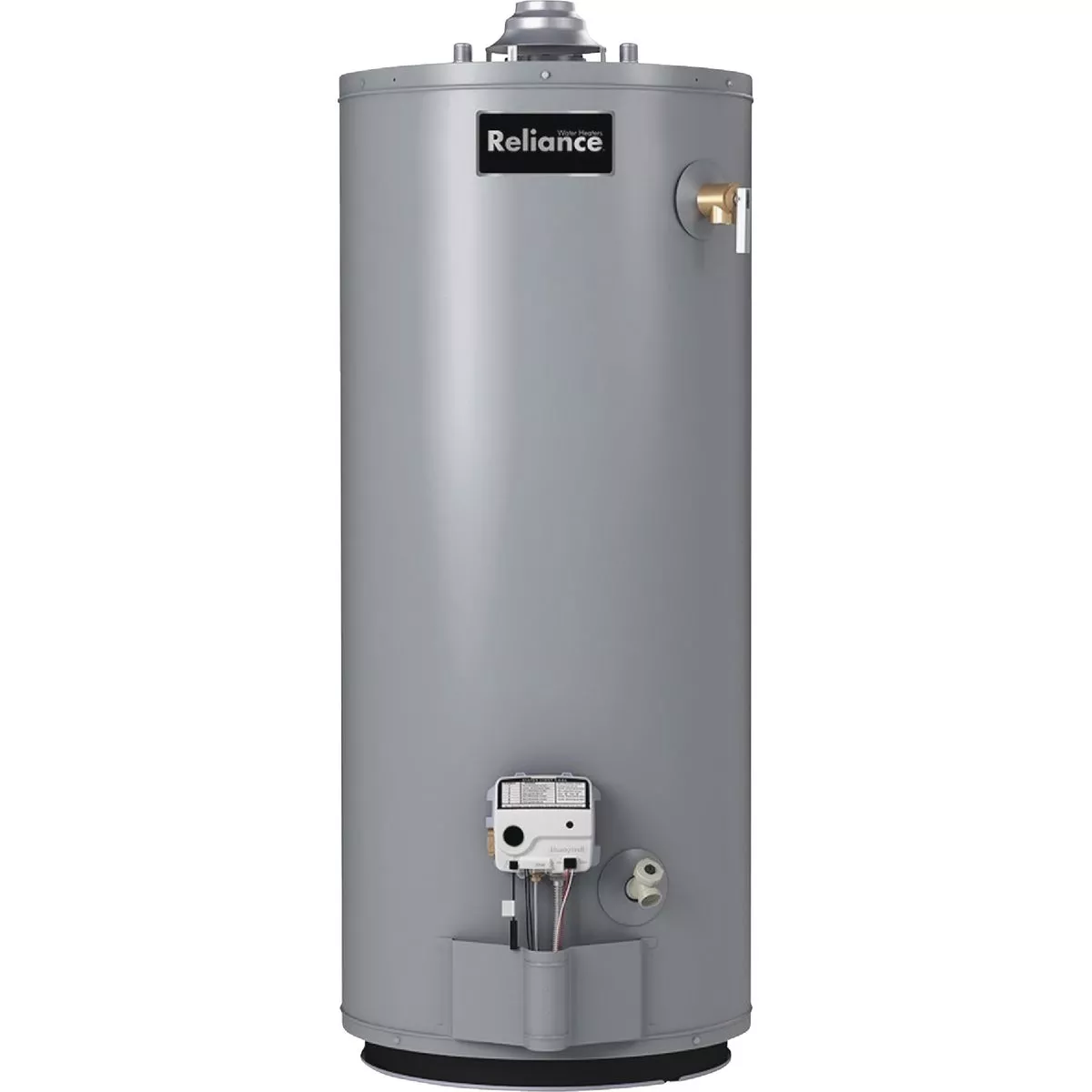

Reliance 30 Gal. Short 6 Year 32,000 BTU Natural Gas Water Heater
Model #6 30 NOCS R UPC 00091193064917
196331
Tap to view
Product overview
Natural gas water heater. For installations from sea level to 10,100 Ft. Draft diverter outlet size: 3 In. with integrated adapter for 4 In. vent option. T & P relief valve, glass lined tank, anode rod, PEX polymer lined heat trap nipples. PEX dip tube, Next Generation FVIR Approved, stainless steel flame arrestor. Air intake entire base of heater, door mounted manual reset temperature cut off, self powered Honeywell Millivolt Generator Gas Control Valve. 6 year tank & parts warranty. Not for use in mobile/manufactured homes. Meets new NAECA 2015 Efficiency Standards.
- Electronic gas control valve that provides precise temperature control and operational status
- Piezo igniter allows for easy one-hand pilot ignition without matches
- PEX dip tube
- Glass-lined tank with anode rod protects against corrosion
- Environmentally-friendly non-CFC foam insulation
- Factory-installed PEX polymer lined heat trap nipples
- Factory-installed temperature & pressure (T&P) relief valve
- 6-year limited tank & parts warranty, 1-year labor warranty
Specifications
| Height (In.) | 50.25 |
| Width (In.) | 20 |
| Depth (In.) | 20 |
| Vent Diameter (In.) | 3 or 4 |
| Water Connection Size (In.) | 3/4 |
| Application Type | Residential |
| BTU Rating | 32,000 |
| Family Size | 3 |
| For Mobile Home Use | No |
| Fuel Type | Natural Gas |
| Gas Connection Size (In.) | 1/2 |
| Nominal Tank Capacity (Gal.) | 30 |
| Recovery Rate at 90F Rise (Gal./Hr.) | 32 |
| Warranty | 6 Year |
| Water Heater Profile | Short |
| Uniform Energy Factor | 0.6 |
| Ventilation Type | Atmospheric Vent |
| Brand | Reliance |
| UPC | 00091193064917 |
| Product type | Gas Water Heater |
