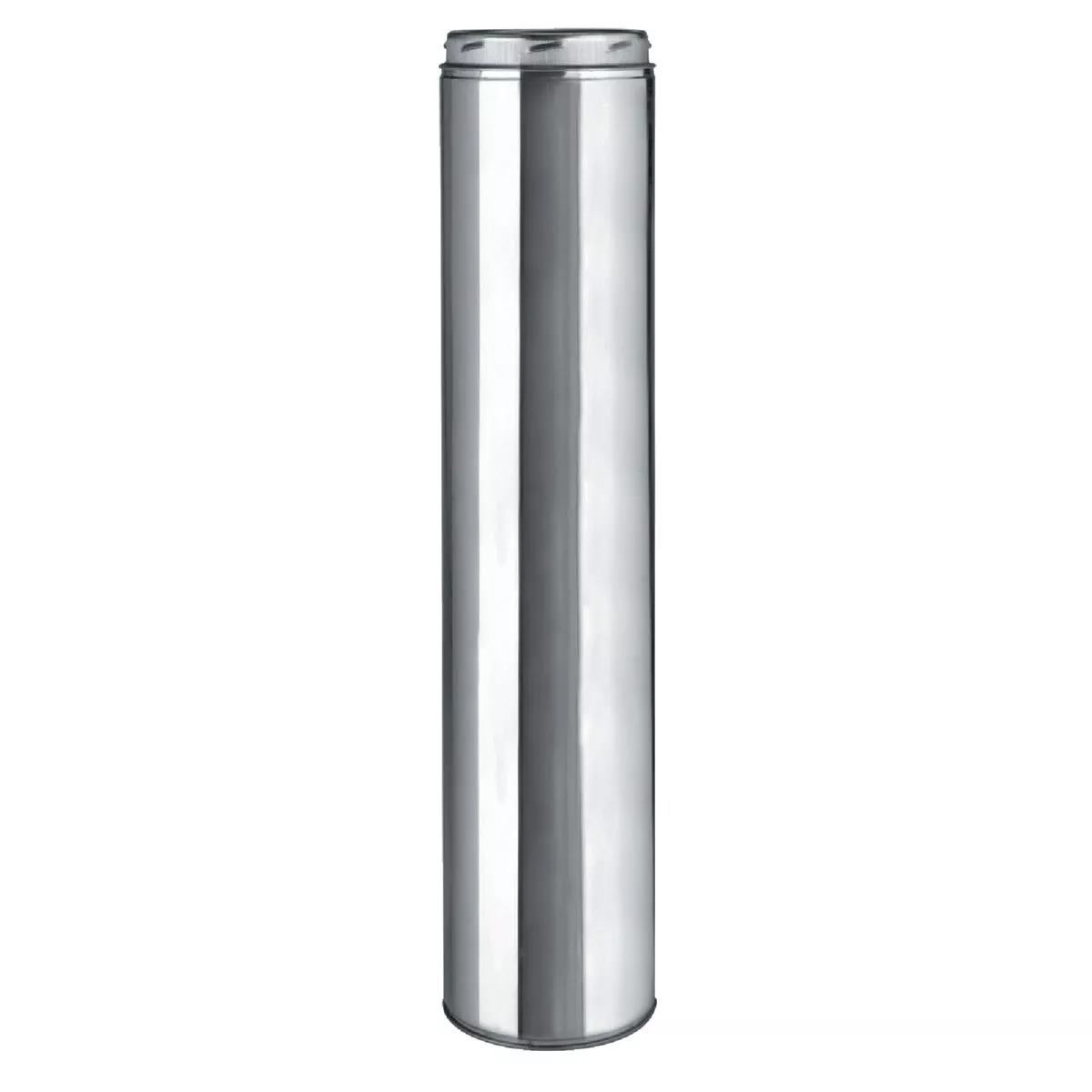

SELKIRK Sure-Temp 8 In. x 36 In. Stainless Steel Insulated Pipe
Model #208036 UPC 00053713131622
588111
Tap to view
Product overview
Stainless steel outer casing and inner liner. Double-wall pipe with solid pack insulation. Tested to withstand 2100 F (degree Fahrenheit). UL (Underwriters' Laboratories) listed. This test helps to prevent product damage or structural hazard during brief periods of this excessive chimney temperature. Normal temperature is 1000 F. Pipe Data: Minimum clearance to combustibles - 2". Stainless steel thickness: Inner lining and outer casing - .012"; couplers - .016". Insulation density - 23 lb/cu ft (pounds per cubic foot). Insulated pipe lengths are furnished with a Locking Band (preassembled with captured nut and screw).
Specifications
| Length | 36 In. |
| Material | Stainless Steel |
| Inside Diameter | 8 In. |
| For Use With | Model SSII |
| Outside Diameter | 10 In. |
| Grade | UL Listed |
| Temperature Rating | 2100 F |
| Coupler Size | 0.016 In. |
| Insulation Density | 23 Lb./Cu. Ft. |
| Clearance To Combustibles | 2 In. |
| Material Thickness | 0.012 In. |
| Brand | SELKIRK |
| UPC | 00053713131622 |
| Product type | Insulated Pipe |
