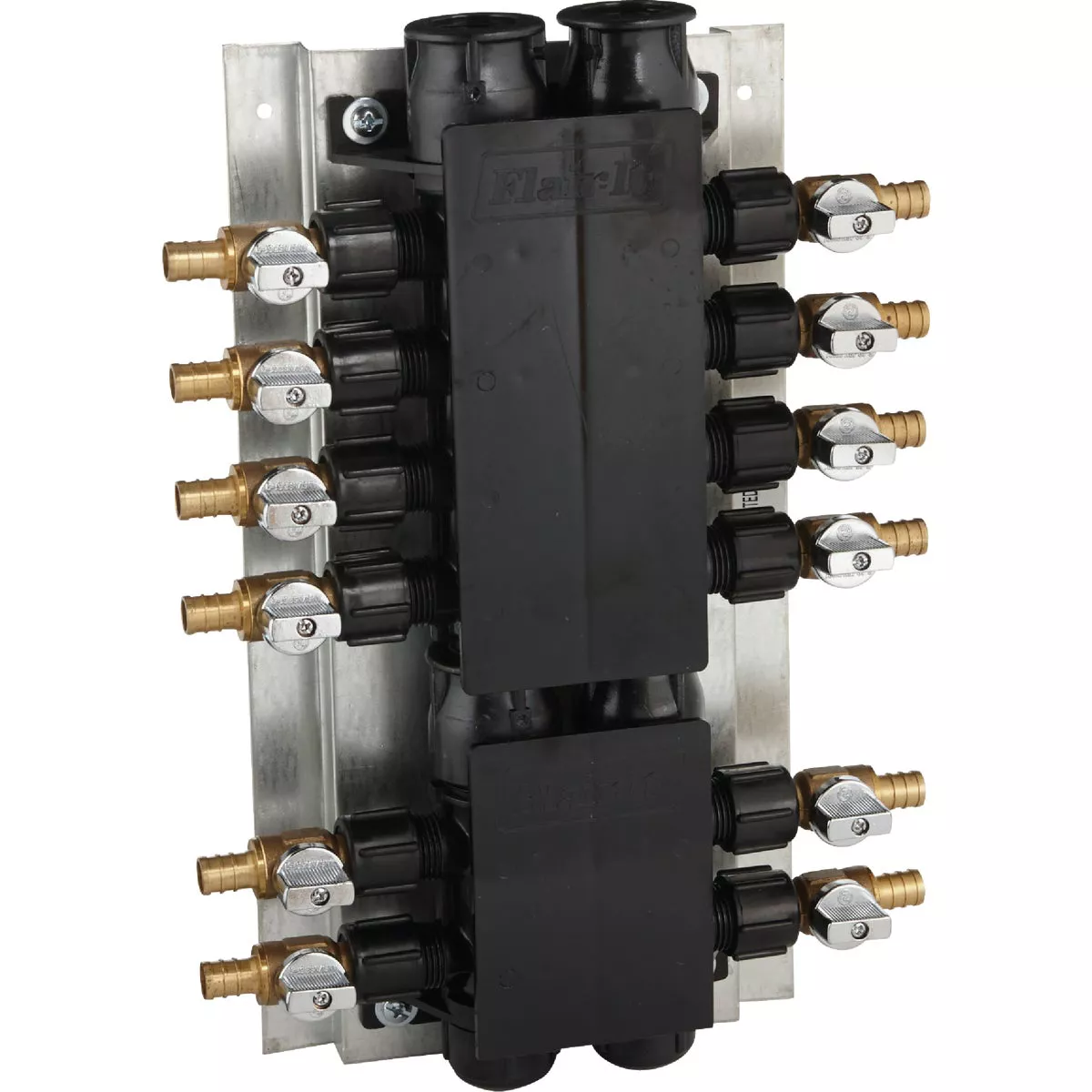

SharkBite 12 Port Barb PEX Manifold with Brass Ball Shutoff Valves
Model #RM22712Item #403127UPC 00697285234635
Tap to view
Product overview
SharkBite 12 or 24 port PEX manifold with shutoff valves. 2 inlet ports with 3/4" female thread swivel connector for hot and cold water lines. 6 or 12 1/2" barb fitting outlet ports with shut off valves for cold water and 6 or 12 1/2" barb fitting outlet ports with shut off valves for hot water. 100 psi (pounds per square inch) maximum working pressure and 180 F (degrees Fahrenheit) maximum working temperature. Certifications: ASTM (American Society for Testing and Materials) F877, CSB 137.5, NSF (National Sanitation Foundation)/ANSI (American National Standards Institute) NSF 61.
- Compatible with PEX and PE-RT pipe
- Connects to PEX pipe with copper crimp rings or stainless steel clamps
- Certified for use in potable water systems
Specifications
| Dimensions | 12.25 In. H x 7.0 In. W x 3.25 In. D |
| Size | 12-Port PEX Manifold |
| Inlet Port | 2 Inlet Ports W 3/4 In. Female Thread |
| Outlet Ports | 1/2\ for C Water; 6, 1/2\ for H Water |
| Maximum Working Pressure | 100 psi |
| Maximum Working Temperature | 180 F |
| Brand | SHARKBITE |
| UPC | 00697285234635 |
| Product type | PEX Manifold |
