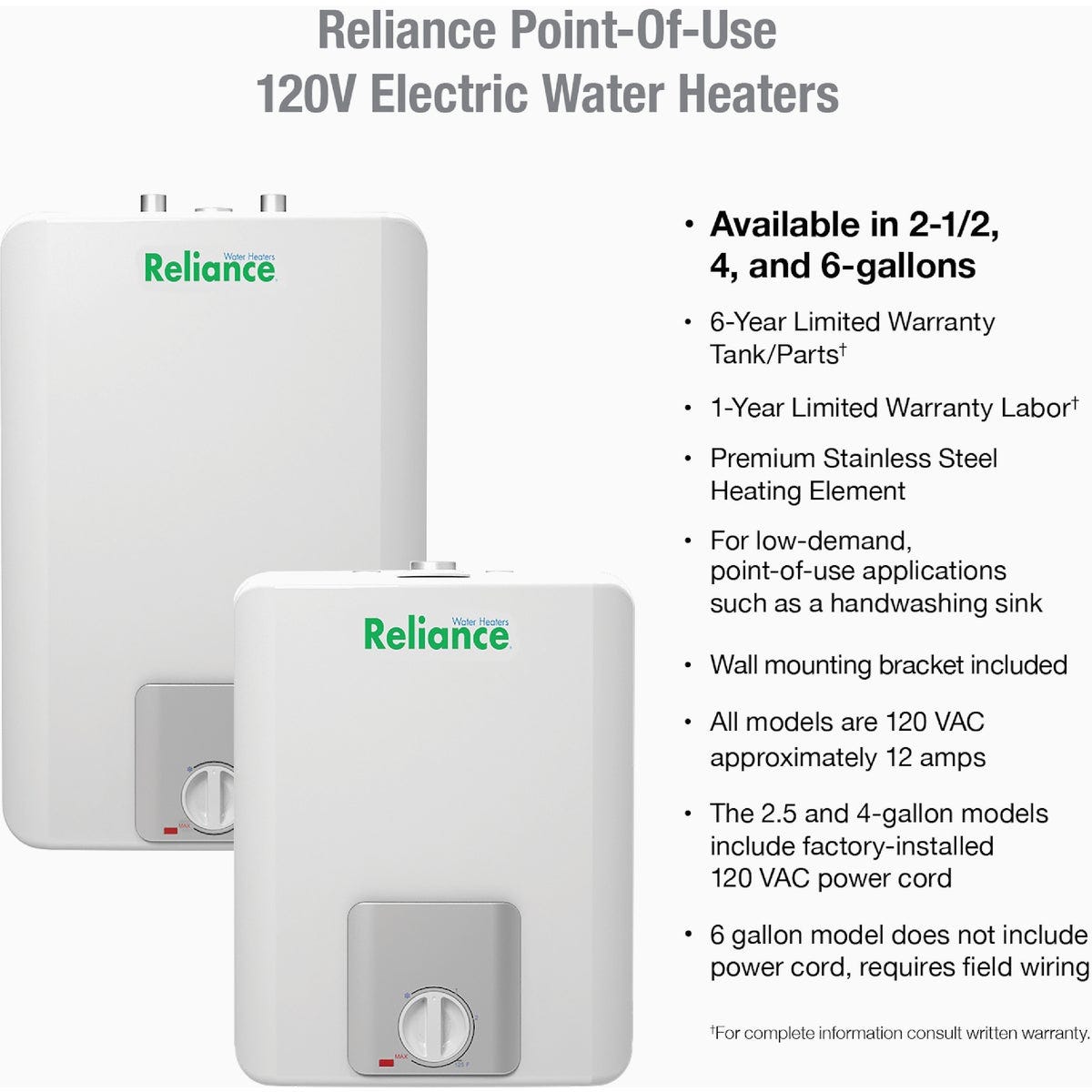

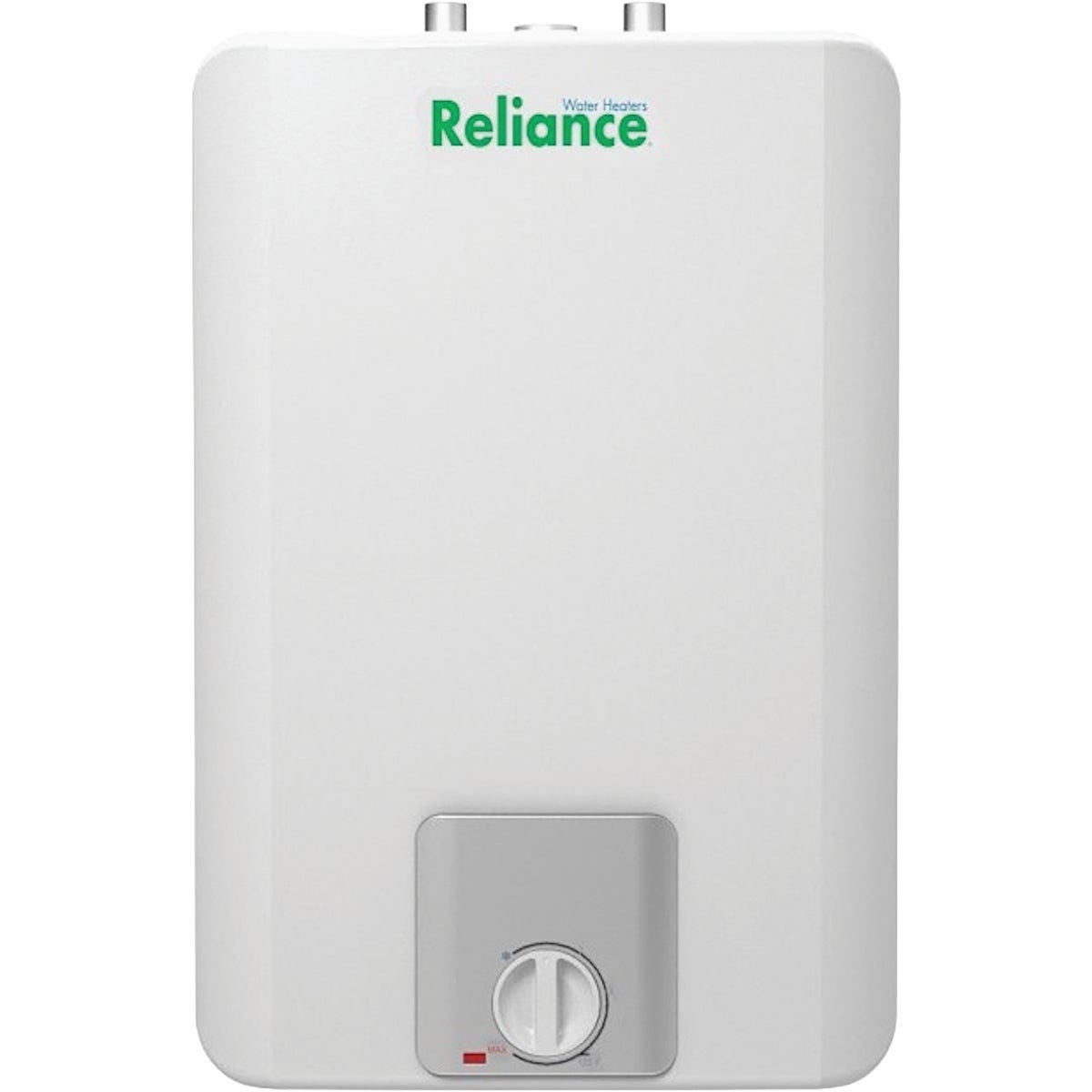

Reliance 2.5 Gal. 6 Year 1440-Watt Element Point-of-Use Electric Water Heater
Model #6-2-EOMS K UPC 00091193000861
239510
Tap to view
Product overview
Point of use electric water heater, 2.5 gallon capacity. Features factory installed Pex-lined 1/2 In. top inlet and outlet nipple and anode rod that helps extend tank life. No dip tube since the side bottom inlet eliminates need for it. Foam insulated. Drop-In T&P (Temperature & Pressure) relief valve. Meets NAECA (National Appliance Energy Conservation Act) codes. Glass lined tank. Inlet and outlet connections on top for easier installation in tight spaces. 12-amp. UL listed. 6-year limited warranty on the tank.
- Single 1440 watt 120V stainless steel heating element
- Includes: (1) 120V standard plugged cord and wall mounting bracket
- 6-year limited tank and parts warranty, 1-year labor warranty
Specifications
| Height (In.) | 14.5 |
| Width (In.) | 11.75 |
| Diameter (In.) | 10.375 |
| Nominal Tank Capacity (Gal.) | 2.5 |
| Fuel Type | Electric |
| Wattage | 1440 |
| Voltage | 120 |
| Household Size | 2 |
| Insulation Thickness (In.) | 0.75 |
| For Mobile Home Use | Yes |
| Warranty | 6 Year |
| Water Heater Profile | Point of Use |
| Water Connection Location | Top |
| Water Connection Size (In.) | 1/2 |
| Point of Use | Yes |
| Number of Elements | 1 |
| Application Type | Residential |
| Required Volt Connection | 120 |
| Brand | Reliance |
| UPC | 00091193000861 |
| Product type | Electric Water Heater |
