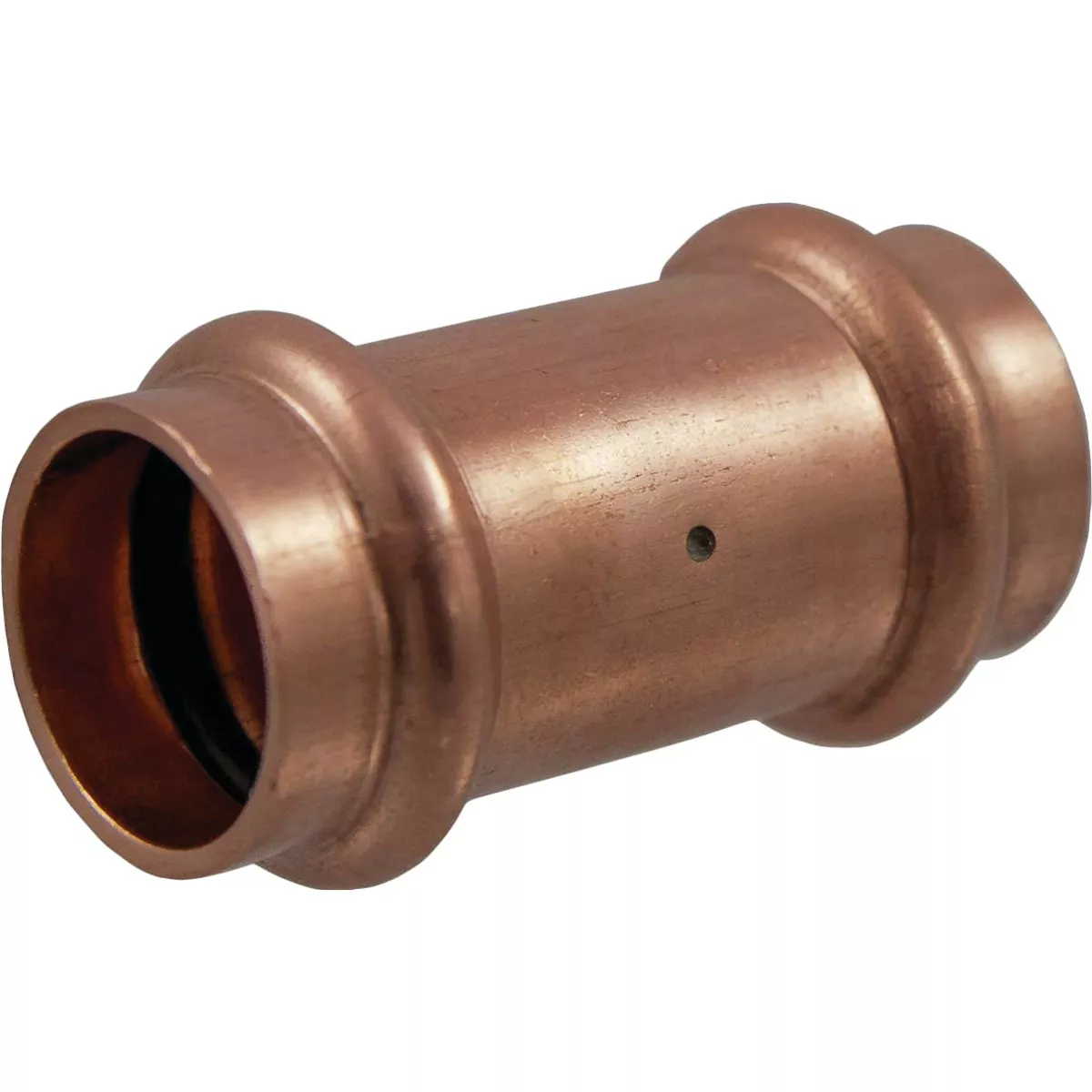

NIBCO 3/4 In. x 3/4 In. Press Copper Coupling with Stop (10-Pack)
Tap to view
Product overview
The NIBCO Press System copper coupling features an inboard bead and EPDM O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, watertight seal in seconds with no flame, solder or flux. The coupling has press connections and a dimple tube stop. The fitting provides a method to connect two lengths of tube.
- Operating pressure 200 psi CWP max
- Operating emperature range: 20 F to 250 F
- Lead-free
- Dezincification resistant
- ASTM B75 Alloy C12200 Copper
- Complies with ASME B16/51 performance
- Third party certified to UPC
- Third party certified to the performance requirements of CSA MSE 13 and PS-117
Product manuals and information
Specifications
| Material | Copper |
| Type | With Stop |
| Size | 3/4 In. x 3/4 In. |
| Connection Type | Press |
| Fitting Size 1 | 3/4 In. |
| Fitting Size 2 | 3/4 In. |
| Connection Type 1 | Press |
| Connection Type 2 | Press |
| Fitting Type | Coupling |
| Brand | NIBCO |
| UPC | 00039923329578 |
