Product overview

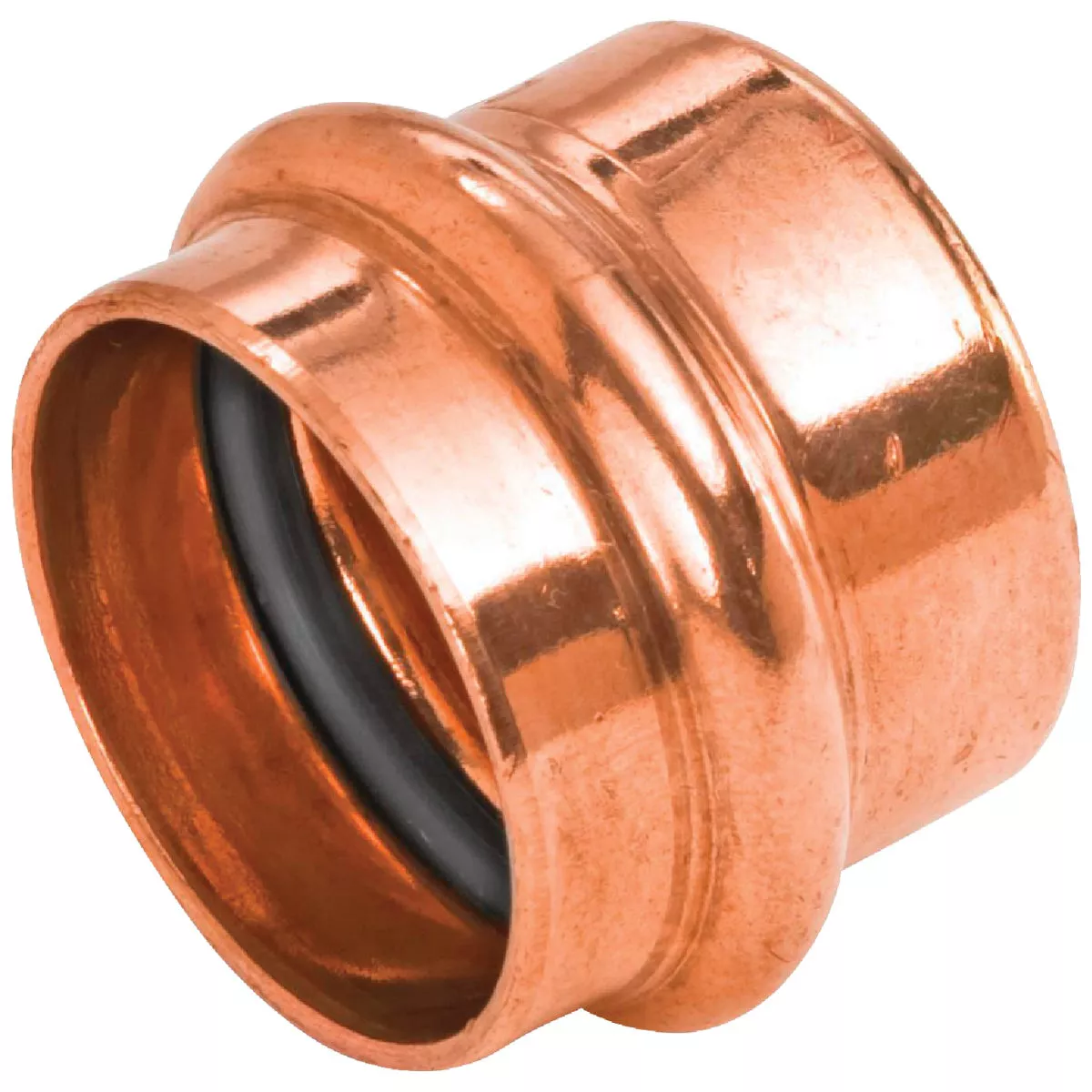

The NIBCO Press System copper cap features an inboard bead and EPDM O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, watertight seal in seconds with no flame, solder or flux. The cap has a press connection. The fitting is used to fit over the end of pipe to seal the end. NIBCO press fittings are the fastest, easiest way to join copper tubing.
- Operating pressure 200 psi CWP max
- Operating emperature range: 20 F to 250 F
- Lead-free
- Dezincification resistant
- ASTM B75 Alloy C12200 Copper
- Complies with ASME B16/51 performance
- Third party certified to UPC
- Third party certified to the performance requirements of CSA MSE 13 and PS-117
Specifications
| Material | Copper |
| Fitting Type | Cap |
| Single Fitting Size | 3/4 In. |
| Brand | NIBCO |
| UPC | 00039923307378 |
| Product type | Copper Cap |
