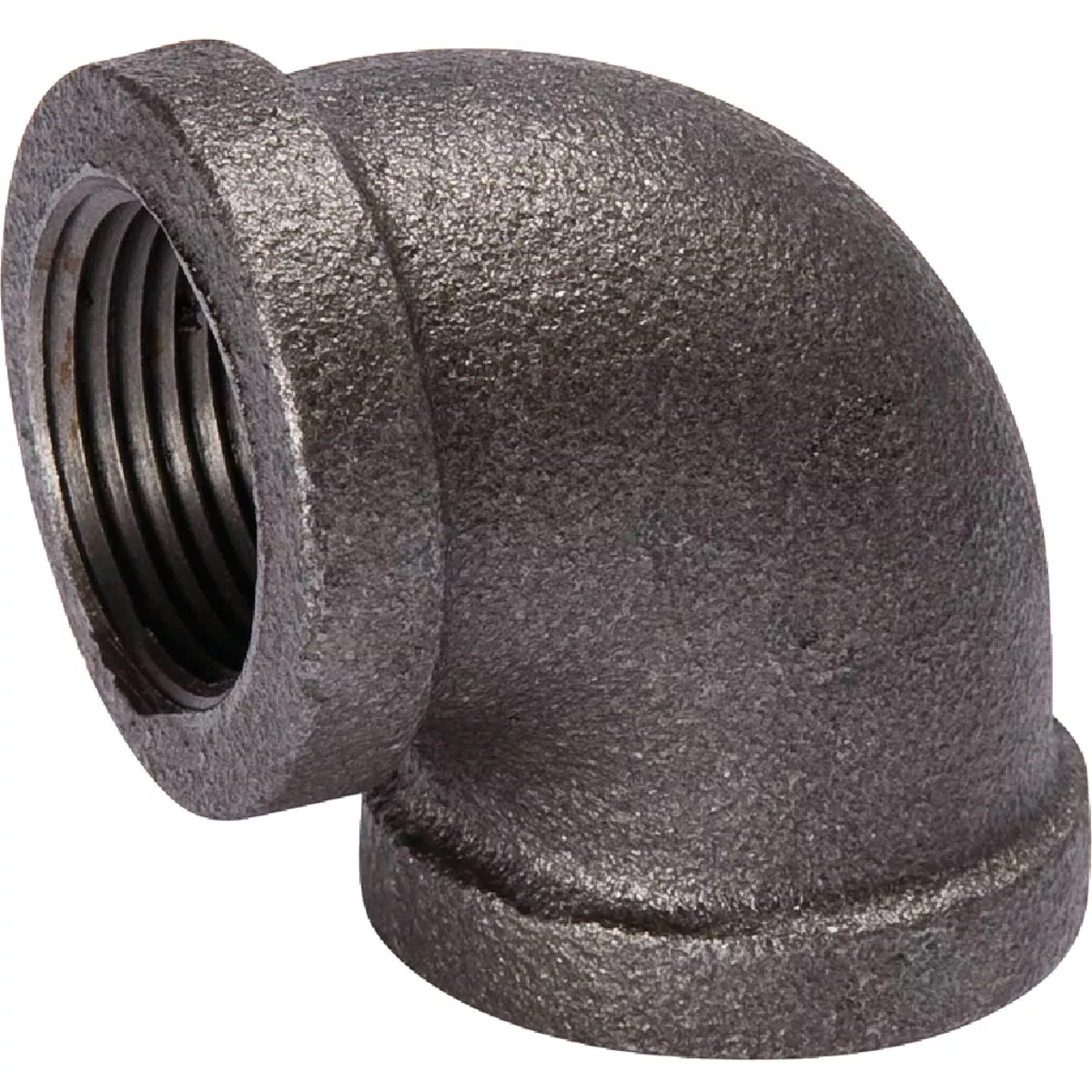

Southland 1 In. 90 Deg. Malleable Black Iron Elbow (1/4 Bend)
Model #520-005HN UPC 00032888406162
448095
Tap to view
Product overview
Malleable iron. 45 and 90 degrees fittings. Each fitting is individually flag tagged. Import. 100% inspected and quality tested. All fittings meet the following specifications: Material: ANSI/ASTM A-197 Dimensions: ANSI/ASME B.15.3, B16.14, B16.39. Threads: ANSI B1.20.1.
- Generally used for lubricant, oil, grease, LP gas, natural gases, steam and diesel
- 150 Lb. class malleable fittings
- Relative softness of metal helps provide a sure seal
- This fitting works up to 500 PSI at 150 Deg F
- Threaded ends comply with ANSI/ASME B1.20.1 standards
- Meet ASTM and ASME standards
Specifications
| Material | Malleable Iron |
| Finish | Black |
| Angle | 90 Deg. |
| Fitting Size 1 | 1 In. |
| Fitting Size 2 | 1 In. |
| Connection Type 1 | Female |
| Connection Type 2 | Female |
| Fitting Type | Elbow |
| Brand | Southland |
| UPC | 00032888406162 |
| Product type | Black Iron Elbow |
