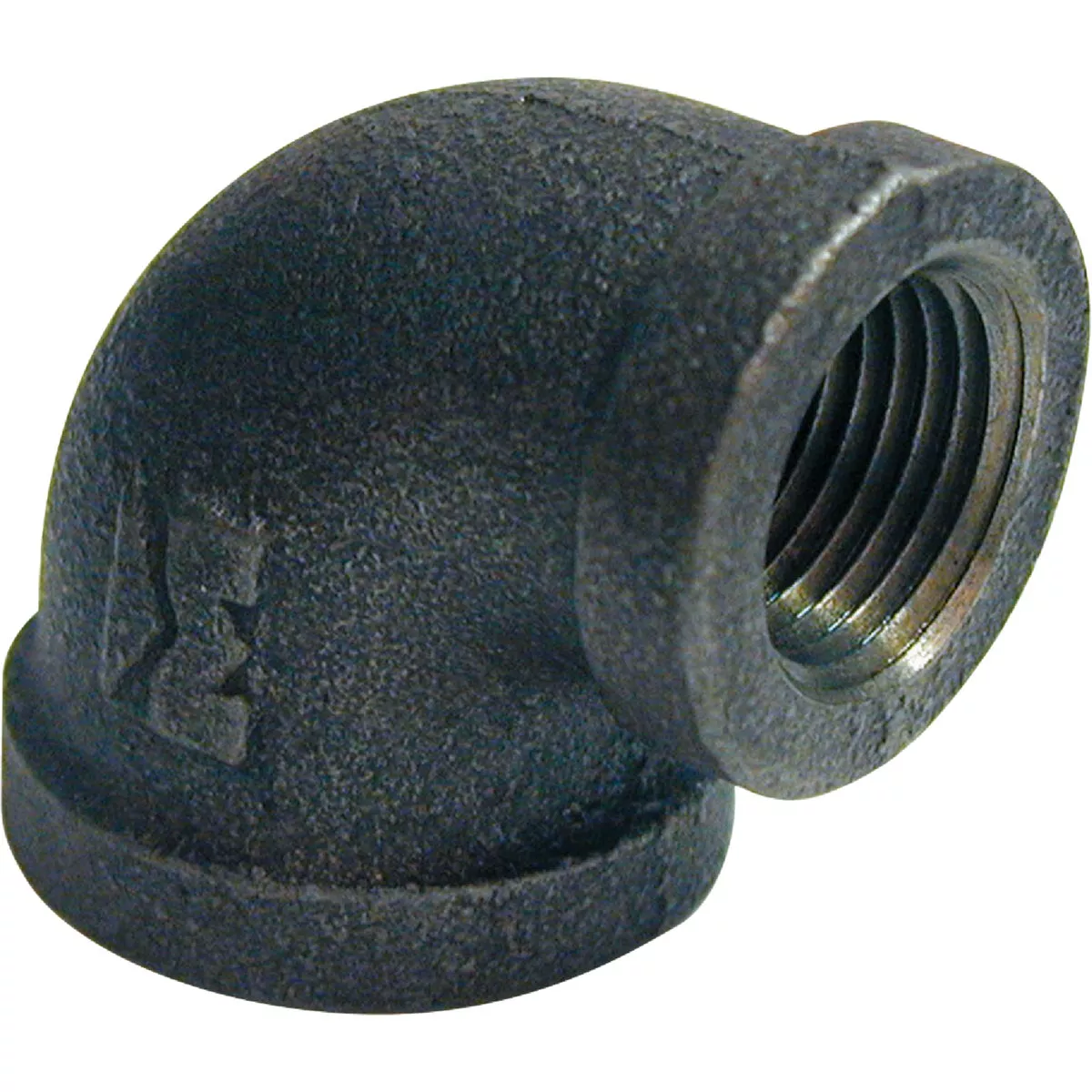

Southland 3/4 In. x 1/2 In. 90 Deg. Reducing Malleable Black Iron Elbow (1/4 Bend)
Model #520-143HN UPC 00032888406216
450216
Tap to view
Product overview
Black malleable iron. Straight and reducing sizes. Each fitting is individually flag tagged. Import. Mueller logo cast into body of each fitting. 100% inspected and quality tested. All fittings meet the following specifications: Material: ANSI/ASTM A-197 Dimensions: ANSI/ASME B.15.3, B16.14, B16.39. Threads: ANSI B1.20.1.
- Generally used for lubricant, oil, grease, LP gas, natural gases, steam and diesel
- 150 Lb. class malleable fittings
- Relative softness of metal helps provide a sure seal
- This fitting works up to 500 PSI at 150F
- Threaded ends comply with ANSI/ASME B1.20.1 standards
- Meet ASTM and ASME standards
Specifications
| Material | Malleable Iron |
| Type | Reducing |
| Finish | Black |
| Angle | 90 Deg. |
| Fitting Size 1 | 3/4 In. |
| Fitting Size 2 | 1/2 In. |
| Connection Type 1 | Female |
| Connection Type 2 | Female |
| Reducing Fitting | Yes |
| Fitting Type | Elbow |
| Brand | Southland |
| UPC | 00032888406216 |
| Product type | Black Iron Elbow |
