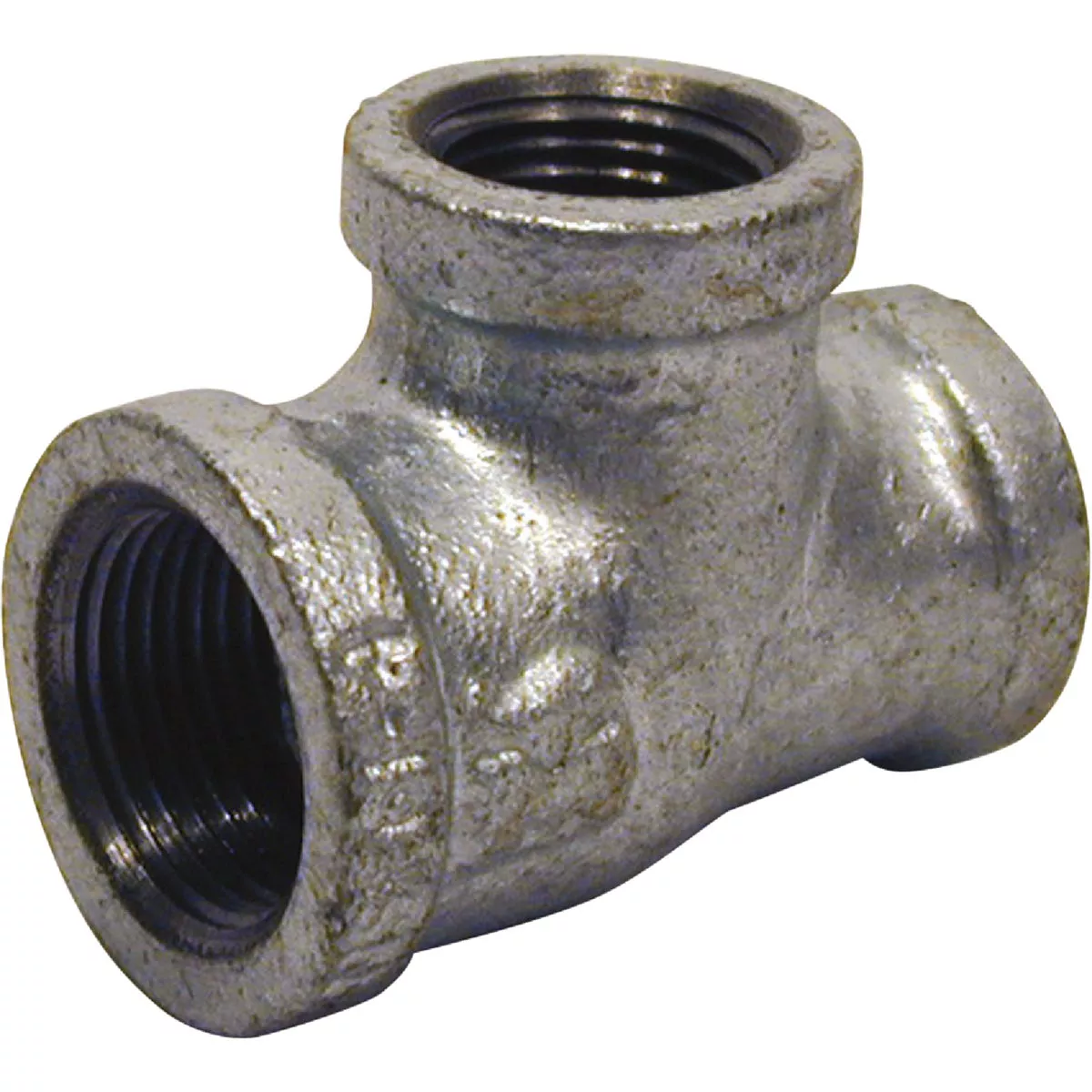

Southland 3/4 In. x 1/2 In. x 3/4 In. Malleable Iron Reducing Galvanized Tee
Model #510-434HP UPC 00032888209862
Item #421863
Tap to view
Product overview
Galvanized malleable iron. Reducing size. Each fitting is individually flag tagged. Import. Mueller logo cast into body of each fitting. 100% inspected and quality tested. All fittings meet the following specifications: Material: ANSI/ASTM A-197 Dimensions: ANSI/ASME B.15.3, B16.14, B16.39. Threads: ANSI B1.20.1. Sizes are shown in A side, B side, C middle sequence.
- Used for hot and cold water systems, refrigeration, sprinklers, compressed air, gasoline, diesel, alcohol, and some other applications where conducted fluid needs inner rust-proof protection
- Galvanized malleable iron construction with zinc coating
- 150 Lb. class malleable fittings
- This fitting works up to 500 PSI at 150F
- Relative softness of metal helps provide a sure seal
- Threaded ends comply with ANSI/ASME B1.20.1 standards
Specifications
| Material | Malleable Iron |
| Type | Reducing |
| Finish | Galvanized |
| Fitting Size 1 | 3/4 In. |
| Fitting Size 2 | 1/2 In. |
| Fitting Size 3 | 3/4 In. |
| Connection Type 1 | FIP |
| Connection Type 2 | FIP |
| Connection Type 3 | FIP |
| Fitting Type | Tee |
| Brand | Southland |
| UPC | 00032888209862 |
| Product type | Galvanized Tee |
