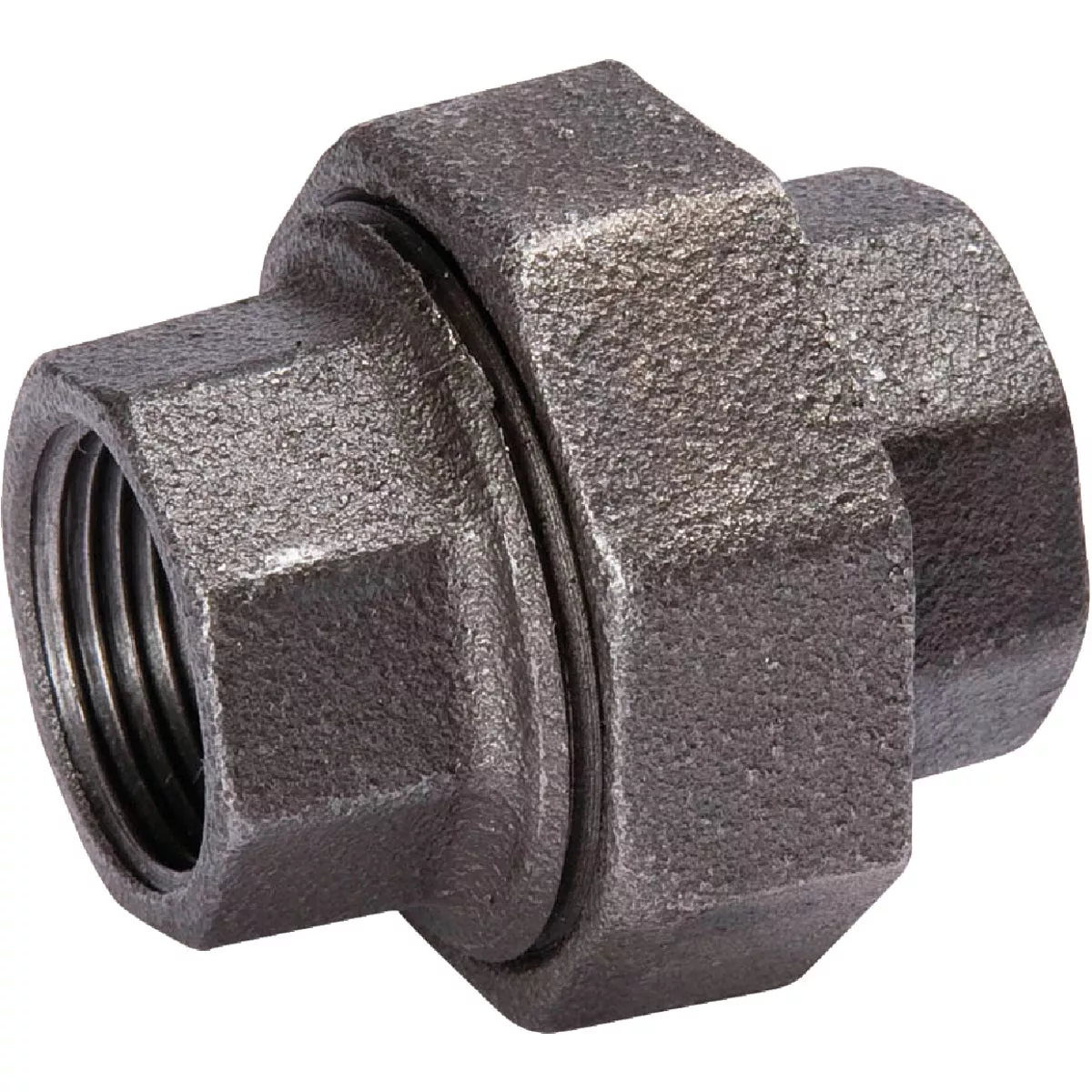

Southland 1/4 In. Ground Joint Malleable Black Iron Union
Model #521-701HN UPC 00032888406650
451677
Tap to view
Product overview
Black malleable iron ground joint. Inserted brass seat. Each fitting is individually flag tagged. Import. Mueller logo cast into body of each fitting. 100% inspected and quality tested. All fittings meet the following specifications: Material: ANSI/ASTM A-197 Dimensions: ANSI/ASME B.15.3, B16.14, B16.39. Threads: ANSI B1.20.1.
- Generally used for lubricant, oil, grease, LP gas, natural gases, steam and diesel
- 150 Lb. class malleable fittings
- Relative softness of metal helps provide a sure seal
- This fitting works up to 500 PSI at 150 Deg F
- Threaded ends comply with ANSI/ASME B1.20.1 standards
- Meet ASTM and ASME standards
Specifications
| Material | Malleable Iron |
| Type | Ground Joint |
| Finish | Black |
| Fitting Size 1 | 1/4 In. |
| Fitting Size 2 | 1/4 In. |
| Connection Type 1 | Female |
| Connection Type 2 | Female |
| Fitting Type | Union |
| Brand | Southland |
| UPC | 00032888406650 |
| Product type | Black Iron Union |
