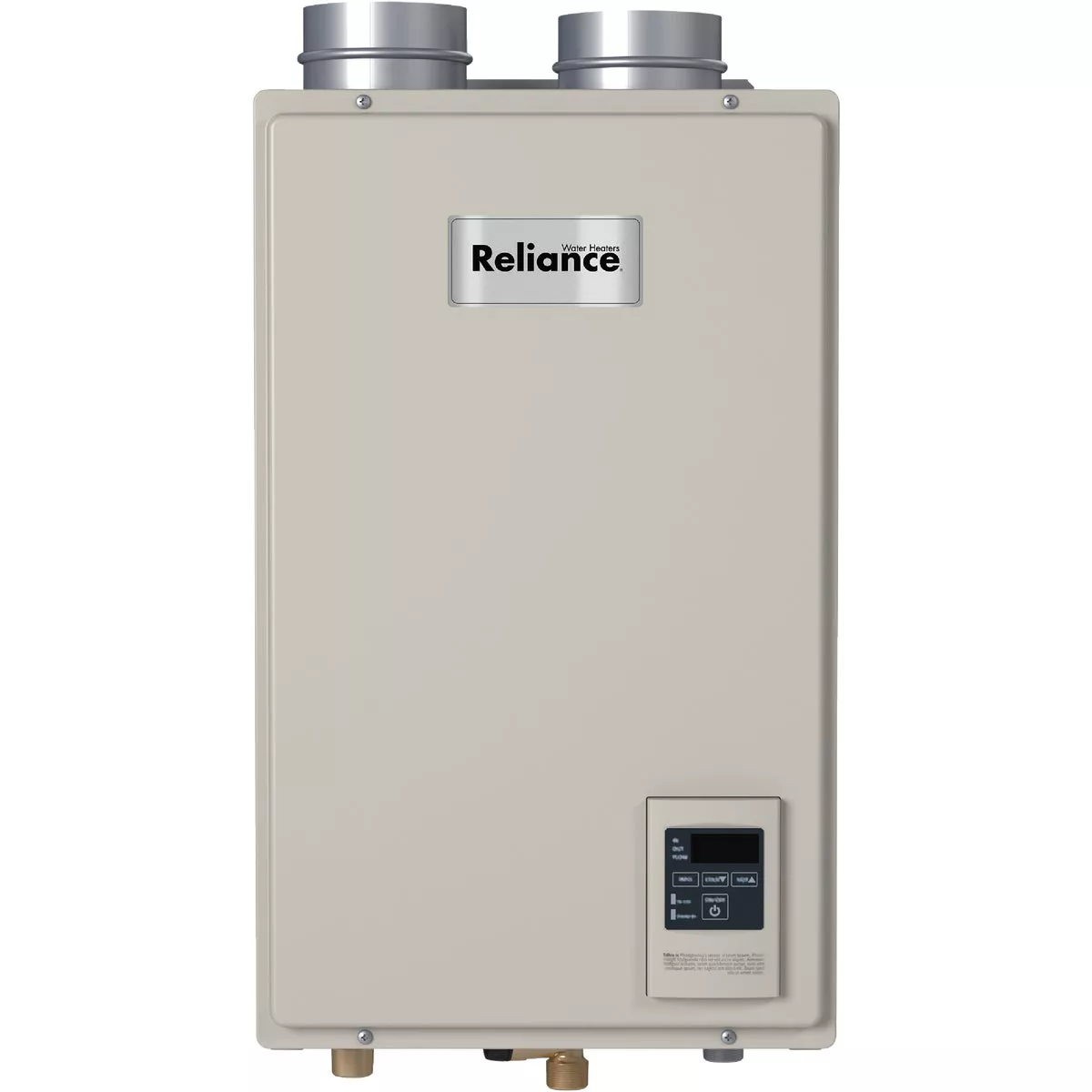

Reliance Condensing Indoor 120,000 BTU Ultra-Low NOx Tankless Liquid Propane (LP) Gas Water Heater
Model #TS-140-LIHItem #423561 UPC 00091193003923
Tap to view
Product overview
Propane gas tankless water heater, 120,000 BTU (British Thermal Unit) condensing, indoor, ultra low NOx. Heat exchanger is constructed of HRS35 commercial grade copper. Condensing technology provides significant energy cost savings. Includes a built-in temperature controller, advanced diagnostics and factory installed power cord. Water connection is located at the bottom of the tank. 3/4 In. connection size. 3 or 4 In. vent size. PVC (polyvinyl chloride), CPVC (chlorinated polyvinyl chloride), PP (polypropylene), ABS (acrylonitrile butadiene styrene) or stainless steel vent type. Energy Star qualified, 15 year warranty on heat exchanger, 5 year warranty on parts.
- Tankless water heater
- 120,000 BTU maximum input, 15,000 BTU minimum input
- No standing pilot
- Meets ultra low NOx CA and UT emission rules
- Built-in digital screen displaying temperature control and advance diagnostics
- Water pressure 15 to 150 psi, 40 psi or above recommended for maximum flow
Specifications
| Width | 13.9 In. |
| Voltage | 120 |
| Type | Residential Tankless |
| Capacity | Tankless |
| Wattage | 10 |
| BTU Rating | 120,000 |
| Style | Short |
| Family Size | 2 |
| Application Type | Residential |
| Width (In.) | 13.875 |
| Height (In.) | 22.875 |
| Depth (In.) | 10.8 |
| Water Heater Profile | Short |
| Nominal Tank Capacity (Gal.) | Tankless |
| Brand | Reliance |
| UPC | 00091193003923 |
| Product type | Gas Water Heater |
