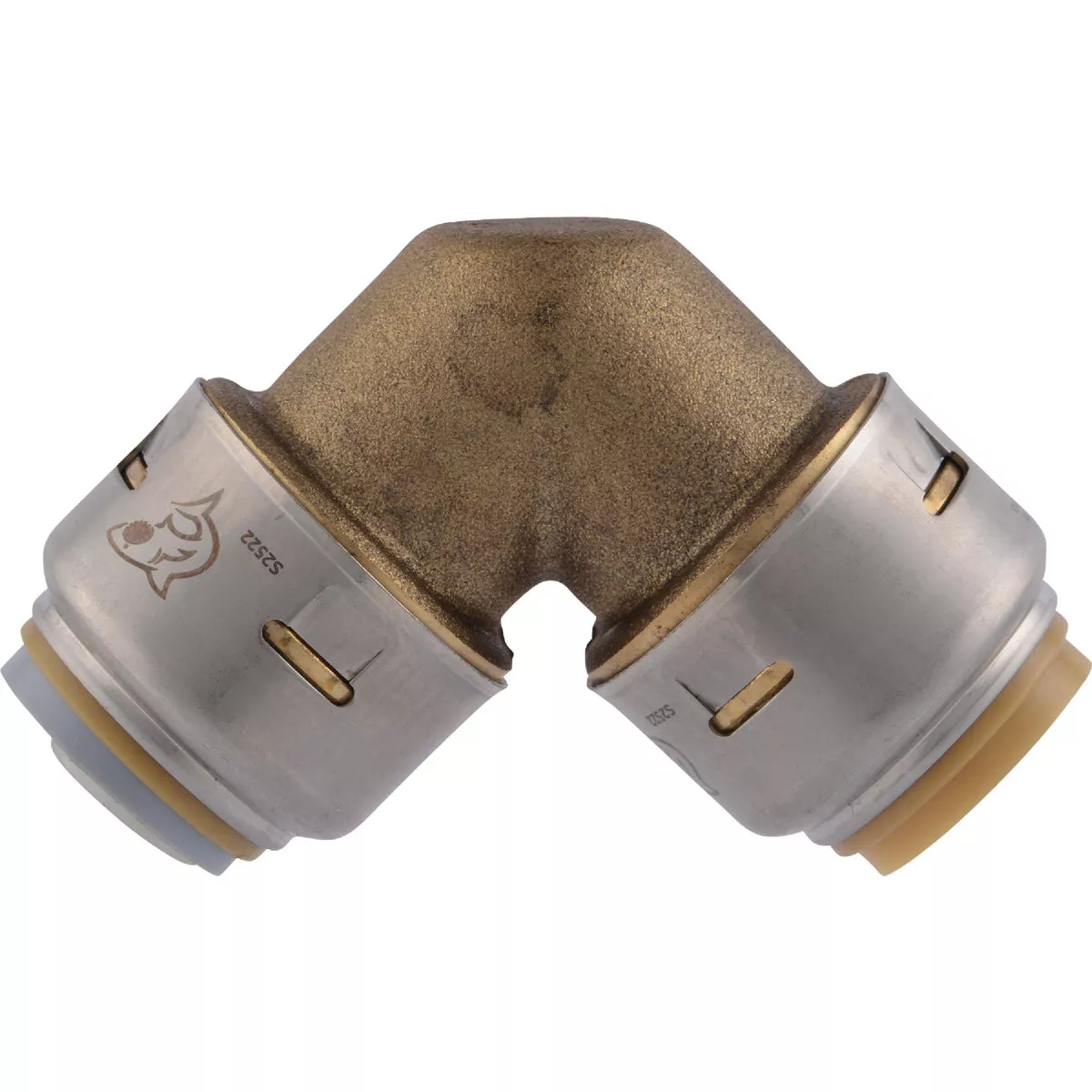

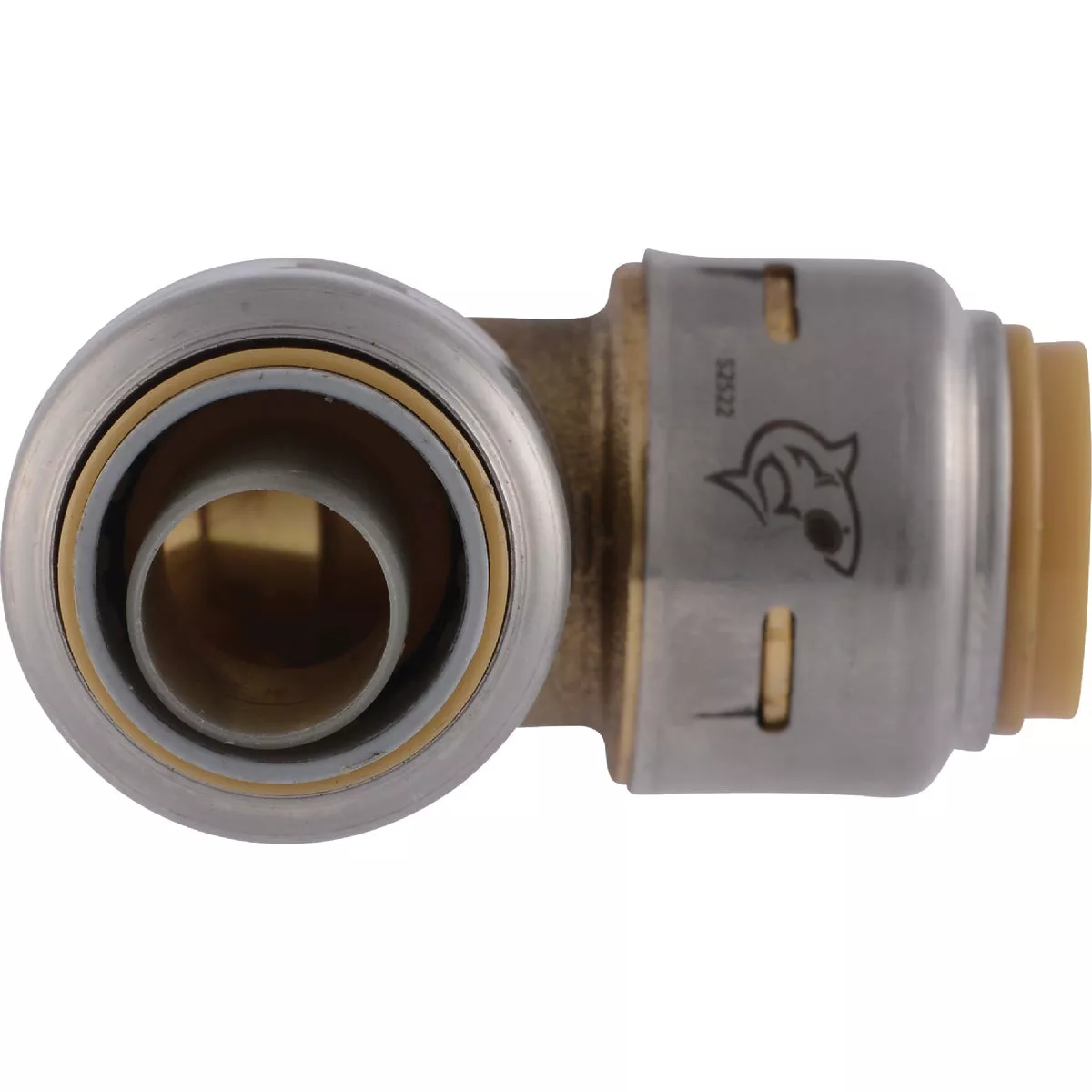

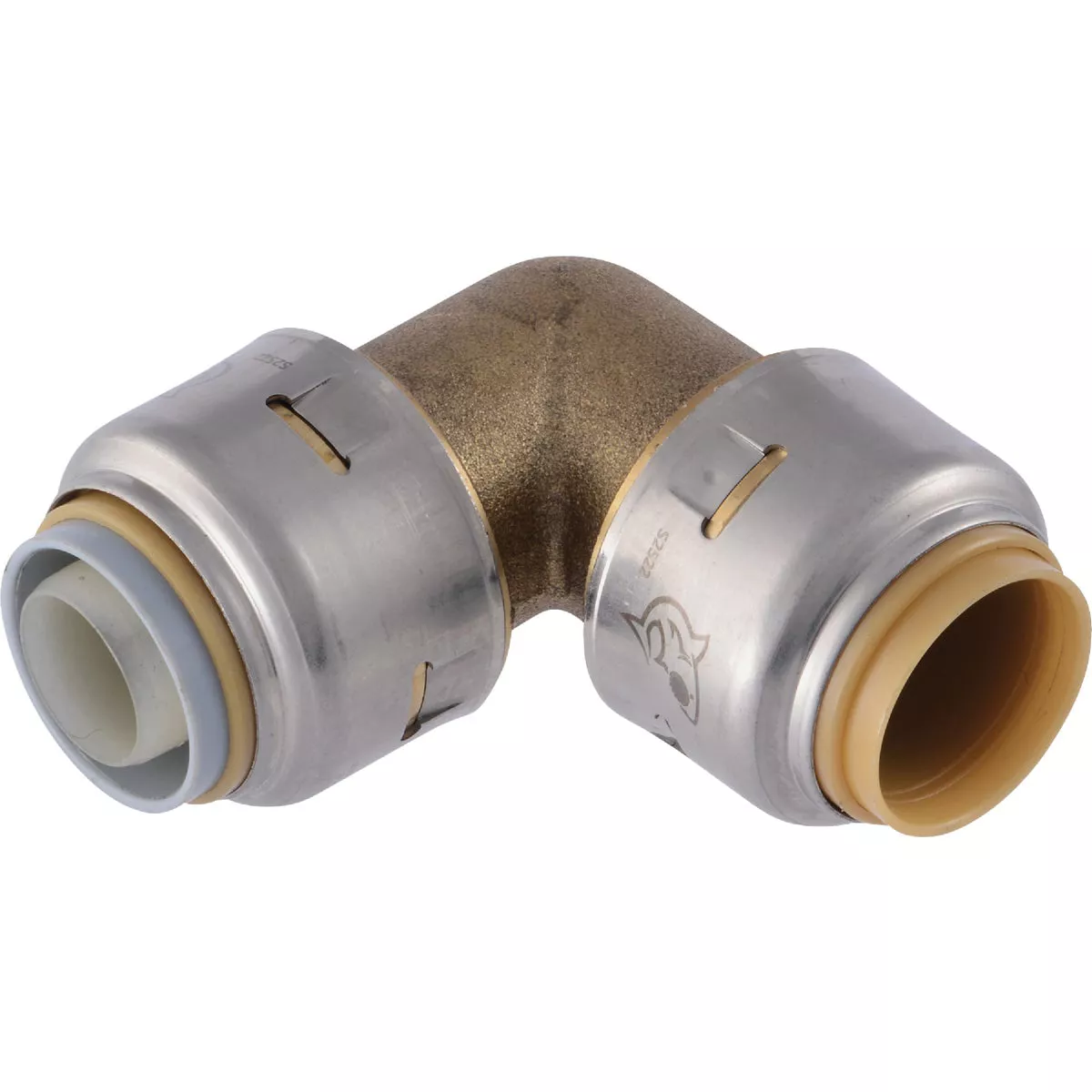

SharkBite 1/2 In. CTS x 1/2 In. Polybutylene 90 Deg. Push-to-Connect Conversion Brass Elbow
Model #UR4248AItem #428024UPC 00697285059948
Tap to view
Product overview
SharkBite Max push-to-connect fittings allow you make pipe connections with half the insertion effort while withstanding double the burst pressure. Featuring a newly designed stainless-steel retainer, SharkBite Max delivers additional strength and durability while providing a 250 psi pressure rating. Color-coordinated collars on the Brass Push Polybutylene 90 Transition Elbow help to identify which side goes with which pipe - the gray collar end is compatible with polybutylene pipe and the tan collar end is compatible with PEX, copper, CPVC, PE-RT and HDPE pipe. Innovative push-to-connect technology for quick and easy installation, even in tight spaces. Fittings are certified to 200 F, 250 psi. Third-party listed, compliant with applicable U.S. and Canadian plumbing codes. 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT. Five-year warranty when properly installed with HDPE SDR-9. Patented technology.
- No special tools, crimping, glue or soldering required
- Faster install time and ideal for working it tight spaces
- Can be installed in wet lines
- Approved for underground and behind-the-wall applications with no access panels (wrapping required when burying underground)
- Remove using a Disconnect Clip or Disconnect Tongs (both sold separately)
- Rated for 200 psi and 200F (93C)
- 25-year warranty
Specifications
| Material | Brass |
| For Use With | Underground/Behind-The-Wall |
| Type | Push Elbow |
| Angle | 90 Deg. |
| Pressure Rating | 200 psi |
| Temperature Rating | 200 F |
| Fitting Size 1 | 1/2 In. |
| Fitting Size 2 | 1/2 In. |
| Connection Type 1 | Barb |
| Connection Type 2 | FIP |
| Pressure Rating (psi) | 200 |
| Maximum Working Temperature (F) | 200 |
| Brand | SHARKBITE |
| UPC | 00697285059948 |
| Product type | Brass Elbow |
Product manuals and information
- Buying Guides
- Related Product Articles
- California Prop-65 WarningWARNING:
This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
WARNING:This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
- Request Safety Data Sheet (SDS)
