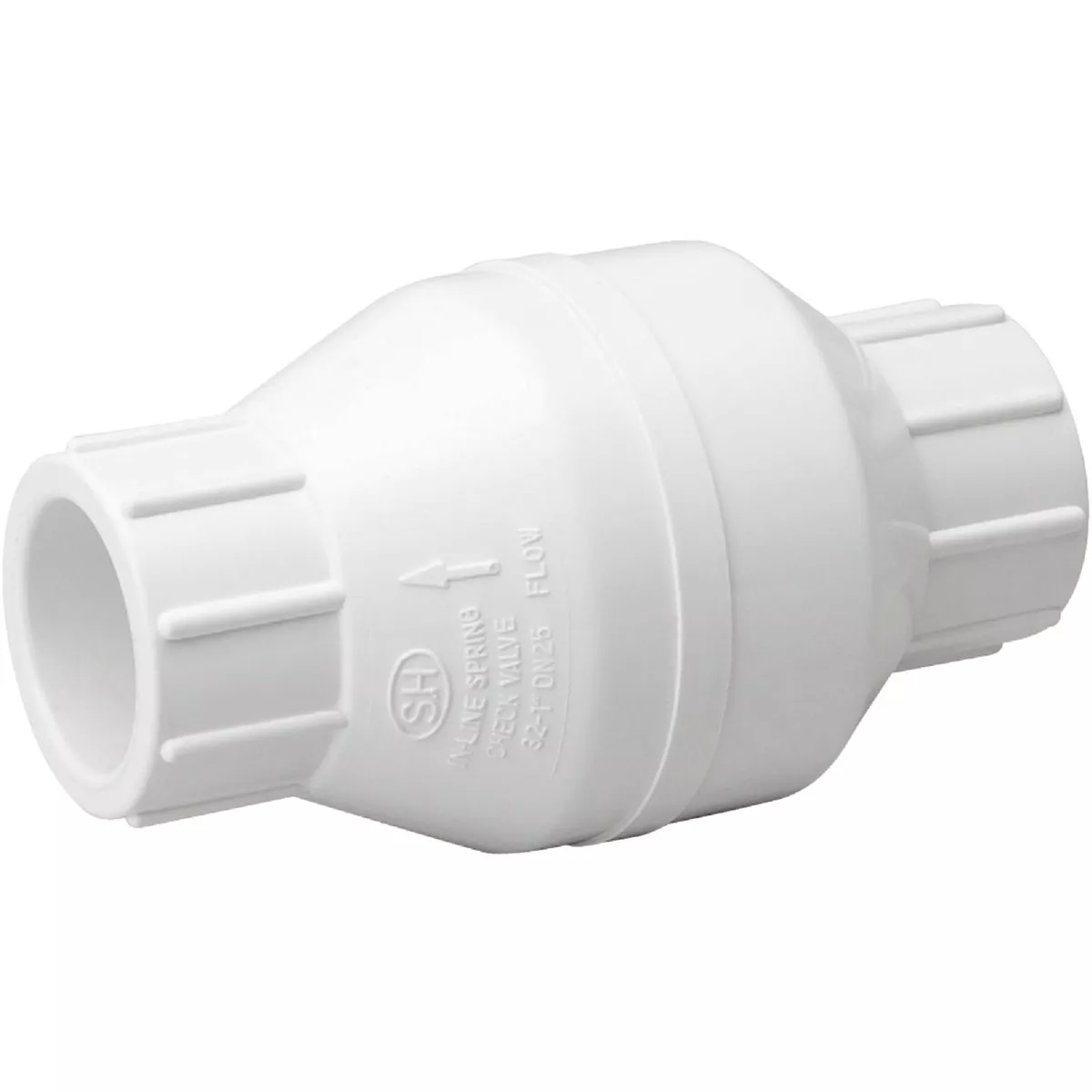

ProLine PVC 1 In. FIP x 1 In. FIP In-Line Check Valve

Model #101-105
424168
UPC 00032888011052
Tap to view
In-store price may vary. Not all products available at all stores.

    Product overview

    Permit water to flow in one direction within a line with the ProLine Series PVC Check Valve. It acts as a backflow prevention device to prevent water from backing up into the fresh water supply. A steel-spring poppet with a rubber o-ring is the internal mechanism preventing water backflow. An arrow is molded onto the valve body to ensure correct installation for proper flow control.
    • Rated for 200 PSI at 73F
    • Fits both Schedule 40 and Schedule 80 PVC pipe
    • Spring loaded poppet mechanism prevents backflow
    • Stainless steel spring for corrosion resistance and longer life
    • O-ring provides a water-tight seal
    • Not to be used for compressed air
    • Threaded ends comply with ANSI B1.20.1
    Size1 In.
    MaterialPVC
    TypeSpring Loaded
    Pressure Rating200 psi
    Temperature Rating113 F
    ScheduleSchedule 40
    BrandProLine Series
    UPC00032888011052
    Product typeCheck Valve
