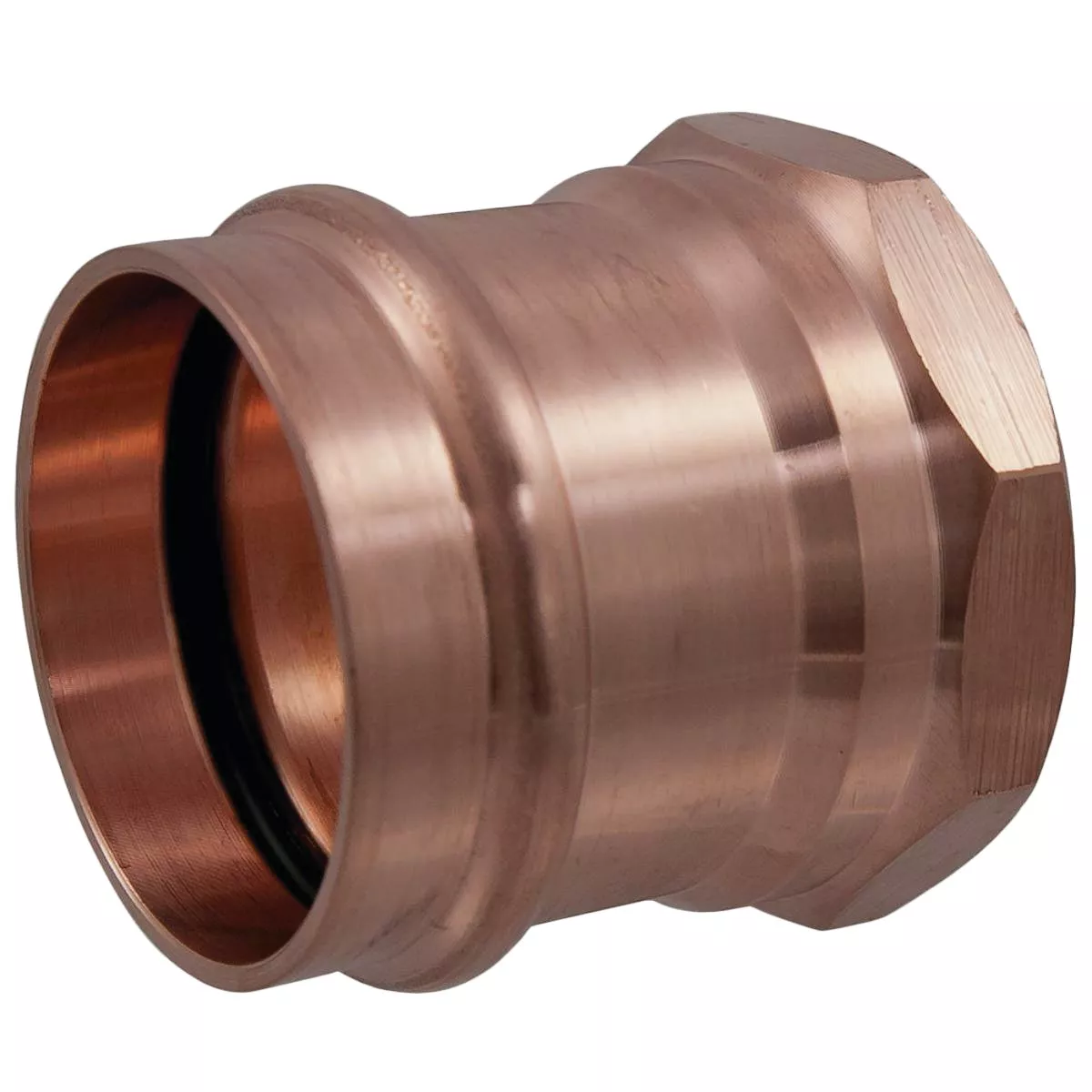

NIBCO 1 In. Press x 1 In. Female Copper Adapter
Model #9025250PCUItem #438284UPC 00039923293428
Tap to view
Product overview
The NIBCO Press System copper female adapter features an inboard bead and EPDM O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, permanent, watertight seal in seconds, with no flame, solder or flux. The female adapter has a press connection and female NPT thread. These fittings provide a method for adapting a press connection to a threaded connection.
- Operating pressure 200 psi CWP max
- Operating emperature range: 20 F to 250 F
- Lead-free
- Dezincification resistant
- ASTM B75 Alloy C12200 Copper
- Complies with ASME B16/51 performance
- Third party certified to UPC
- Third party certified to the performance requirements of CSA MSE 13 and PS-117
Specifications
| Material | Copper |
| Size | 1 In. Press x 1 In. FIP |
| Connection Type | Press x Female |
| Fitting Size 1 | 1 In. |
| Fitting Size 2 | 1 In. |
| Connection Type 1 | Press |
| Connection Type 2 | FIP |
| Brand | NIBCO |
| UPC | 00039923293428 |
| Product type | Copper Adapter |
