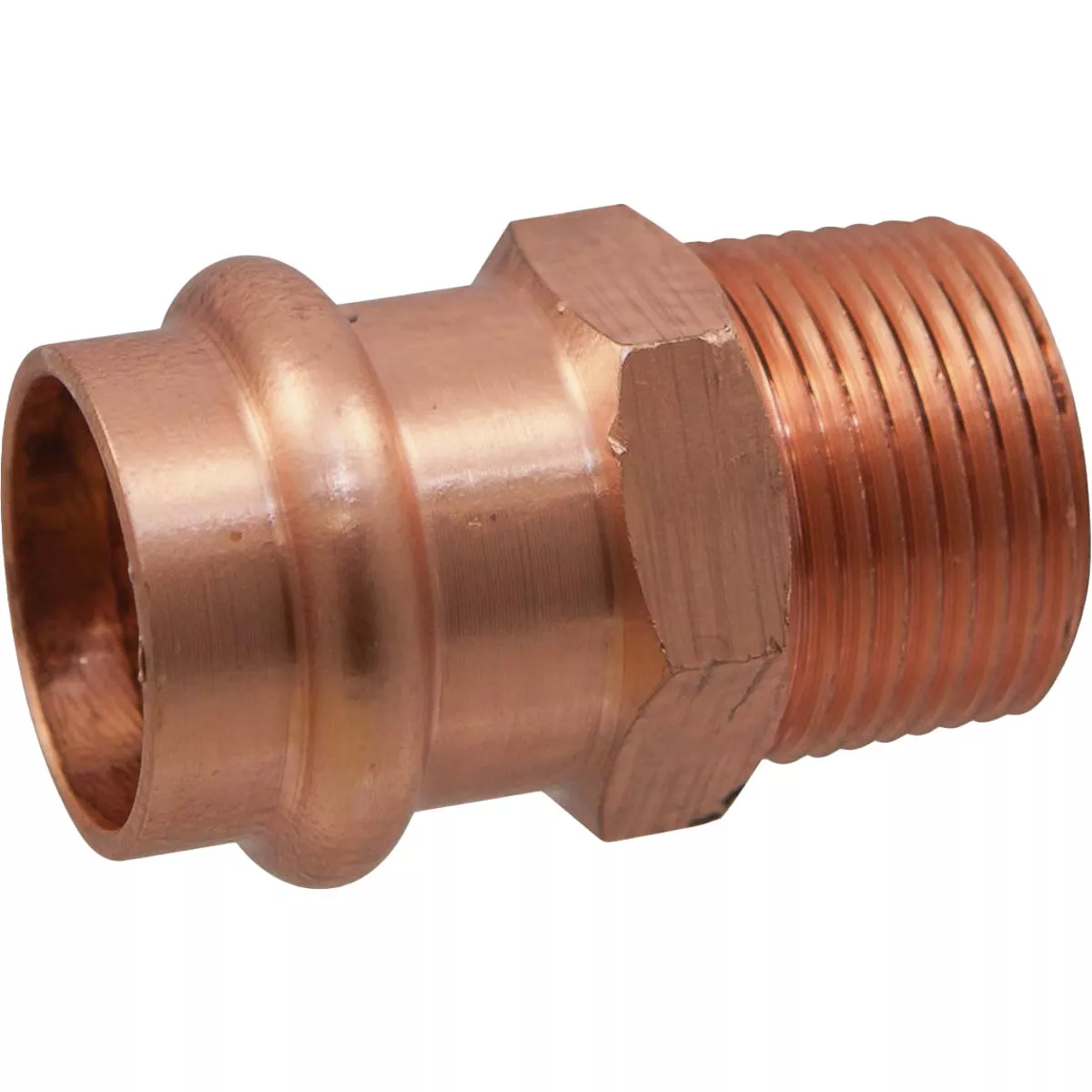

NIBCO 1/2 In. Press x 1/2 In. Male Copper Adapter
Model #9030600PCUItem #440246UPC 00039923308092
Tap to view
Product overview
The NIBCO Press System copper male adapter features an inboard bead and EPDM O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, watertight seal in seconds, with no flame, solder or flux. The male adapter has a press connection and male NPT thread. The fitting provides a method for adapting a press connection to a threaded connection.
- Operating pressure 200 psi CWP max
- Operating emperature range: 20 F to 250 F
- Lead-free
- Dezincification resistant
- ASTM B75 Alloy C12200 Copper
- Complies with ASME B16/51 performance
- Third party certified to UPC
- Third party certified to the performance requirements of CSA MSE 13 and PS-117
Specifications
| Material | Copper |
| Size | 1/2 In. Press x 1/2 In. MIP |
| Connection Type | Press x Male |
| Fitting Size 1 | 1/2 In. |
| Fitting Size 2 | 1/2 In. |
| Connection Type 1 | Press |
| Connection Type 2 | MIP |
| Brand | NIBCO |
| UPC | 00039923308092 |
| Product type | Copper Adapter |
