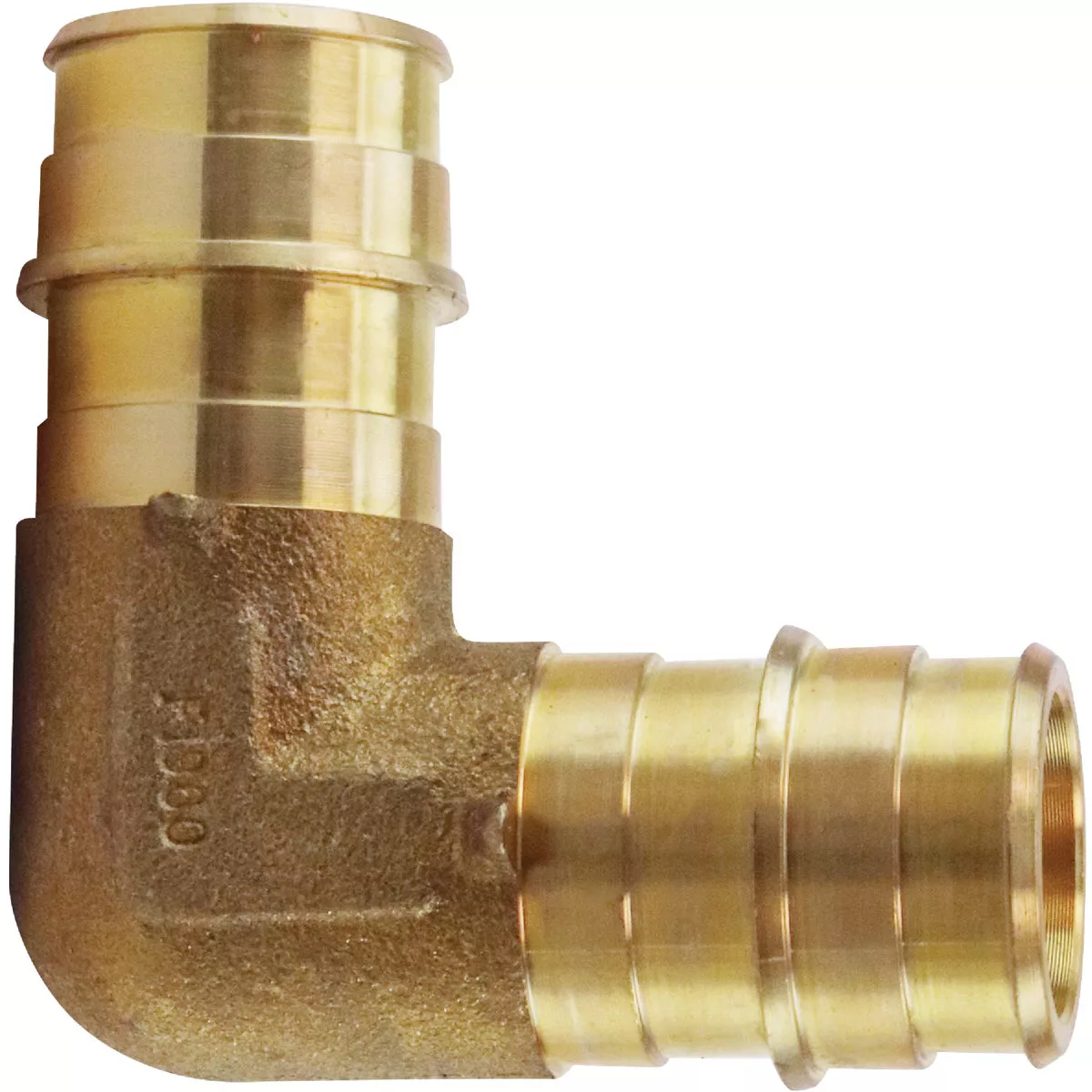

Apollo Retail 3/4 In. x 3/4 In. Barb 90 Deg. Brass Expansion PEX-A Elbow

Model #EPXE3434 Item #442928 UPC 00850003465159
Tap to view
Product overview
The Apollo Retail Expansion PEX 3/4" Brass PEX-A Barb 90 Degree Elbow. Lead Free Brass. Used to make a right angle turn in a plumbing run. Is simple to install. Apollo Retail Expansion PEX barb fittings are a key component to one of the most economical potable water piping systems. Also capable of integration into hydronic heating systems, Apollo Expansion PEX fittings must be secured into place with Apollo Expansion PEX sleeves or comparable expansion-type sleeve or ring (all sold separately). The Apollo Expansion PEX system is a comprehensive piping system comprised of lead free brass fittings, poly alloy fittings, manifolds, valves, fasteners, tools and tubing designed for implementation in water delivery systems, simple or complex. A cold-expansion tool (sold separately) is required for installation.
  • Compatible with Uponor and Wirsbo PEX piping systems
  • Larger internal diameter of Apollo expansion PEX fittings results in a 25% greater flow rate within the system
  • Cold-expansion tool (sold separately) is required for installation
  • Must secured in place using Apollo Expansion PEX sleeves or other PEX-A expansion sleeves/rings
  • NSF Listed
  • Barb x barb connection for PEX-A plumbing systems
  • Go/no-go gauges are never required
  • To ensure secure connections every time, fittings cannot be dry fit
  • Rated to 200 F and 200 psi
  • Item is not compatible with PEXb pipe, crimp-style (ASTM 1807) or pinch clamp (ASTM F2098) piping systems

Product manuals and information

Material Brass
Size 3/4 In. x 3/4 In. Barb
Angle 90 Deg.
Fitting Size 1 3/4 In.
Fitting Size 2 3/4 In.
Connection Type 1 Barb
Connection Type 2 Barb
PEX Type A
Fitting Type Elbow
Brand Apollo Retail
UPC 00850003465159
