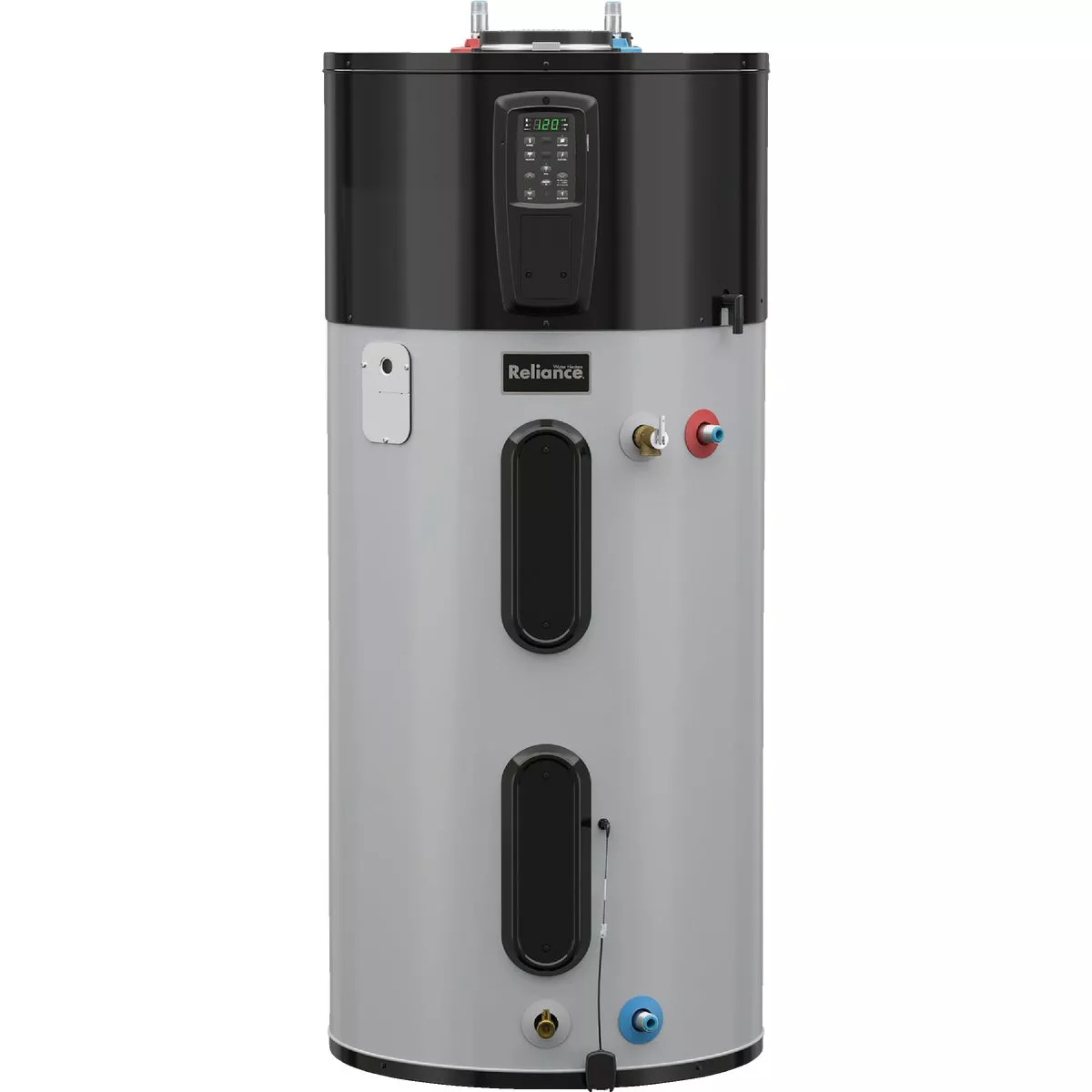

Reliance 66 Gal. Tall Smart Electric Heat Pump Hybrid Water Heater
Model #10-66-DHPTSItem #447217UPC 00091193067697
Tap to view
Product overview
The Smart Hybrid Electric Heat Pump Water Heater, Dual 4500 Elements, the Highest efficiency, Top & Front Water Connections for installation versatility, Zero clearance design on sides and back fits into more spaces, Quietest operation at just 45 dBA, iCOMM; connectivity with built-in WiFi and Bluetooth, Integrated leak detection and compatible with accessory automatic water shutoff valve, Enhanced ducting capabilities, Smart anode that adapts to local water conditions to protect and extend the life of the water heater and alerts when it needs to be replaced, ENERGY STAR; certified for many state and local utility rebates, NEEA Tier 4 certified, 10 Year Warranty on Water Heater & Parts, 1 year Labor Warranty.
- 10-year limited tank & parts warranty, 1-year labor warranty
- Best in class noise level 51 dBa
- Copper sheathed backup heating elements dual
- Advanced electronic control system provides large LCD display for ease of use, precise temperature control and operational status
- Four Operating Modes: High Efficiency (heat pump only), Hybrid (heat pump plus electric), Conventional (electric only), Vacation
- Glass-lined tank with anode rod protects against corrosion
- Environmentally-Friendly Non-CFC foam insulation
- Factory-installed temperature & pressure (T&P) relief valve
Product manuals and information
- Buying Guides
- Related Product Articles
- California Prop-65 WarningWARNING:
Cancer and Reproductive Harm - www.p65warnings.ca.gov
WARNING:Cancer and Reproductive Harm - www.p65warnings.ca.gov
- Request Safety Data Sheet (SDS)
Specifications
| Voltage | 240 |
| Type | Smart Hybrid Electric |
| Warranty | 10 Year |
| Capacity | 66 Gal. |
| Height | 61-1/2 In. |
| Wattage | 4500 |
| Fuel Type | Electric |
| Uniform Energy Factor | 4.02 |
| Diameter | 26-1/2 In. |
| Efficiency Mode Energy Factor | 4.02 |
| Hybrid Mode Energy Factor | 3.7 |
| Electric Mode Energy Factor | 4.02 |
| Efficiency Mode Recovery Rate | 21 |
| Hybrid Mode Recovery Rate | 21 |
| Electric Mode Recovery Rate | 21 |
| Tank Capacity | 66 Gal. |
| Application Type | Residential |
| Height (In.) | 61.5 |
| Diameter (In.) | 26.5 |
| Nominal Tank Capacity (gallons) | 66 |
| Insulation Thickness (In.) | 2 |
| Tank Warranty | 10 Year |
| Water Heater Profile | Tall |
| Wattage (watts) | 4500 |
| Nominal Tank Capacity (Gal.) | 66 |
| Water Connection Size (In.) | 3/4 |
| Leak Detection | Yes |
| Water Connection Location | Side & Top |
| Brand | Reliance |
| UPC | 00091193067697 |
| Product type | Hybrid Water Heater |
