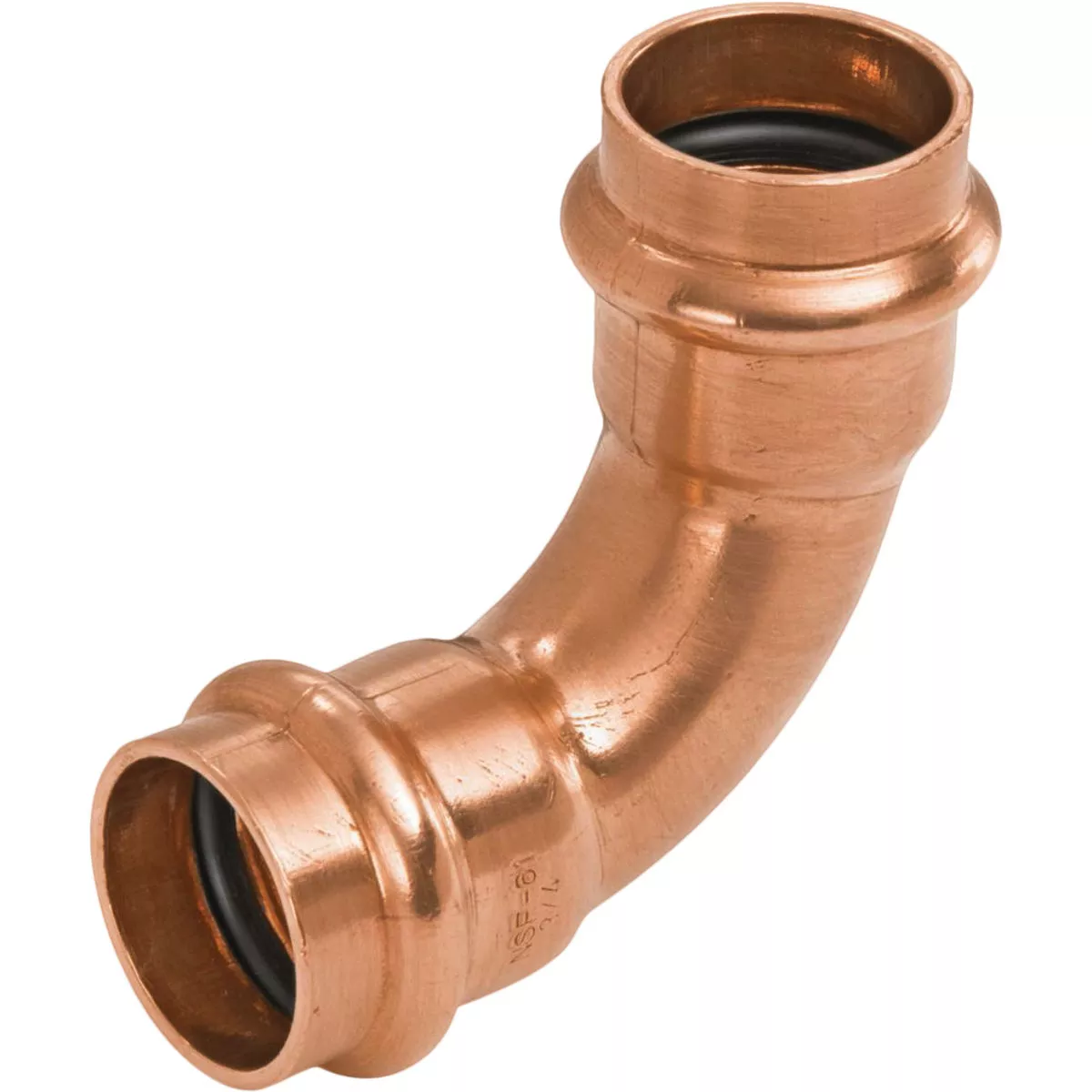

NIBCO 1 In. 90 Deg. Press Copper Elbow (1/4 Bend) (10-Pack)
Model #9055751PCCPItem #465225UPC 00039923385987
Tap to view
Product overview
The NIBCO Press System copper 90-degree elbow features an inboard bead and EPDM O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, watertight seal in seconds with no flame, solder or flux. The elbow has press connections. The fitting provides a method of changing the pipeline direction by 90 degrees.
- Operating pressure 200 psi CWP max
- Operating emperature range: 20 F to 250 F
- Lead-free
- Dezincification resistant
- ASTM B75 Alloy C12200 Copper
- Complies with ASME B16/51 performance
- Third party certified to UPC
- Third party certified to the performance requirements of CSA MSE 13 and PS-117
Specifications
| Material | Copper |
| Size | 1 In. x 1 in. |
| Angle | 90 Deg. |
| Connection Type | Press |
| Fitting Size 1 | 1 In. |
| Fitting Size 2 | 1 In. |
| Connection Type 1 | Press |
| Connection Type 2 | Press |
| Fitting Type | Elbow |
| Brand | NIBCO |
| UPC | 00039923385987 |
| Product type | Copper Elbow |
