SharkBite 3/8 In. (1/2 In. OD) Push-to-Connect Brass End Push Cap

Model #U512LFAItem #467195UPC 00697285466067
Shop SHARKBITE

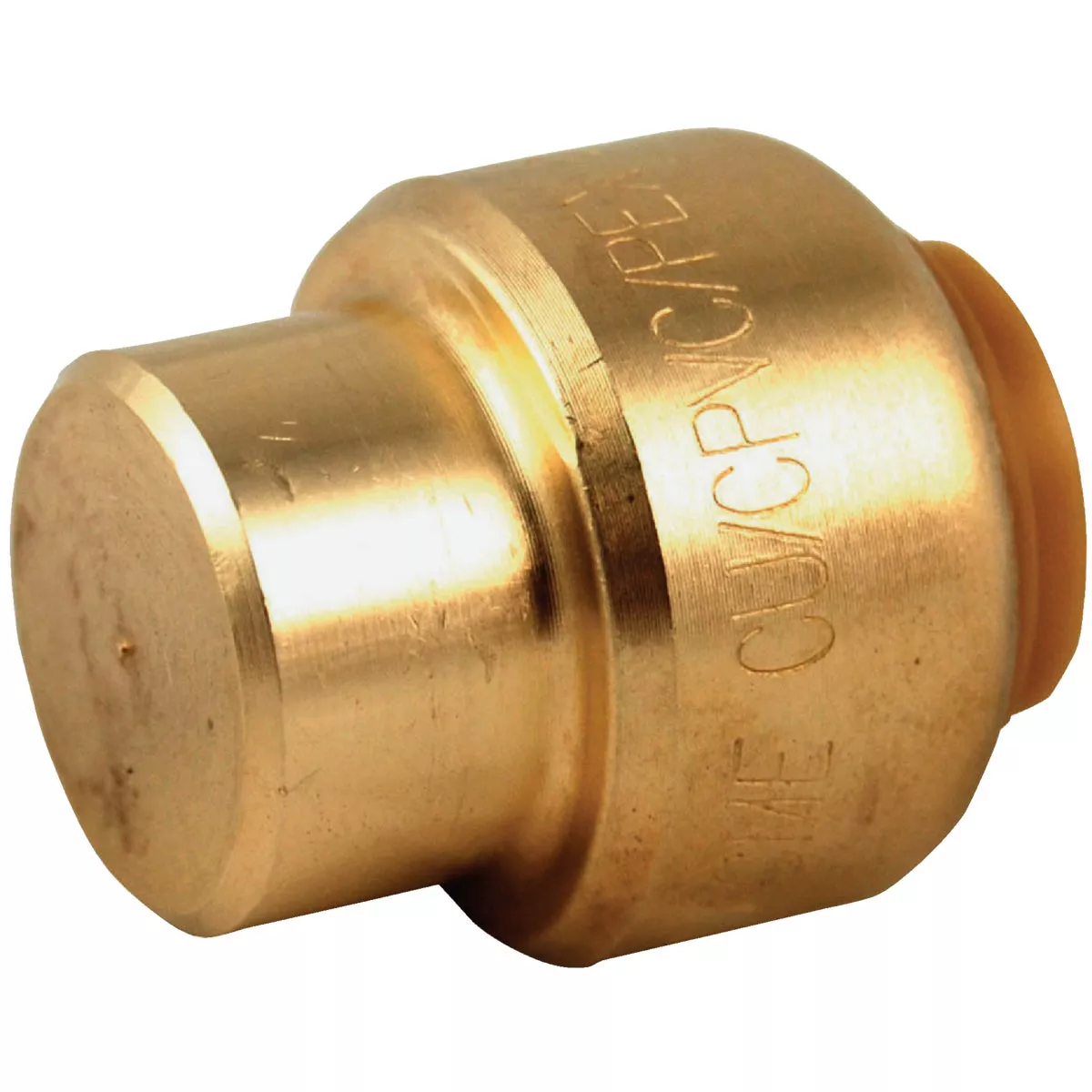

SharkBite 3/8 In. (1/2 In. OD) Push-to-Connect Brass End Push Cap

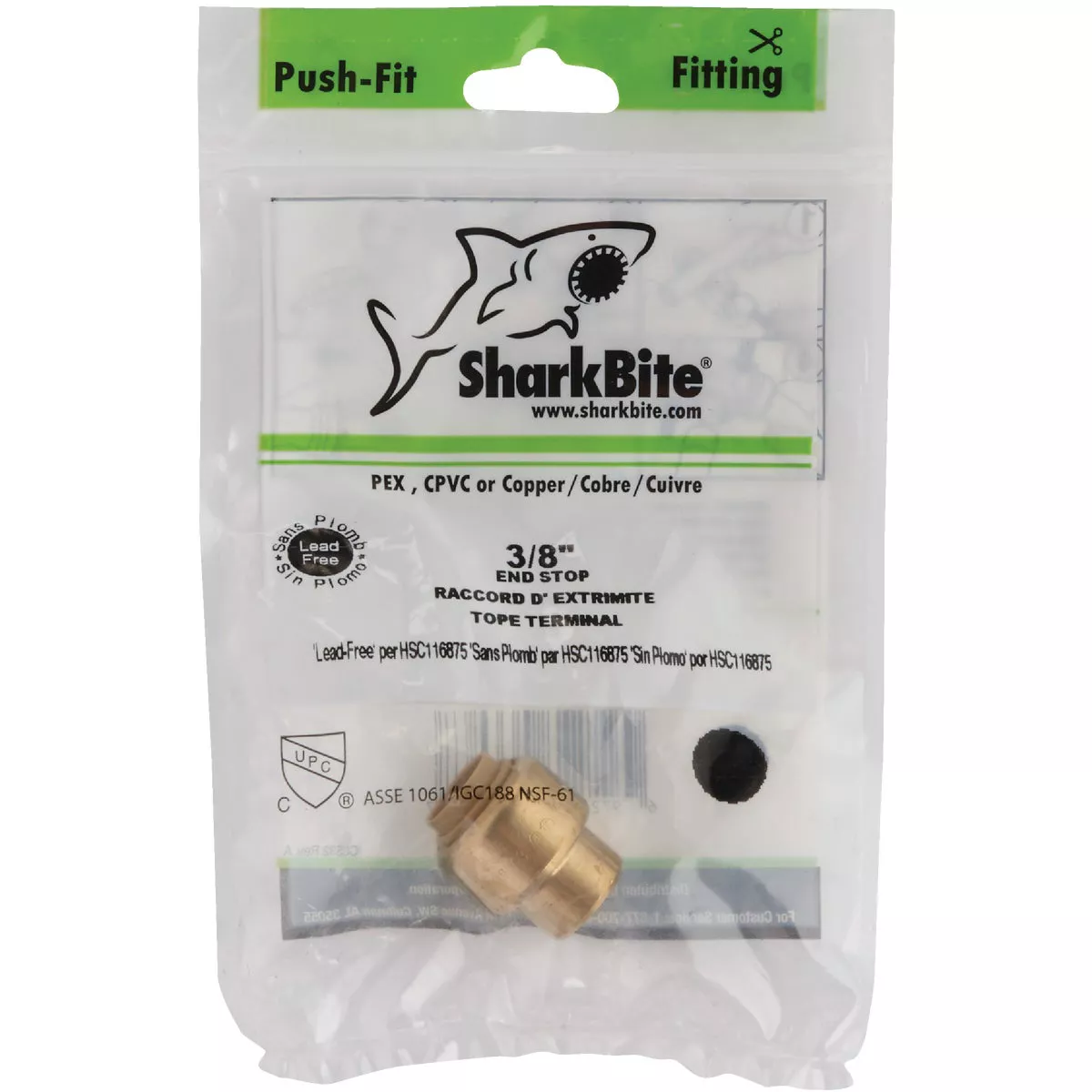

SharkBite 3/8 In. (1/2 In. OD) Push-to-Connect Brass End Push Cap - photo 2

+ 2 more

SharkBite 3/8 In. (1/2 In. OD) Push-to-Connect Brass End Push Cap
SharkBite 3/8 In. (1/2 In. OD) Push-to-Connect Brass End Push Cap - photo 2
SharkBite 3/8 In. (1/2 In. OD) Push-to-Connect Brass End Push Cap
SharkBite 3/8 In. (1/2 In. OD) Push-to-Connect Brass End Push Cap - photo 2
Tap to view
In-store price may vary. Not all products available at all stores.

    Product overview

    SharkBite Max push-to-connect fittings allow you make pipe connections with half the insertion effort while withstanding double the burst pressure. Featuring a newly designed stainless-steel retainer, SharkBite Max delivers additional strength and durability while providing a 250 psi pressure rating. Brass push fitting. UPC, IAPMO, and NSF-61 certified and approved. The fitting can be used with copper, PEX, and CPVC, and is rated at 200 F, 250 psi. It is made of 1-piece DZR brass. Fittings can be buried and placed behind drywall. Fittings are removeable and reuseable. Product is individually bagged. Third-party listed, compliant with applicable U.S. and Canadian plumbing codes. 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT. Five-year warranty when properly installed with HDPE SDR-9. Patented technology.
    • Can be installed on wet lines and pressure tested immediately
    • Ideal in tight spaces
    • Can be rotated after installation
    • PEX tube liner not required for PEX installs
    • Half the insertion force with double the burst pressure
    MaterialBrass
    TypePush Cap
    Size3/8 In. (1/2 In. OD)
    Connection TypePush
    Pressure Rating200 psi
    Pressure Rating (psi)200
    Maximum Working Temperature (F)200
    Fitting TypeCap
    Single Fitting Size3/8 In. (1/2 In. OD)
    BrandSHARKBITE
    UPC00697285466067
    Product typeBrass Cap
    • Buying Guides
    • Related Product Articles
    • California Prop-65 WarningWARNING:

      This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

      WARNING:

      This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

    • Request Safety Data Sheet (SDS)
