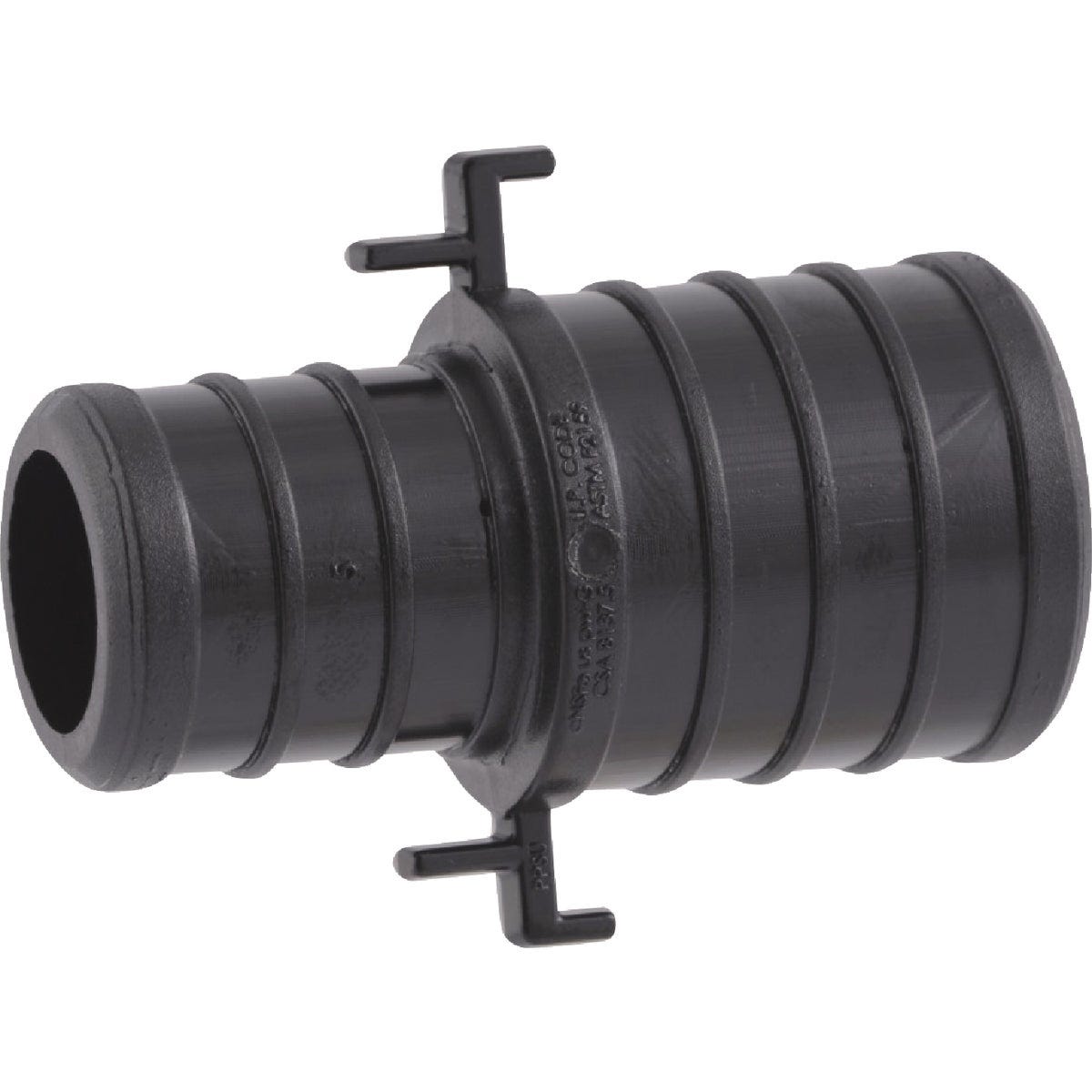

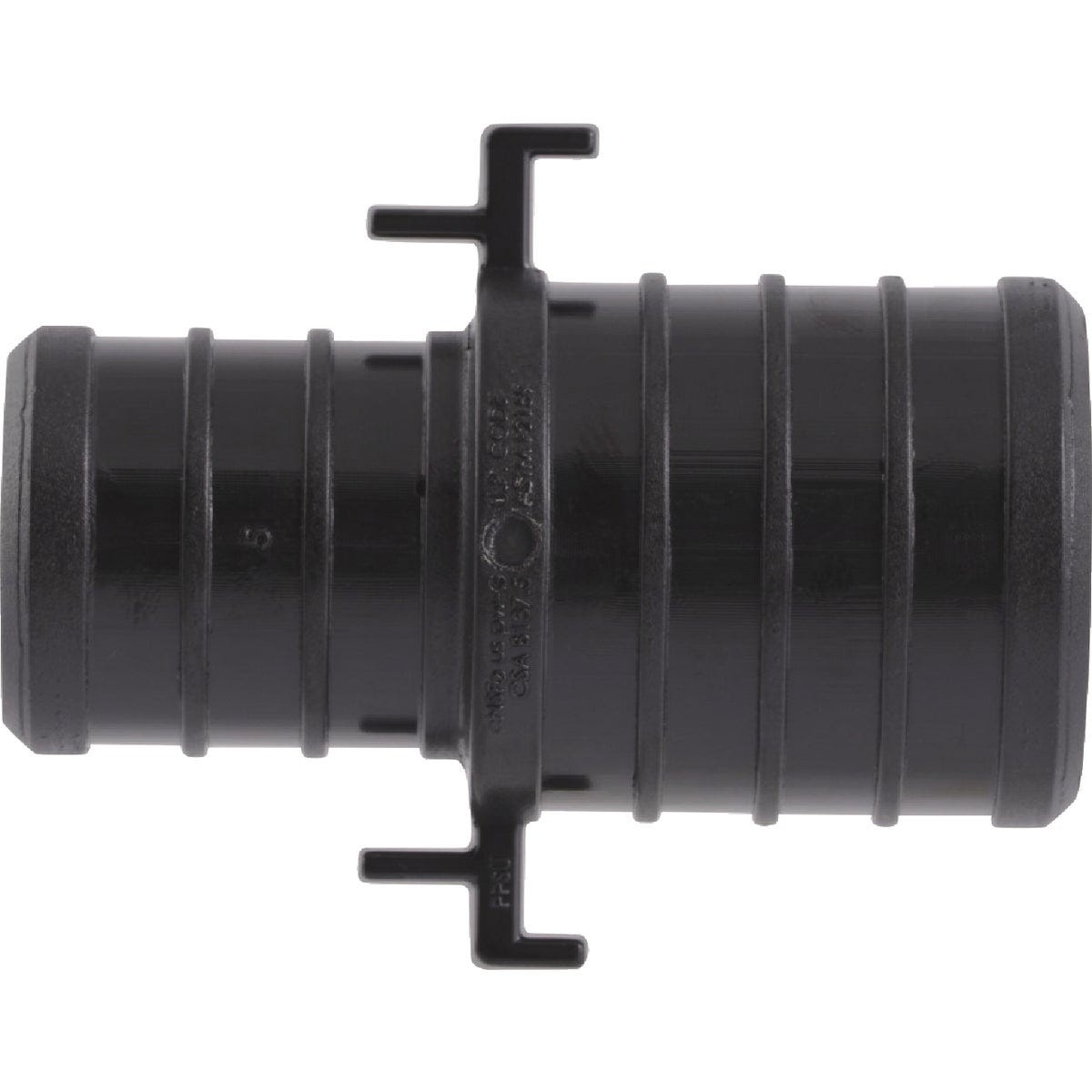

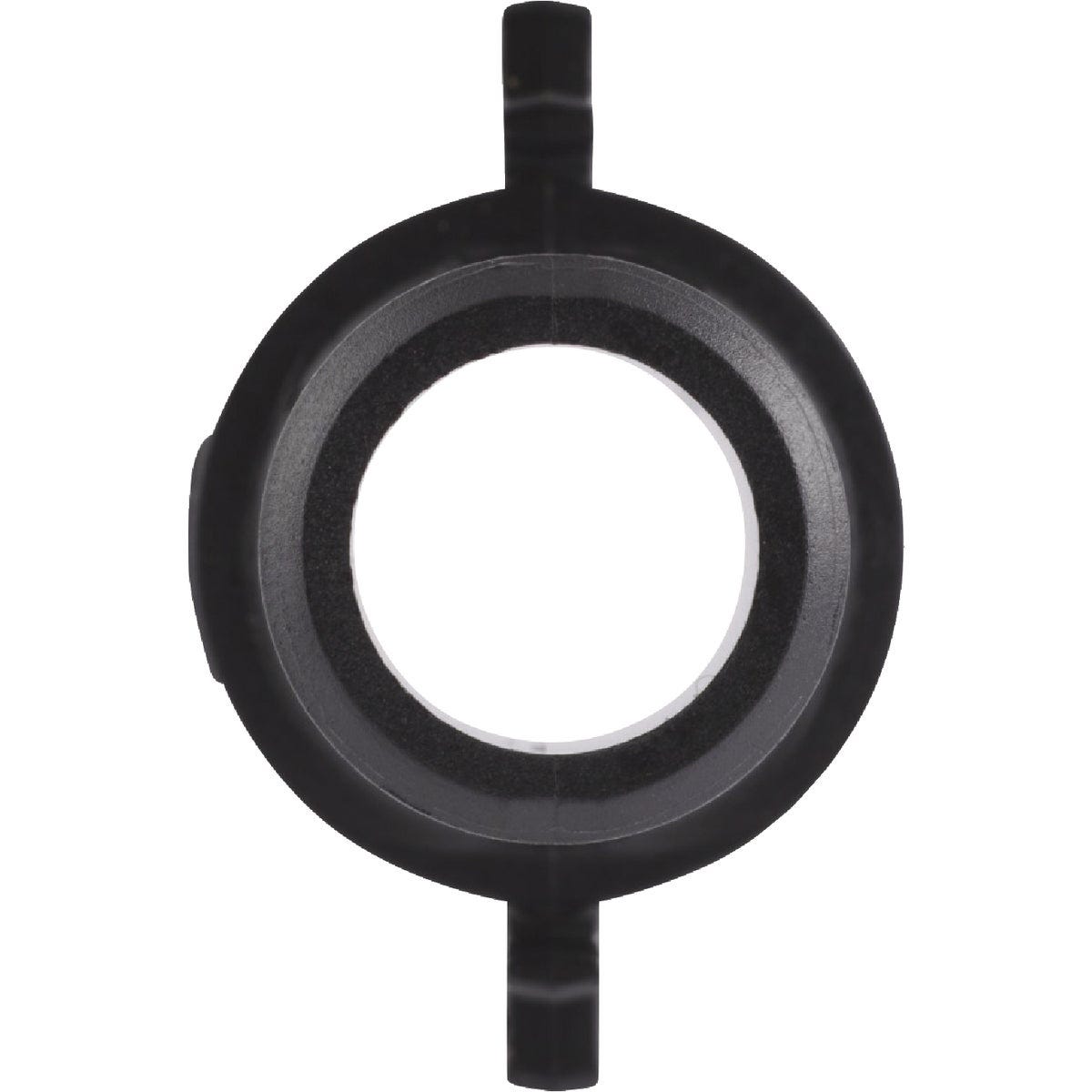

SharkBite PEX-B 1 In. x 3/4 In. Poly Alloy Barb Coupling (5-Pack)
Model #UP060A5 UPC 00697285021112
115913
Tap to view
Product overview
The SharkBite PEX Poly Alloy Barb Coupling is an easy to install, low-cost solution to connect to PEX tubing. This fitting allows you to transition pipe size with one fitting. These fittings are suitable for potable water distribution and hydronic heating applications. SharkBite PEX Poly Alloy Barb fittings can be used in both a stainless steel clamp system, or a copper crimp ring system as well (each sold separately). Approvals: ASTM F2159, NSF/ANSI 61, NSF 372.
- Compatible with PEX-A, PEX-B, PEX-C or PERT pipe
- Made from high performance acudel polymer
- Connects to PEX pipe with copper crimp rings or stainless steel clamp rings
- Minimum working temperature: 33 Deg F at 160 psi
- Maximum working temperature: 200 Deg F at 80 psi
- Certified for use in potable water and hydronic heating system applications
Specifications
| Material | Poly Alloy |
| Fitting Size 1 | 1 In. |
| Fitting Size 2 | 3/4 In. |
| Connection Type 1 | Barb |
| Connection Type 2 | Barb |
| Connectivity | Barb |
| Reducing Fitting | Yes |
| PEX Type | B |
| Fitting Type | Coupling |
| Brand | SHARKBITE |
| UPC | 00697285021112 |
| Product type | PEX Coupling |
Product manuals and information
- Buying Guides
- Related Product Articles
- California Prop-65 WarningWARNING:
This product can expose you to chemicals including Bisphenol A (BPA), Carbon Black, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
WARNING:This product can expose you to chemicals including Bisphenol A (BPA), Carbon Black, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
- Request Safety Data Sheet (SDS)
