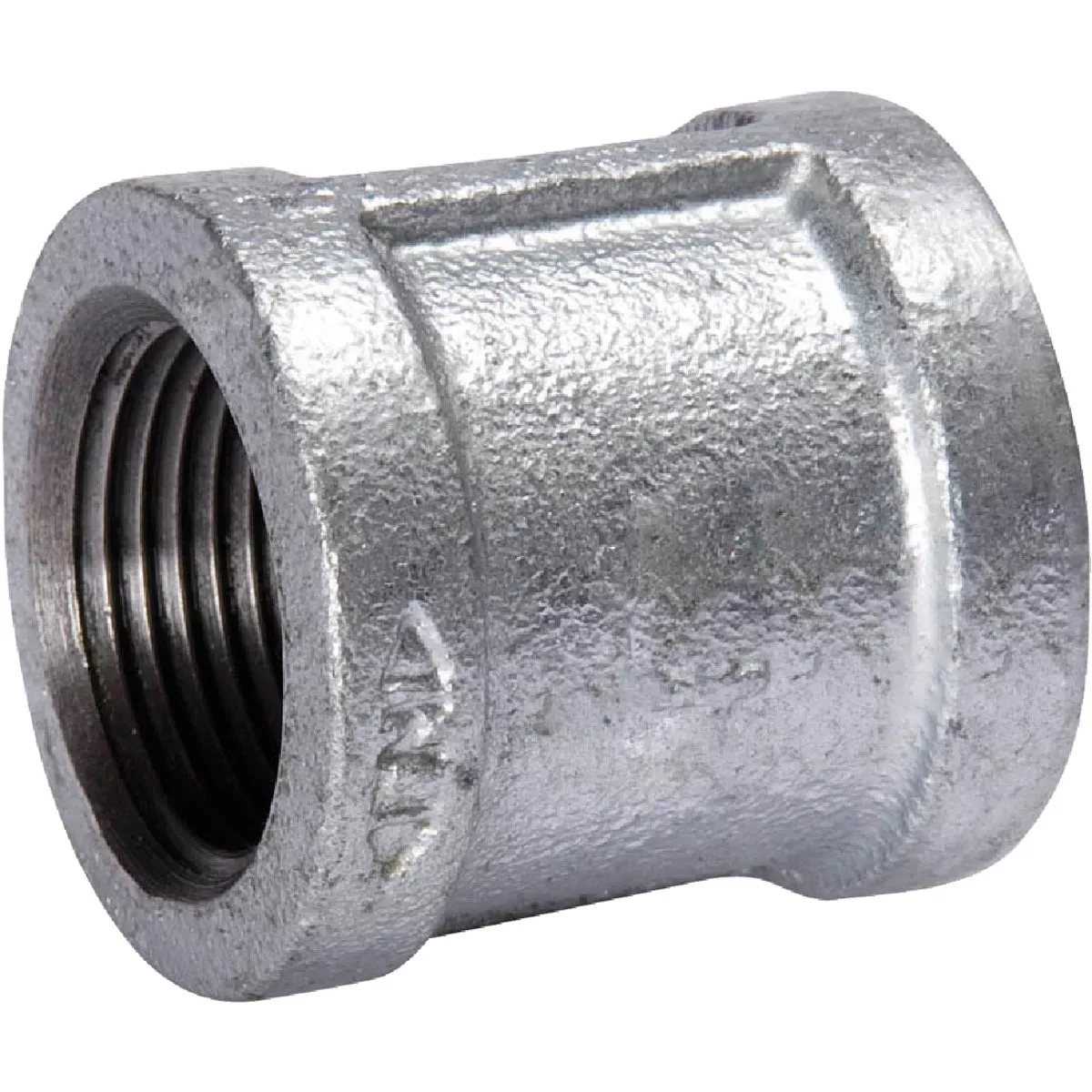

Southland 1 In. x 1 In. FPT Galvanized Coupling
Model #511-205HP UPC 00032888209923
448644
Tap to view
Product overview
Malleable galvanized iron pipe fittings. Each fitting is individually flag tagged. Import. Mueller logo cast into body of each fitting. 100% inspected and quality tested. All fittings meet the following specifications: Material: ANSI/ASTM A-197 Dimensions: ANSI/ASME B.15.3, B16.14, B16.39. Threads: ANSI B1.20.1.
- Used for hot and cold water systems, refrigeration, sprinklers, compressed air, gasoline, diesel, alcohol
- Also ideal for other applications where conducted fluid needs inner rust-proof protection
- Galvanized malleable iron construction with zinc coating
- 150 Lb. class malleable fittings
- This fitting works up to 500 PSI at 150 Deg F
- Relative softness of metal helps provide a sure seal
- Threaded ends comply with ANSI/ASME B1.20.1 standards
Specifications
| Material | Malleable Iron |
| Type | Threaded |
| Finish | Galvanized |
| Fitting Size 1 | 1 In. |
| Fitting Size 2 | 1 In. |
| Connection Type 1 | FIP |
| Connection Type 2 | FIP |
| Fitting Type | Coupling |
| Brand | Southland |
| UPC | 00032888209923 |
| Product type | Galvanized Coupling |
