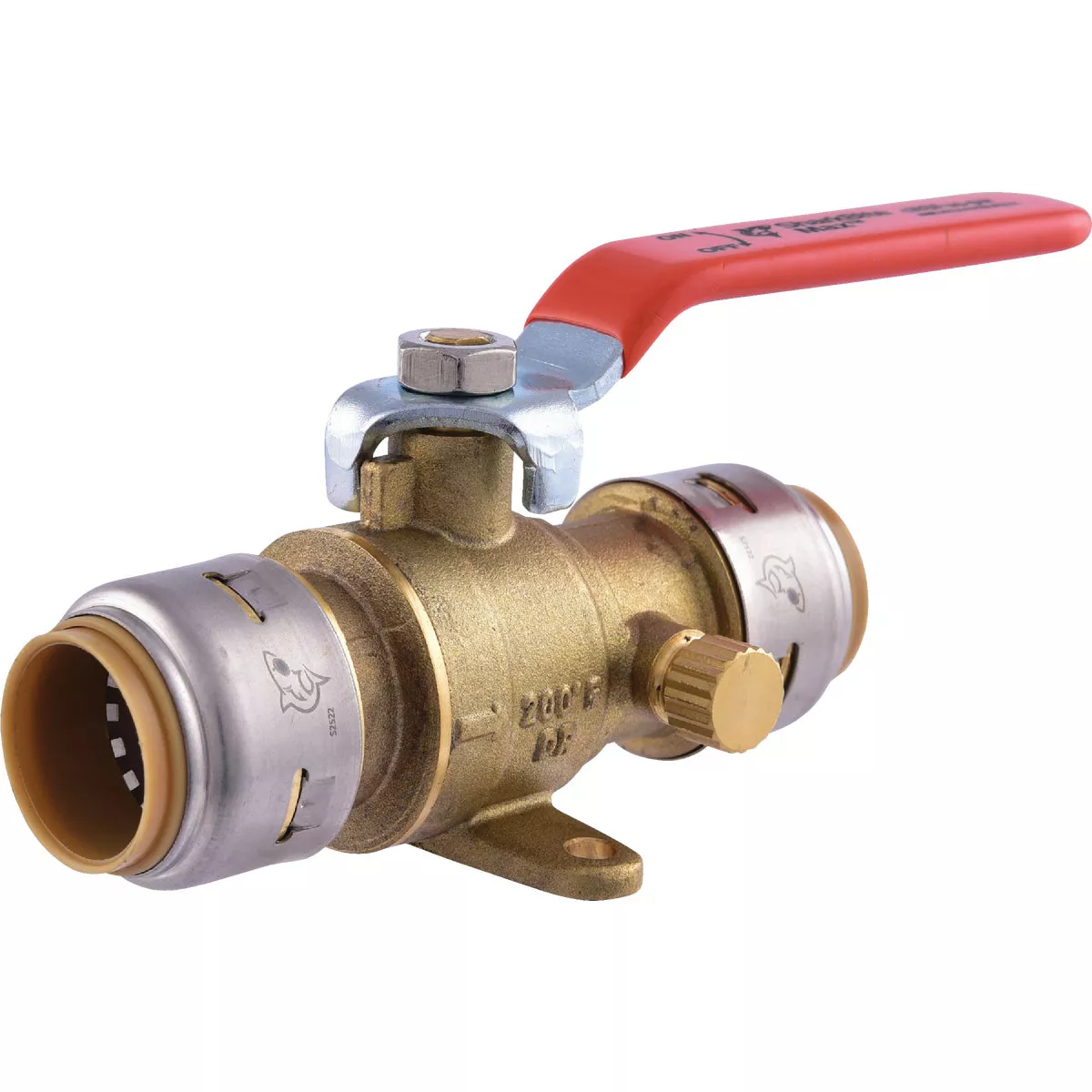

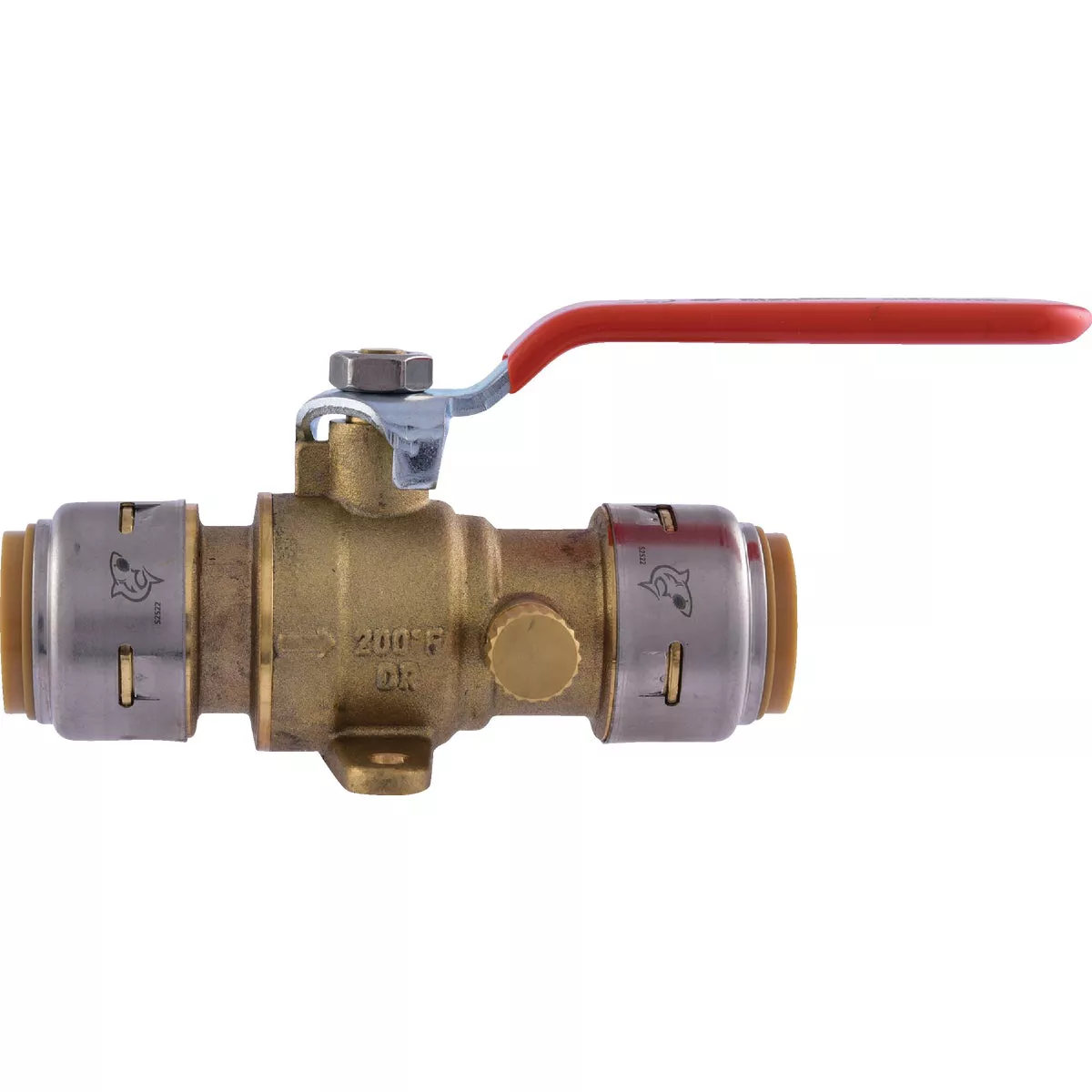

SharkBite 3/4 In. Brass Push-Fit Ball Valve with Drain & Mounting Tab
Model #UR24616A UPC 00697285069701
169429
Tap to view
Product overview
Features a drain / vent that allows for water to be drained from the line if needed and mounting tab for stability when attaching this plumbing fixture to other surfaces. Compatible with PEX, copper, CPVC, PE-RT and HDPE pipe. Innovative push-to-connect design makes for quick and easy installation. Faster install time and ease of use reduces installation errors.
- Compatible with PEX, copper, CPVC, PE-RT and HDPE pipe
- Can be installed in wet lines
- Can be rotated for easier and faster installation
- No special tools, crimping, glue or soldering is needed
- Ideal for working in tight spaces
- Remove using a Disconnect Clip or Disconnect Tongs (both sold separately)
- Rated for 200 psi and 200F (93C)
Specifications
| Material | Brass |
| Type | Push Ball Valve |
| Finish | Brass |
| Pressure Rating | 200 psi |
| Temperature Rating | 200F |
| Fitting Size 1 | 3/4 In. |
| Fitting Size 2 | 3/4 In. |
| Fitting Size 3 | 1/8 In. |
| Connection Type 1 | Push |
| Connection Type 2 | Push |
| Pressure Rating (psi) | 200 |
| Maximum Working Temperature (F) | 200 |
| Brand | SHARKBITE |
| UPC | 00697285069701 |
| Product type | Brass Valve |
Product manuals and information
- Buying Guides
- Related Product Articles
- California Prop-65 WarningWARNING:
This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
WARNING:This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
- Request Safety Data Sheet (SDS)
