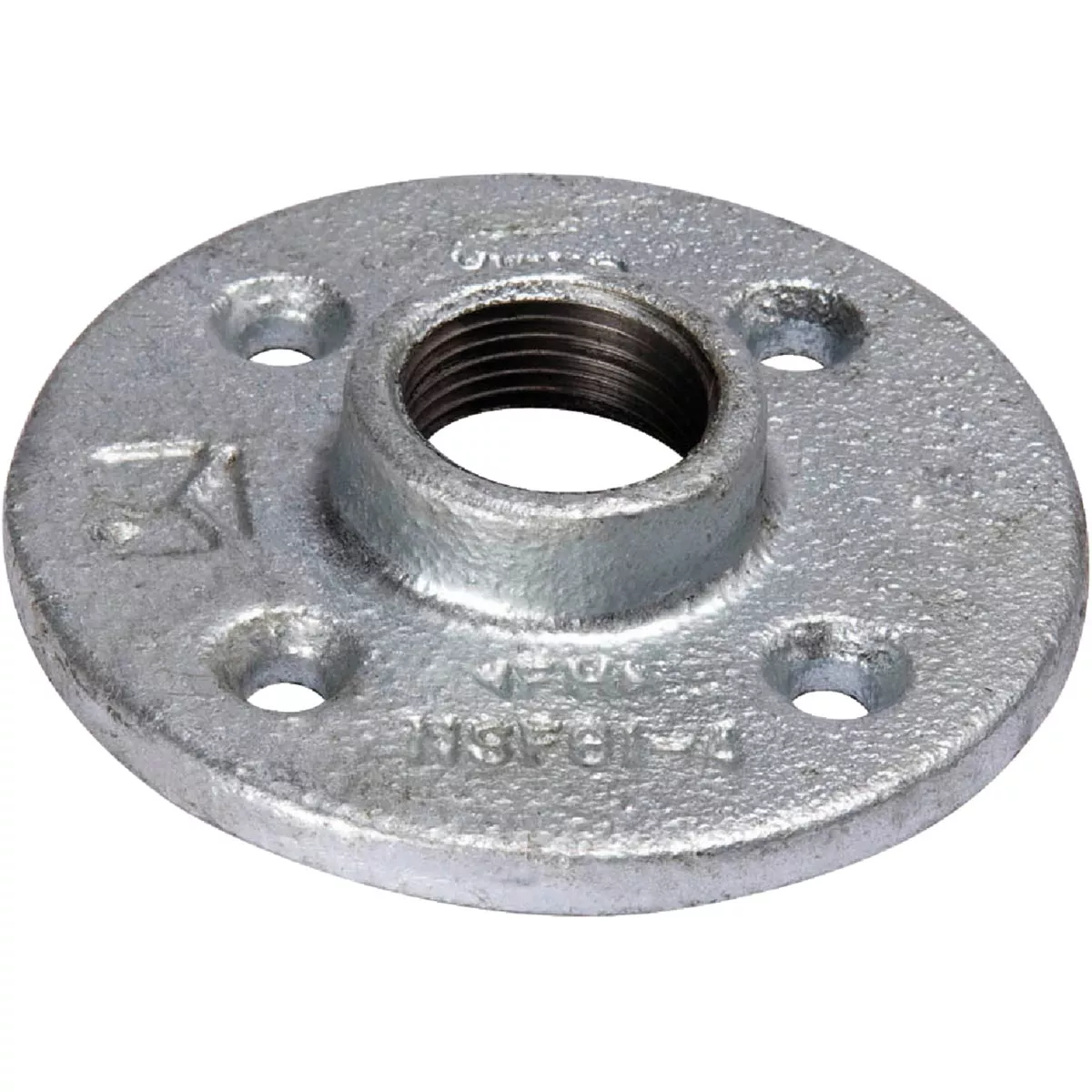

Southland 1-1/2 In. Malleable Iron Galvanized Floor Flange
Model #511-607HN UPC 00032888406100
447246
Tap to view
Product overview
Malleable iron pipe fittings. Galvanized. Import. Mueller logo cast into body of each fitting. 100% inspected and quality tested. All fittings meet the following specifications: Material: ANSI/ASTM A-197 Dimensions: ANSI/ASME B.15.3, B16.14, B16.39. Threads: ANSI B1.20.1.
- Used for hot and cold water systems, refrigeration, sprinklers, compressed air, gasoline, diesel, alcohol
- Also ideal for other applications where conducted fluid needs inner rust-proof protection
- Galvanized malleable iron construction with zinc coating
- 150 Lb. class malleable fittings
- This fitting works up to 500 PSI at 150 Deg F
- Relative softness of metal helps provide a sure seal
- Threaded ends comply with ANSI/ASME B1.20.1 standards
Specifications
| Material | Malleable Iron |
| Finish | Galvanized |
| Diameter | 4-3/5 In. |
| Fitting Size 1 | 1-1/2 In. |
| Fitting Size | 1-1/2 In. |
| Fitting Type | Flange |
| Brand | Southland |
| UPC | 00032888406100 |
| Product type | Galvanized Floor Flange |
