Product overview

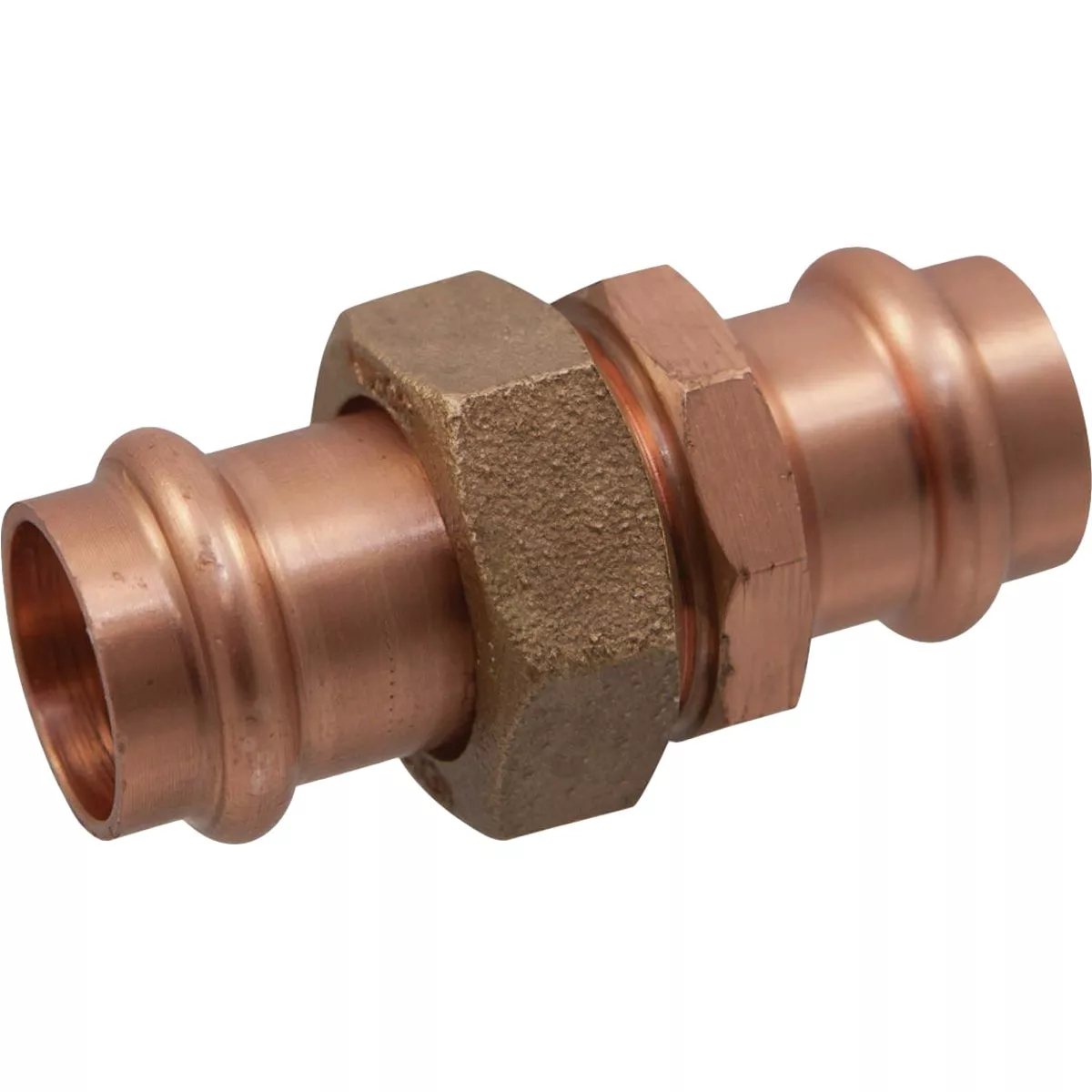

The NIBCO Press System wrot copper union features an inboard bead and EPDM O-ring. Simply applying pressure from a press tool tightens the O-ring onto the tube, ensuring a clean, watertight seal in seconds with no flame, solder or flux. The union has press connections. It is used to allow repair to the line without damage between two press connections.
- Operating pressure 200 psi CWP max
- Operating emperature range: 20 F to 250 F
- Lead-free
- Dezincification resistant
- ASTM B75 Alloy C12200 Copper
- Complies with ASME B16/51 performance
- Third party certified to UPC
- Third party certified to the performance requirements of CSA MSE 13 and PS-117
Specifications
| Material | Copper |
| Connection Type | Press |
| Fitting Size 1 | 1/2 In. |
| Fitting Size 2 | 1/2 In. |
| Connection Type 1 | Press |
| Connection Type 2 | Press |
| Fitting Type | Union |
| Brand | NIBCO |
| UPC | 00039923308191 |
| Product type | Copper Union |
