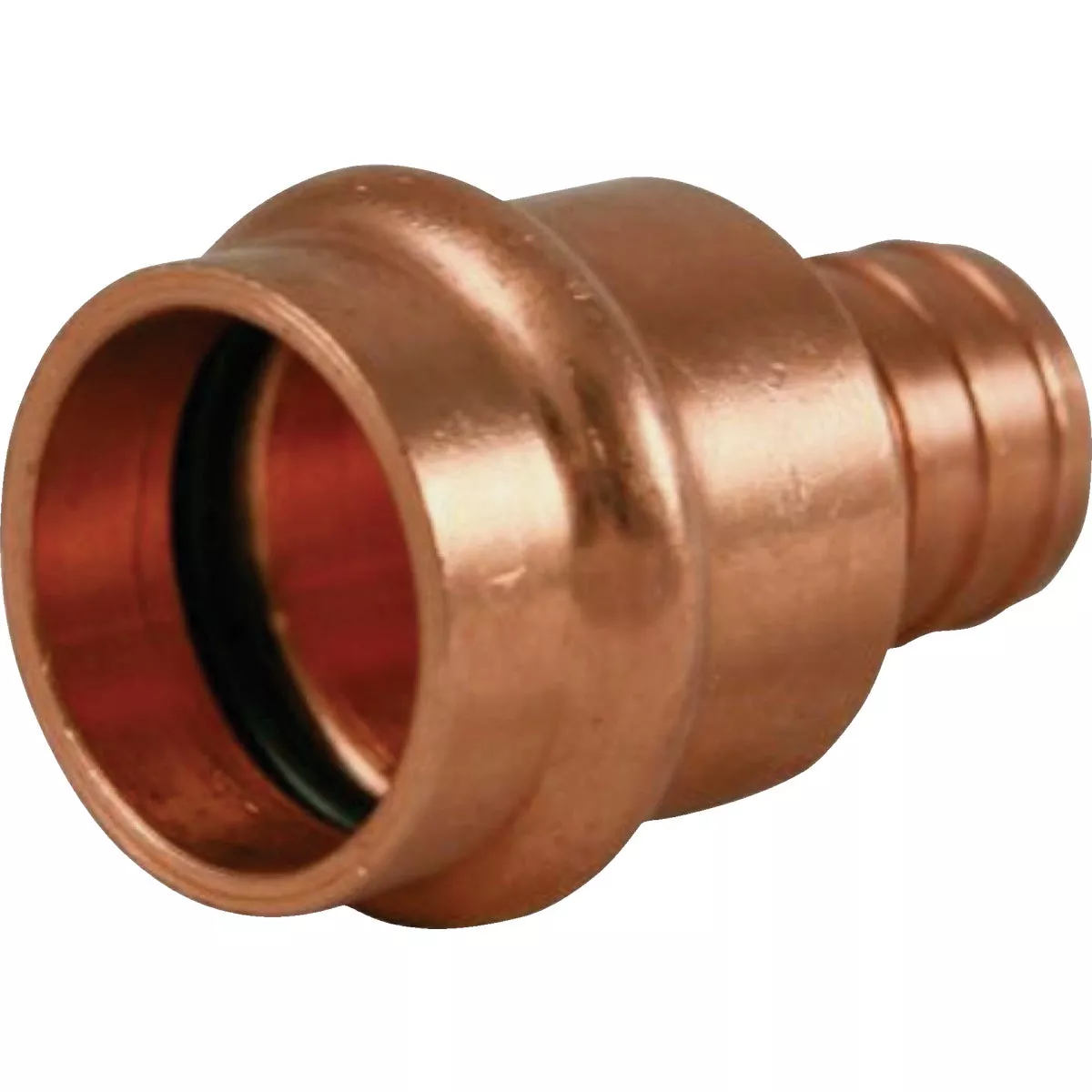

NIBCO 3/4 In. Press x 3/4 In. Pex Copper Adapter
Model #9035050PCUItem #490961UPC 00039923308153
Tap to view
Product overview
The NIBCO Press System copper PEX adapter features an inboard bead and EPDM O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, watertight seal in seconds with no flame, solder or flux. The PEX adapter provides a method for adapting a press connection to a PEX connection.
- Operating pressure 200 psi cwp
- Temperature range -20F to 250F
- Lead-free
- Dezincification resistant
- ASTM B75 Alloy C12200 Copper
- Complies with ASME B16/51 Performance
- Third party certified to UPC
- Third party certified to the performance requirements of CSA MSE 13 and PS-117
Specifications
| Material | Copper |
| Type | Press x Pex |
| Size | 3/4 In. x 3/4 In. |
| Connection Type | Press x Pex |
| Fitting Size 1 | 3/4 In. |
| Fitting Size 2 | 3/4 In. |
| Connection Type 1 | Press |
| Connection Type 2 | Barb |
| Brand | NIBCO |
| UPC | 00039923308153 |
| Product type | Copper Adapter |
