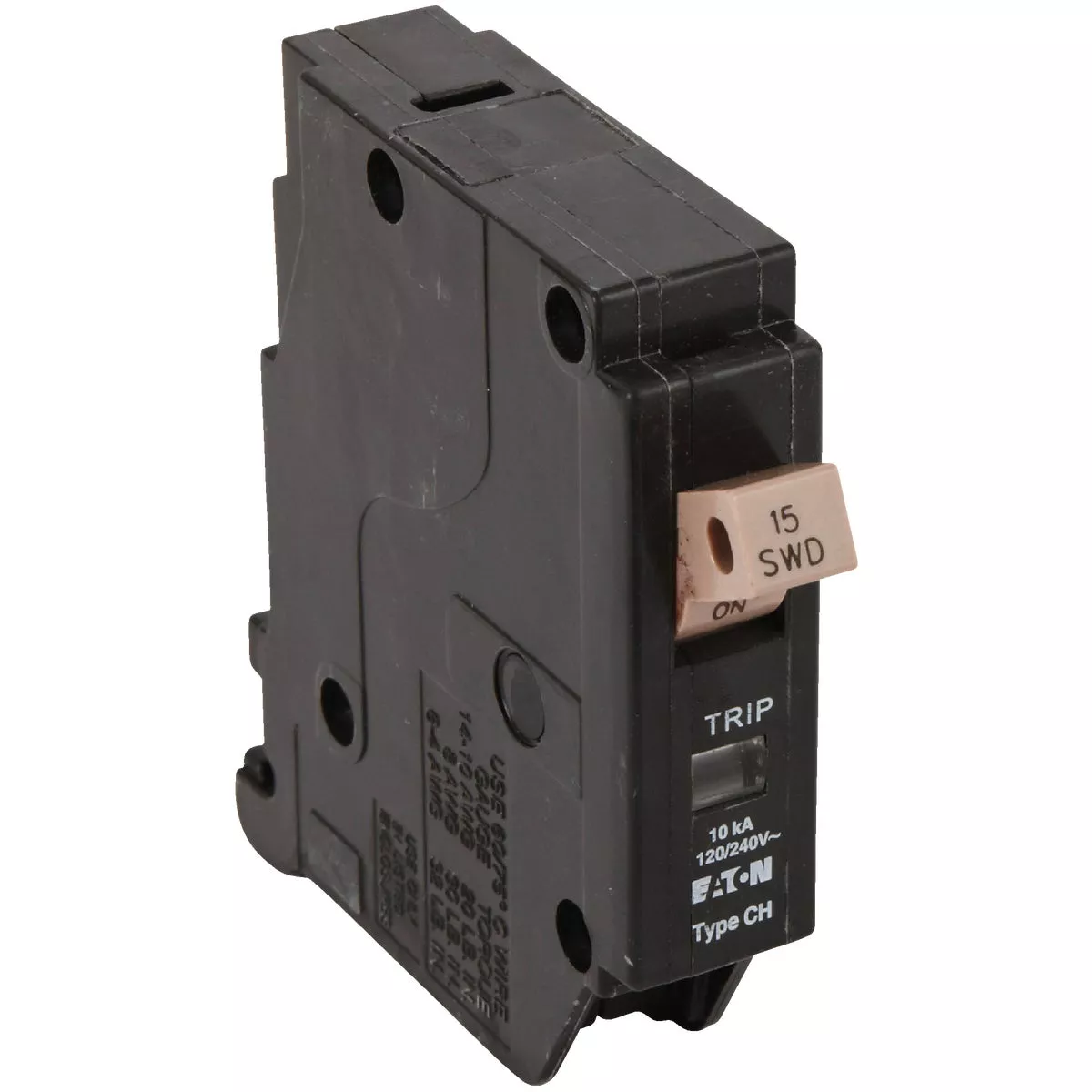

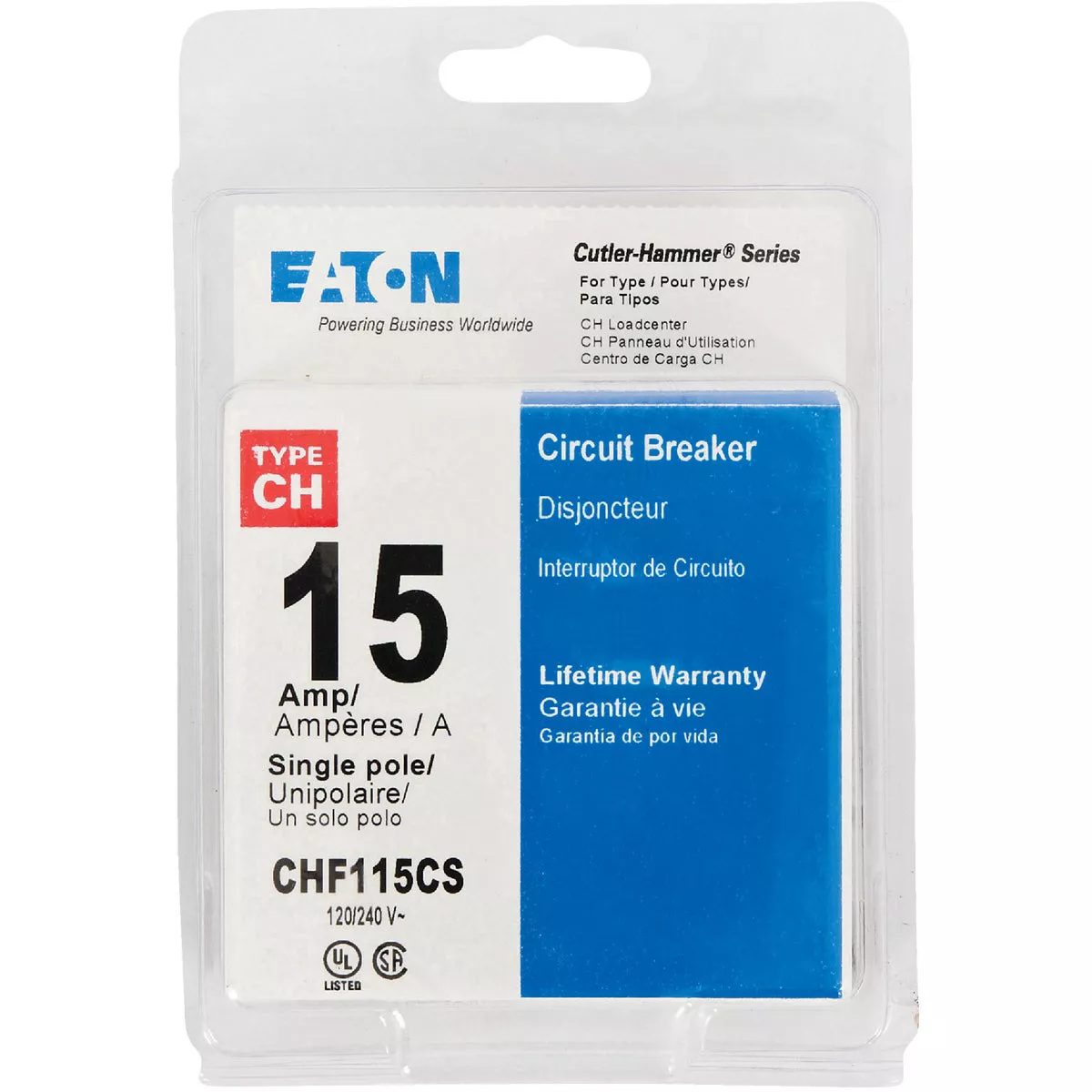

Eaton CHF 15A Single-Pole Standard Trip Circuit Breaker
Model #CHF115CS UPC 00786685683218
171066
Tap to view
Product overview
Circuit breaker for use in CH load centers. Designed to protect house wire from overheating or causing a short-circuit. Features a trip flag indicator. 120 volt/240 volt, 10,000 AIC (amps interrupting capacity). UL (Underwriter's Laboratories) listed.
- Designed to protect house wire from overheating or causing a short-circuit
- Compatible with CH load centers
- Trip flag indicator
- UL Listed
- 15, 1
Specifications
| Amperage | 15 |
| Voltage | 120/240 |
| Number of Poles | 1 |
| Mount Type | Plug-In |
| Wire Size | (1) #14-8 Cu/Al, (2) #14-10 Cu/Al |
| Certification | UL Listed |
| Interruption Type | Standard Trip |
| Frame Size | 1-Space |
| Width (In.) | 0.75 |
| Brand | Eaton |
| UPC | 00786685683218 |
| Product type | Circuit Breaker |
