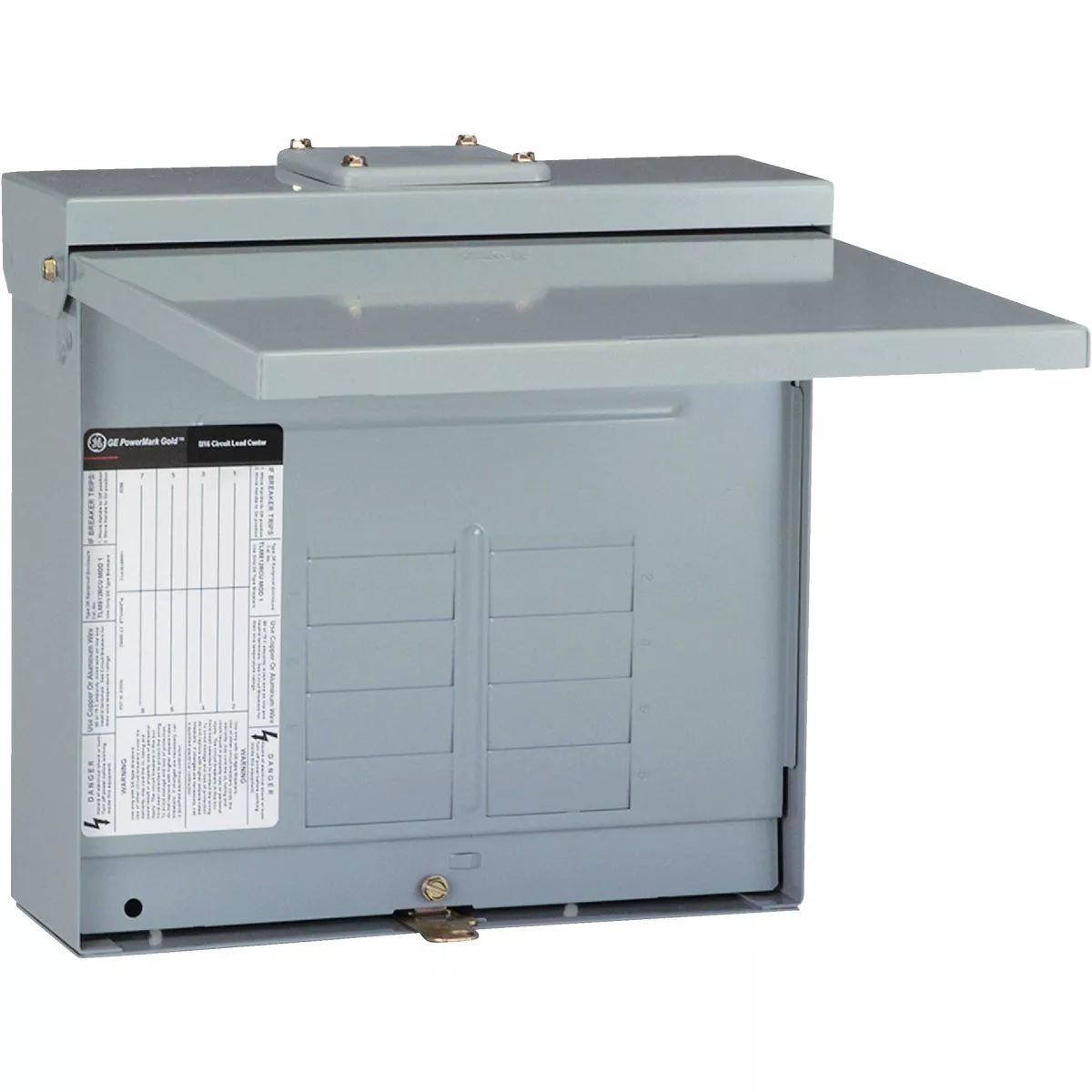

GE PowerMark Gold 125A 8-Space 16-Pole Outdoor Main Lug Load Center
Model #TLMQ812RCU UPC 00783164680676
865758
Tap to view
Product overview
PowerMark Gold outdoor main lug circuit breaker panel. Includes a sturdy tin-plated copper bus bar and galvanized box for rust resistance with a self-adjusting dead cover. 100% split neutral holes on each side. Top or bottom feed, 3 wire, 22,000 AIR. 1-piece interior removes and re-installs easily. ANSI (American National Standards Institute) certified.
- Includes a sturdy tin-plated copper bus bar and galvanized box for rust resistance with a self-adjusting dead cover
- 100% split neutral holes on each side
- Top or bottom feed
- 1-piece interior removes and re-installs easily
- ANSI/UL Listed
Specifications
| Amperage | 125 |
| Voltage | 120/240 |
| Series | PowerMark Gold |
| Number of Spaces | 8 |
| Max Number of Poles | 16 |
| Enclosure Type | NEMA 3R Outdoor |
| Mount Type | Plug-In |
| Phase | Single |
| Wire Size | #14-4 |
| Certification | ANSI/UL Listed |
| Width (In.) | 11.25 |
| Height (In.) | 11.125 |
| Depth (In.) | 3.25 |
| Brand | GE |
| UPC | 00783164680676 |
| Product type | Main Lug Load Center |
