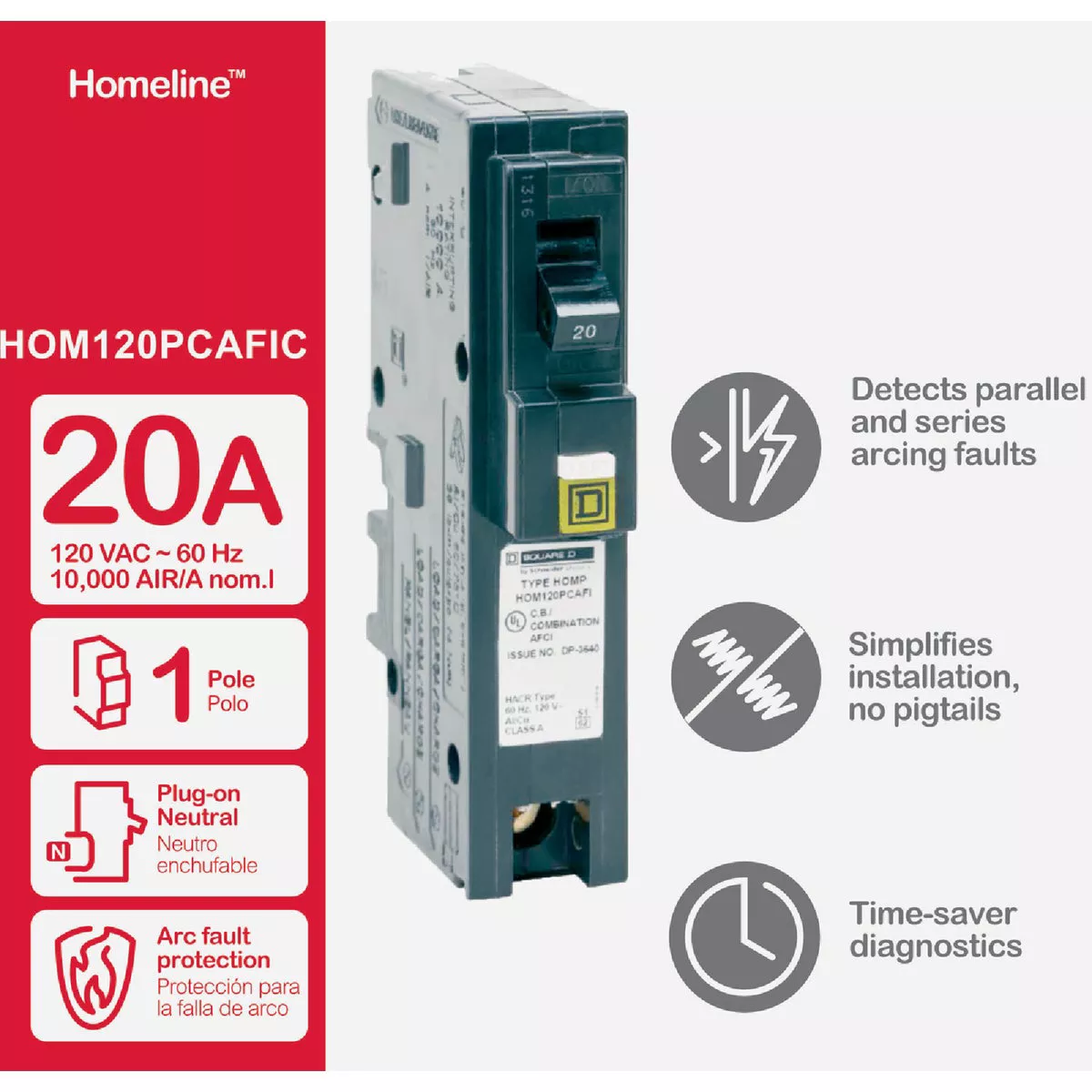

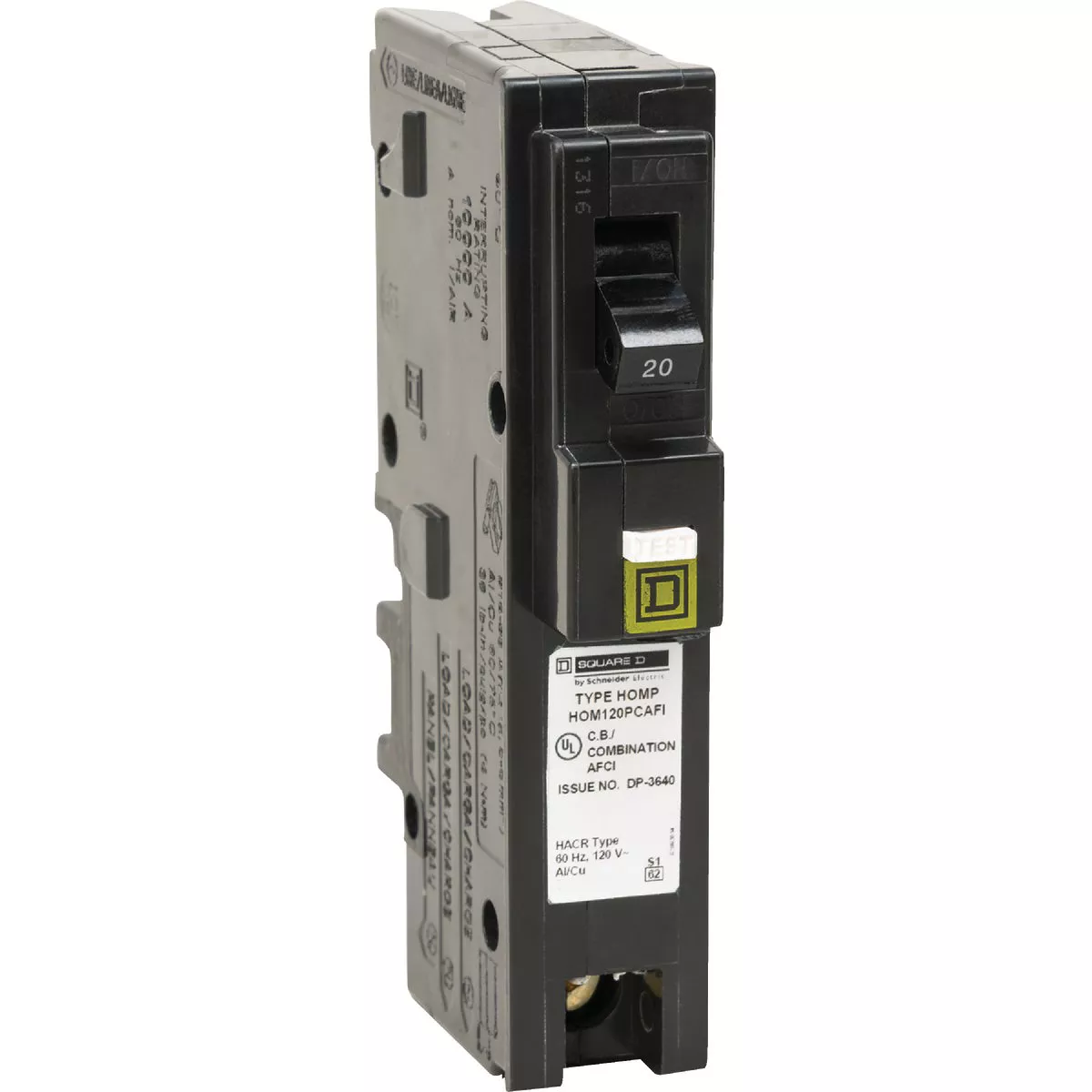

Square D Homeline 20A Single-Pole CAFCI Plug-On Neutral Combination Arc Fault Breaker
Model #HOM120PCAFICItem #501846UPC 00785901976684
Tap to view
Product overview
Plug-on neutral combination arc fault circuit interrupter. Protects from dangerous arcing. Arcs typically occur out of sight, inside walls or electrical devices. Designed for reliability, connects directly to the neutral bar providing quick and easy installation. Features a neutral clip that eliminates pigtails and in turn frees gutter space. Uses Arc Detection Technology to constantly monitor the circuit and quickly turn off the power when a dangerous condition occurs. Use with plug-on neutral load centers only. 10,000AIR. ANSI (American Nation Standards Institute) certified and UL (Underwriter's Laboratories) listed. Limited lifetime warranty.
- Designed for reliability, connects directly to the neutral bar providing quick and easy installation
- Neutral clip that eliminates pigtails and in turn frees gutter space
- Arc Detection Technology constantly monitor the circuit and quickly turn off the power when a dangerous condition occurs
- UL Listed
Specifications
| Amperage | 20 |
| Voltage | 120 |
| Number Of Poles | 1 |
| Mount Type | Plug-In |
| Wire Size | #14-8 AWG |
| Certification | UL Listed |
| Interruption Type | CAFCI |
| Frame Size | 1-Space |
| Breaker Size | Miniature |
| Brand | Square D |
| UPC | 00785901976684 |
| Product type | Arc Fault Breaker |
