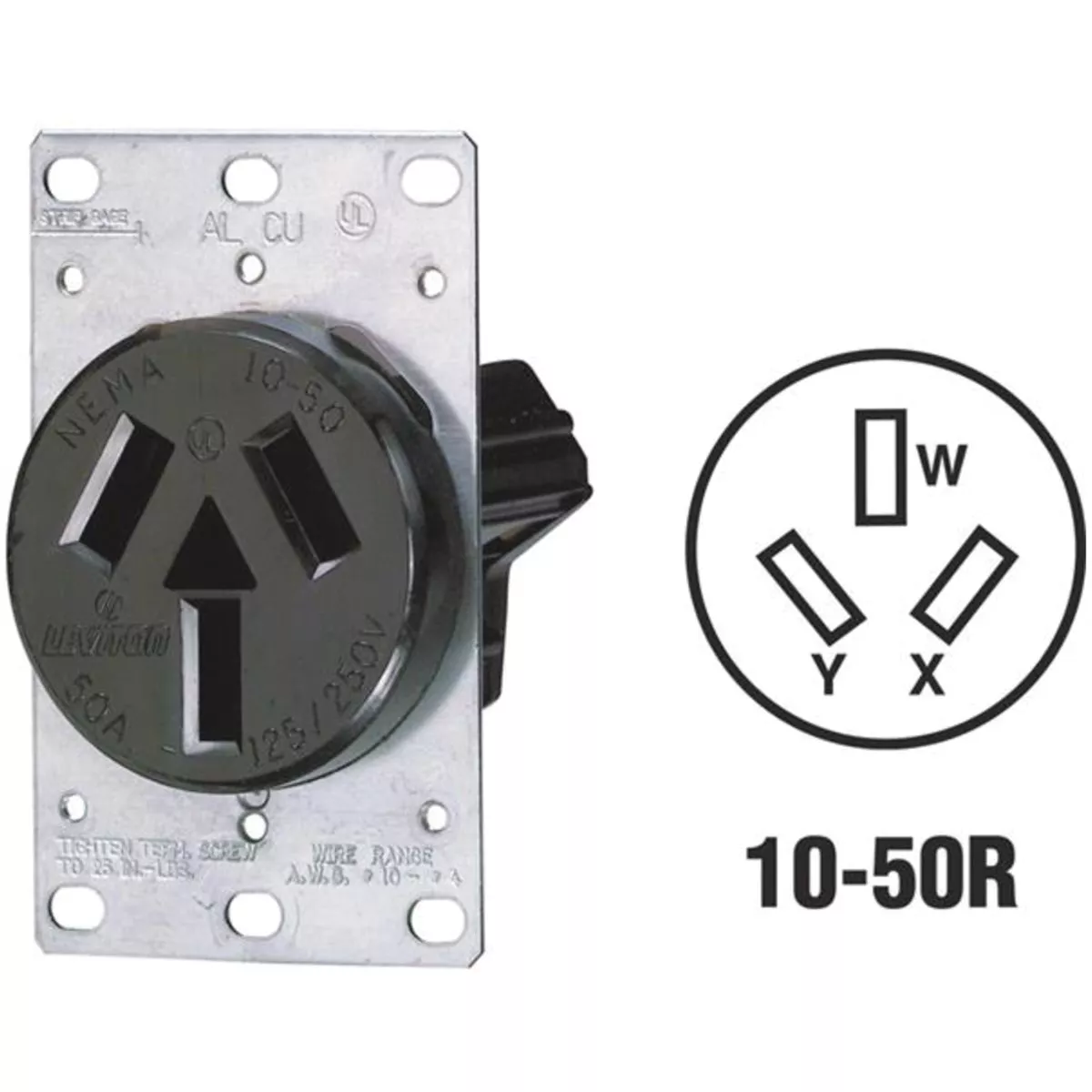

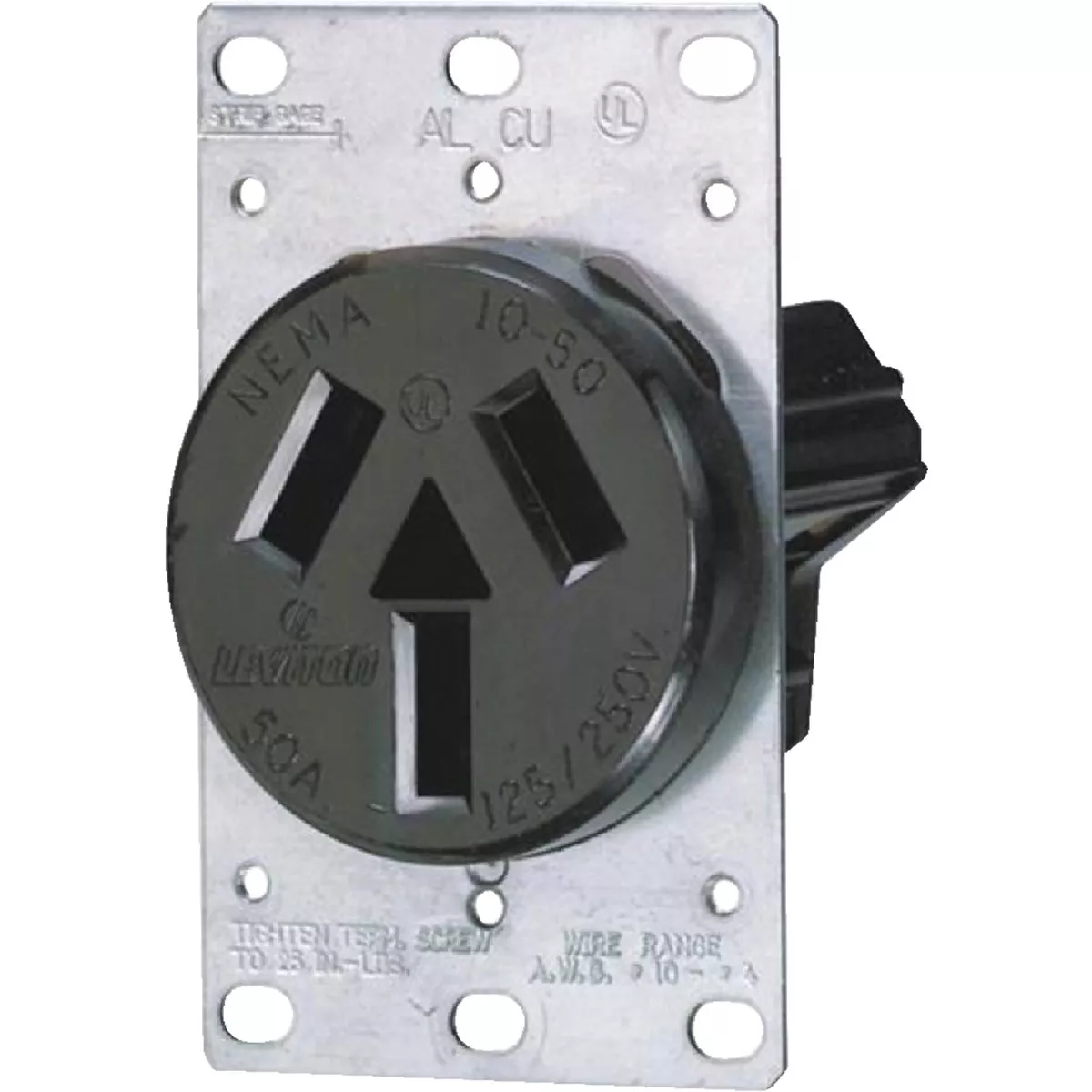

Leviton 50A Flush Mount Black 10-50R Non-Grounding Range Power Outlet
Model #R30-05206-S10Item #502283UPC 00078477905739
Tap to view
Product overview
Range power outlet. Accepts aluminum or copper conductors. Designed to be installed in 2-gang electrical boxes without mud rings. Maximum 4 AWG (American Wire Gauge). 3-pole, 3-wire, non-grounding. 2.15 inch diameter. Black, 50 amps/125 volts/250 volts. NEMA (National Electrical Manufacturer's Association) 10-50R, UL (Underwriter's Laboratories) listed.
- Designed to be installed in 2-gang electrical boxes without mud rings
- 3-pole, 3-wire, non-grounding
- UL Listed
Specifications
| Color | Black |
| Amperage | 50 |
| Voltage | 125/250 |
| Number Of Poles | 3 |
| Certification | UL Listed |
| Mount Type | Flush |
| NEMA Configuration | 10-50R |
| Number Of Wires | 3 |
| Brand | Leviton |
| UPC | 00078477905739 |
| Product type | Power Outlet |
