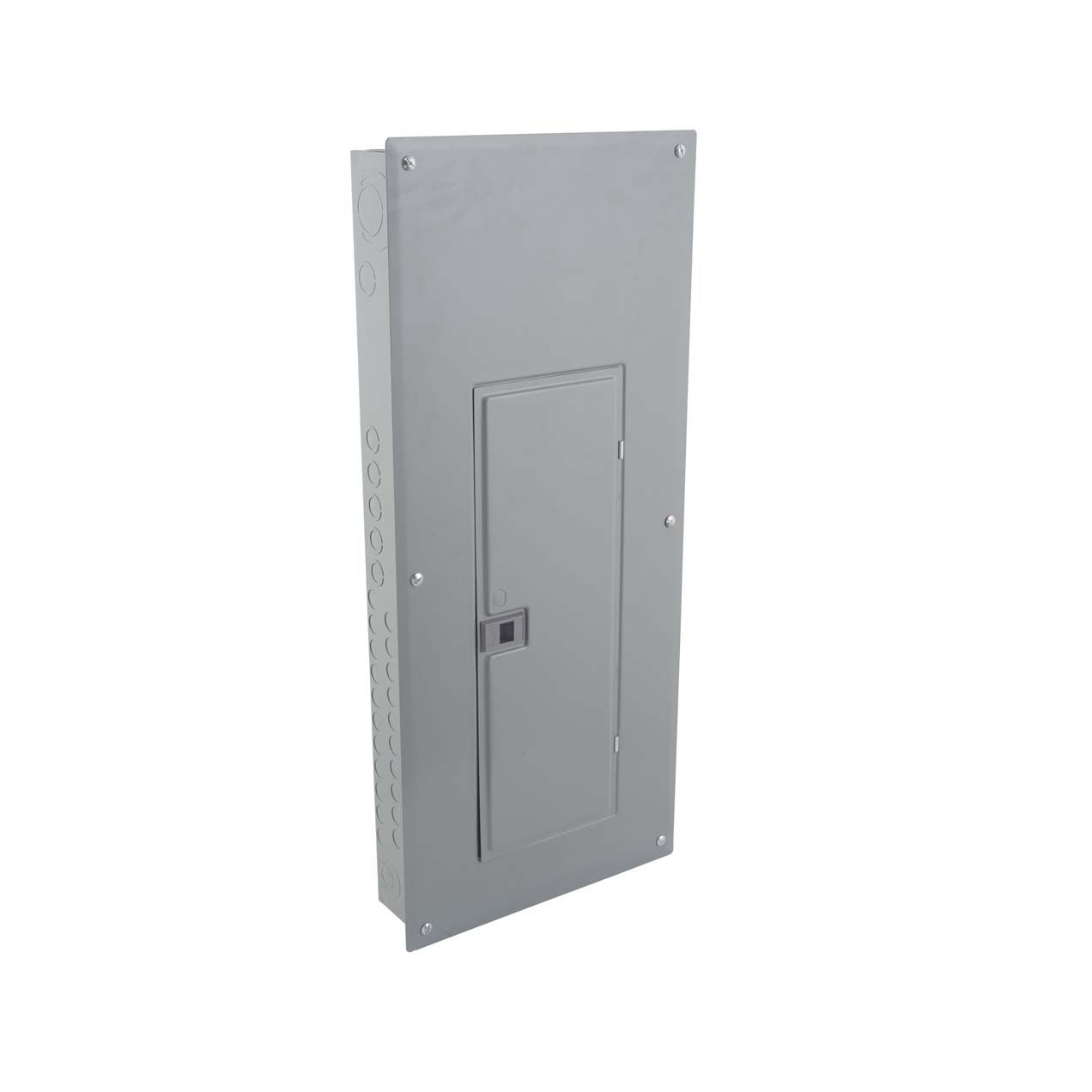

Square D Homeline Qwik-Grip 200A 80-Circuit 40-Space Indoor Main Breaker Plug-On Neutral Load Center
Model #HOM4080M200PQCVPItem #502878UPC 00785901613879
Tap to view
Product overview

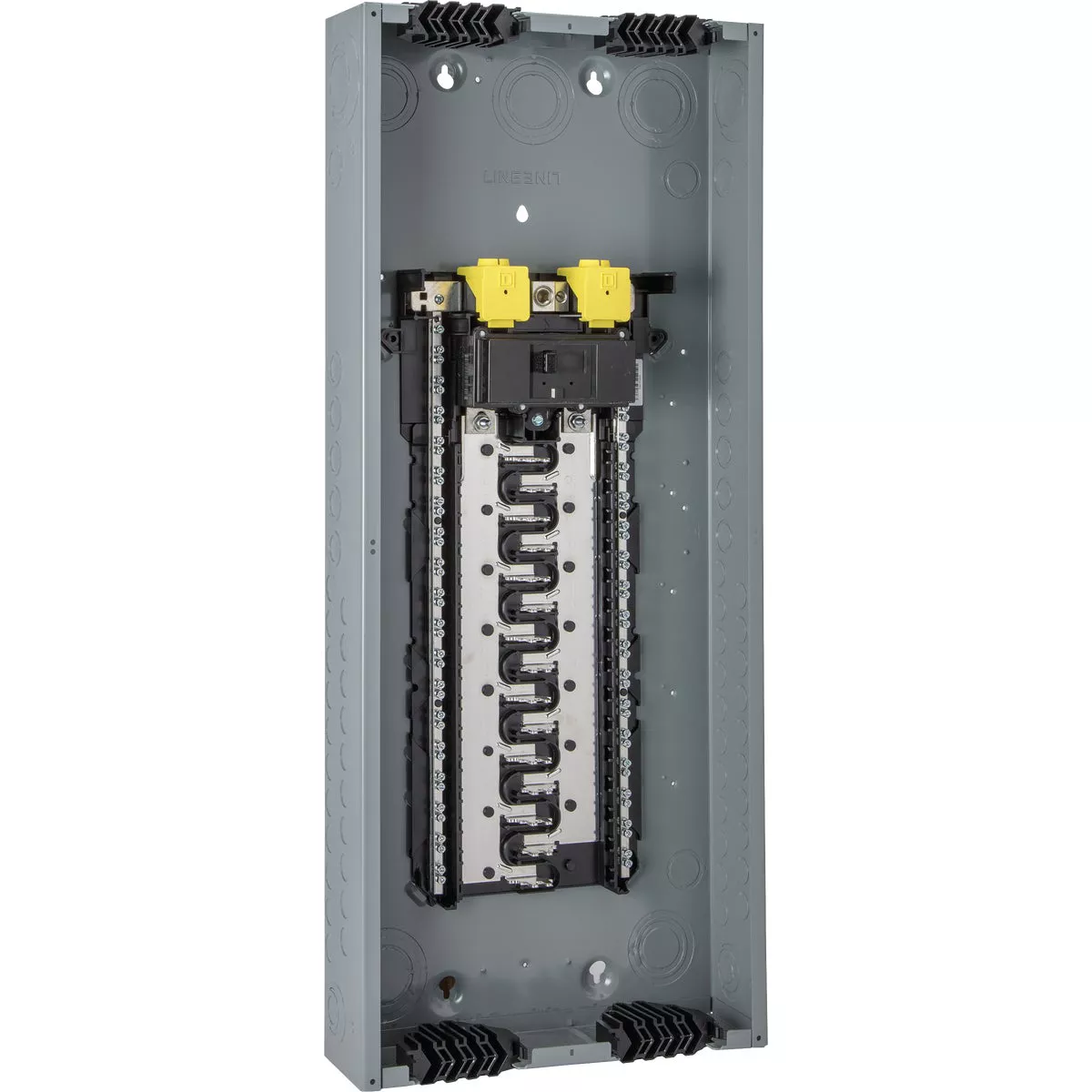

100-amp main breaker plug-on neutral-ready load center value pack featuring Qwik-Grip wire management system to speed up wire installation. Eliminates the need for almost all knock-outs, making rough-ins easy and fast. Also reduces the risk of mistakes and having to install connectors because wires slide right into the Qwik-Grip insert in seconds. Also makes adding a circuit simple. No pigtail wires for easy installation and fewer number of wires to deal with. Ideal for remodels or service changes, the Qwik-Grip insert is easily removed leaving a convenient opening to pull in the existing feeders. Includes (3) HOM120CP circuit breakers, (2) HOM230CP circuit breakers, load center with 200-amp main breaker, and Qwik-Grip assembly kit. 22,000 air short circuit current rating.
- Qwik-Grip wire management system speeds up wire installation
- Eliminates the need for almost all knock-outs, making rough-ins easy and fast
- Reduces the risk of mistakes and having to install connectors because wires slide right into the Qwik-Grip insert in seconds
- Makes adding a circuit simple
- No pigtail wires for easy installation and fewer number of wires to deal with
- Ideal for remodels or service changes
- UL Listed
Specifications

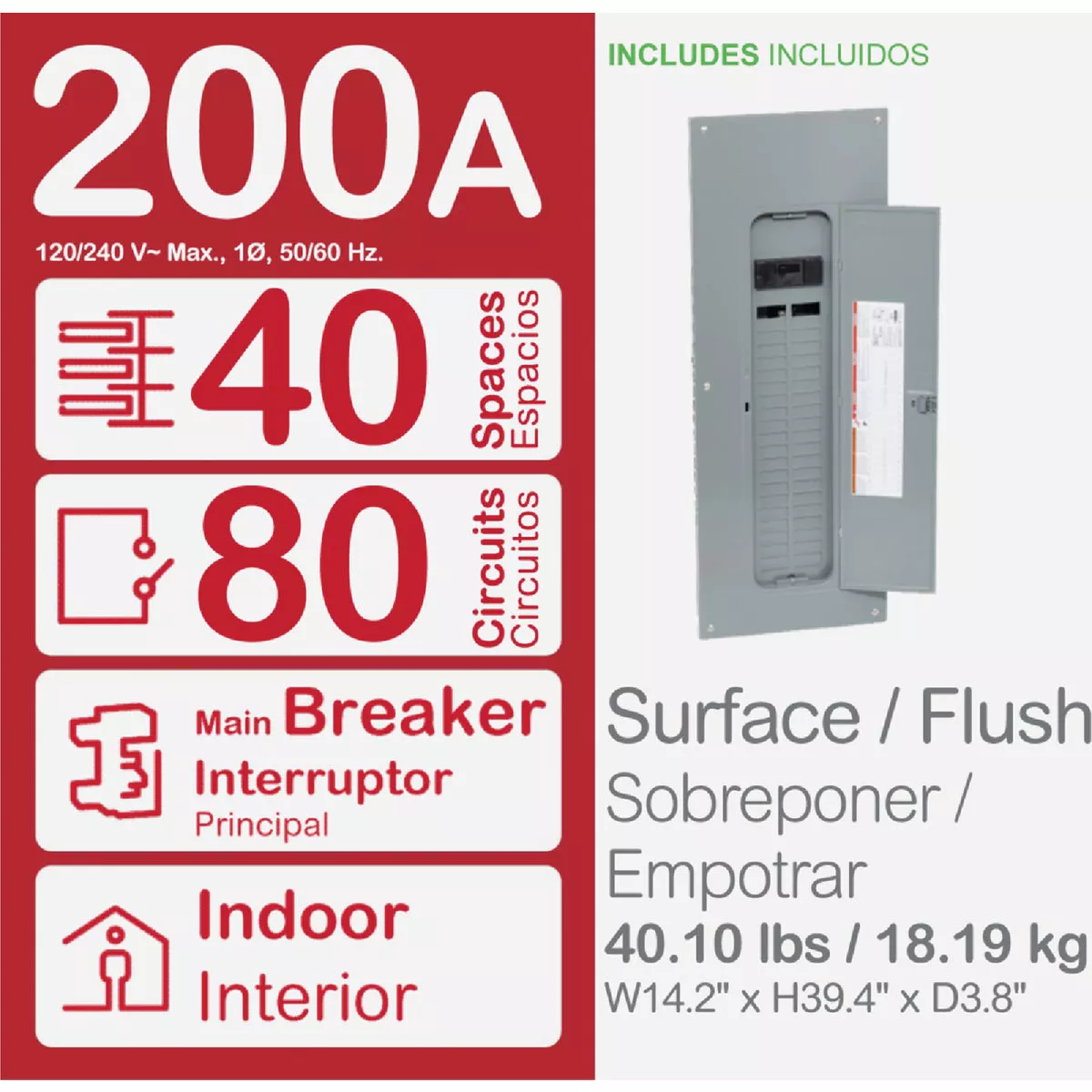

| Amperage | 200 |
| Voltage | 120/240 |
| Series | Homeline |
| Number Of Spaces | 40 |
| Enclosure Type | Indoor |
| Mount Type | Combination |
| Phase | Single |
| Wire Size | 4 AWG-250 kcmil (Aluminum & Copper) |
| Certification | UL Listed |
| Max Number of Circuits | 80 |
| Brand | Square D |
| UPC | 00785901613879 |
| Product type | Load Center |
