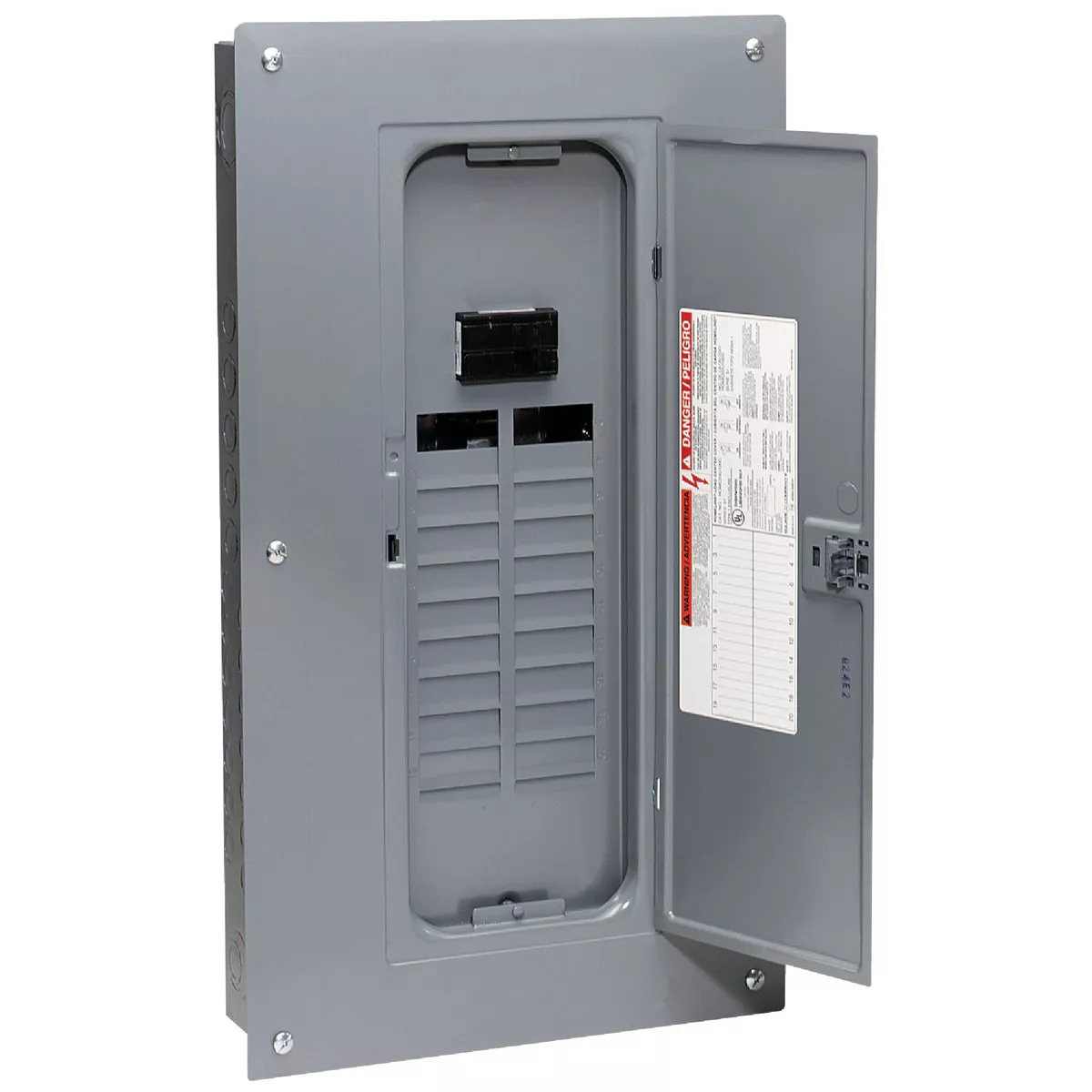

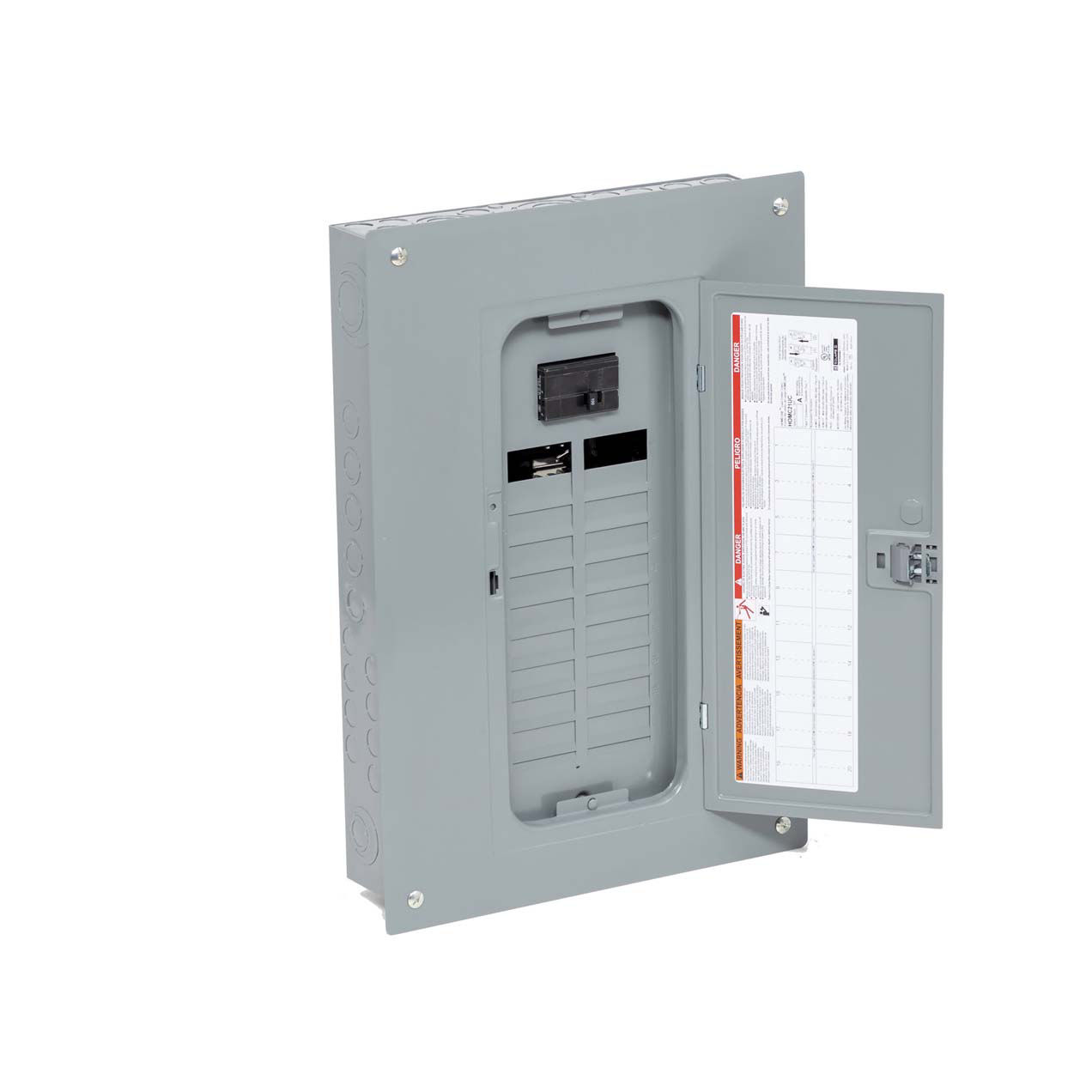

Square D Homeline 100A 20-Space 40-Circuit Indoor Main Breaker Plug-on Neutral Load Center
Model #HOM2040M100PCItem #503045UPC 00785901977377
Tap to view
Product overview
Square D Homeline convertible main breaker load center. For residential and commercial power distribution. Plug-on neutral ready and built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. 100-amp main breaker included. Engineered for fast installation and wire savings. UL (Underwriter's Laboratories) listed for residential and commercial power distribution.
- Residential and commercial grade
- Plug-on neutral ready
- Plated aluminum bus bar
- 100A main breaker included
- Engineered for fast installation and wire savings
- UL listed
Specifications
| Amperage | 100 |
| Voltage | 120/240 |
| Series | Homeline |
| Number Of Spaces | 20 |
| Enclosure Type | Indoor |
| Mount Type | Combination |
| Phase | Single |
| Wire Size | (6) #1 AWG (Copper, Aluminum) |
| Certification | UL Listed |
| Max Number of Circuits | 40 |
| Brand | Square D |
| UPC | 00785901977377 |
| Product type | Load Center |
