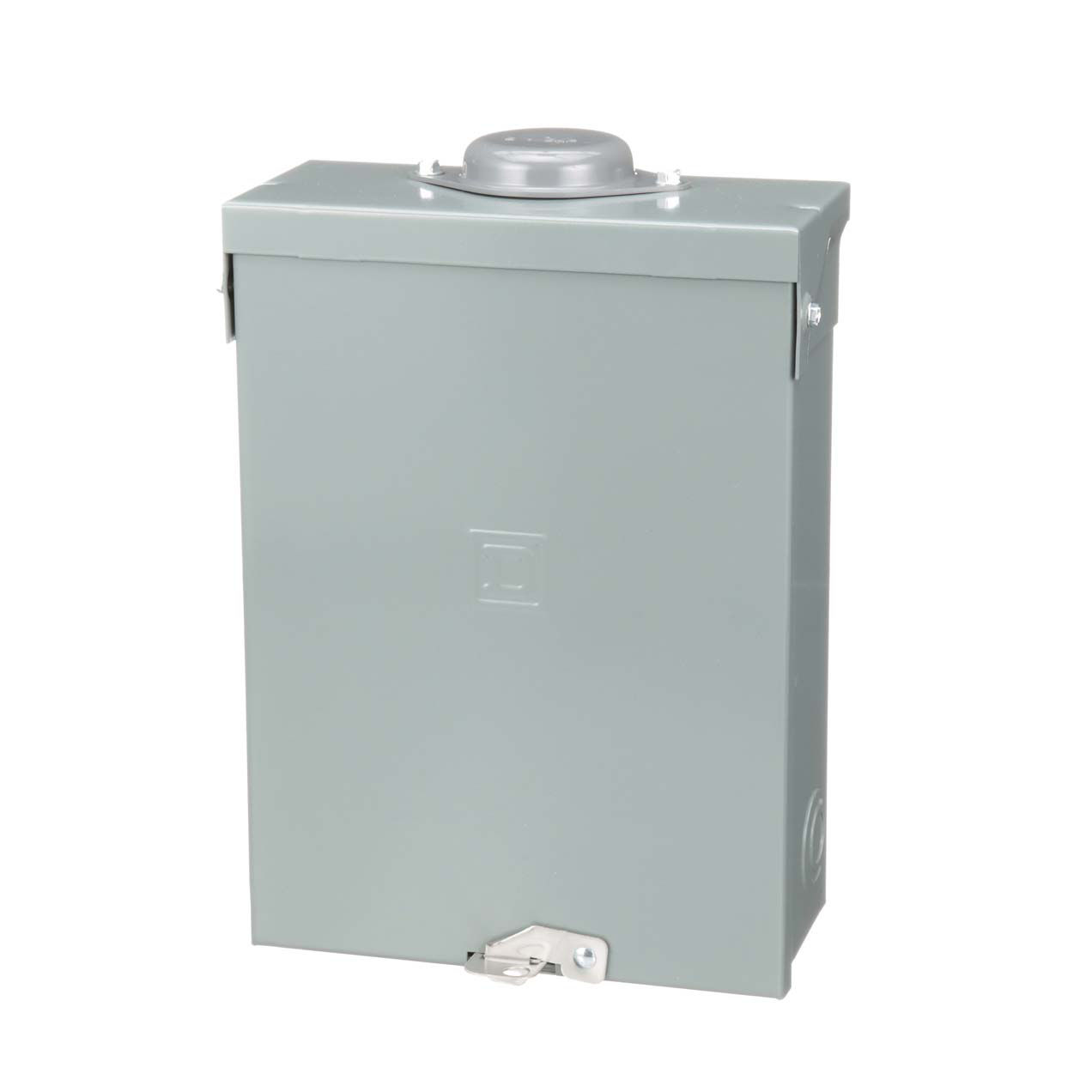

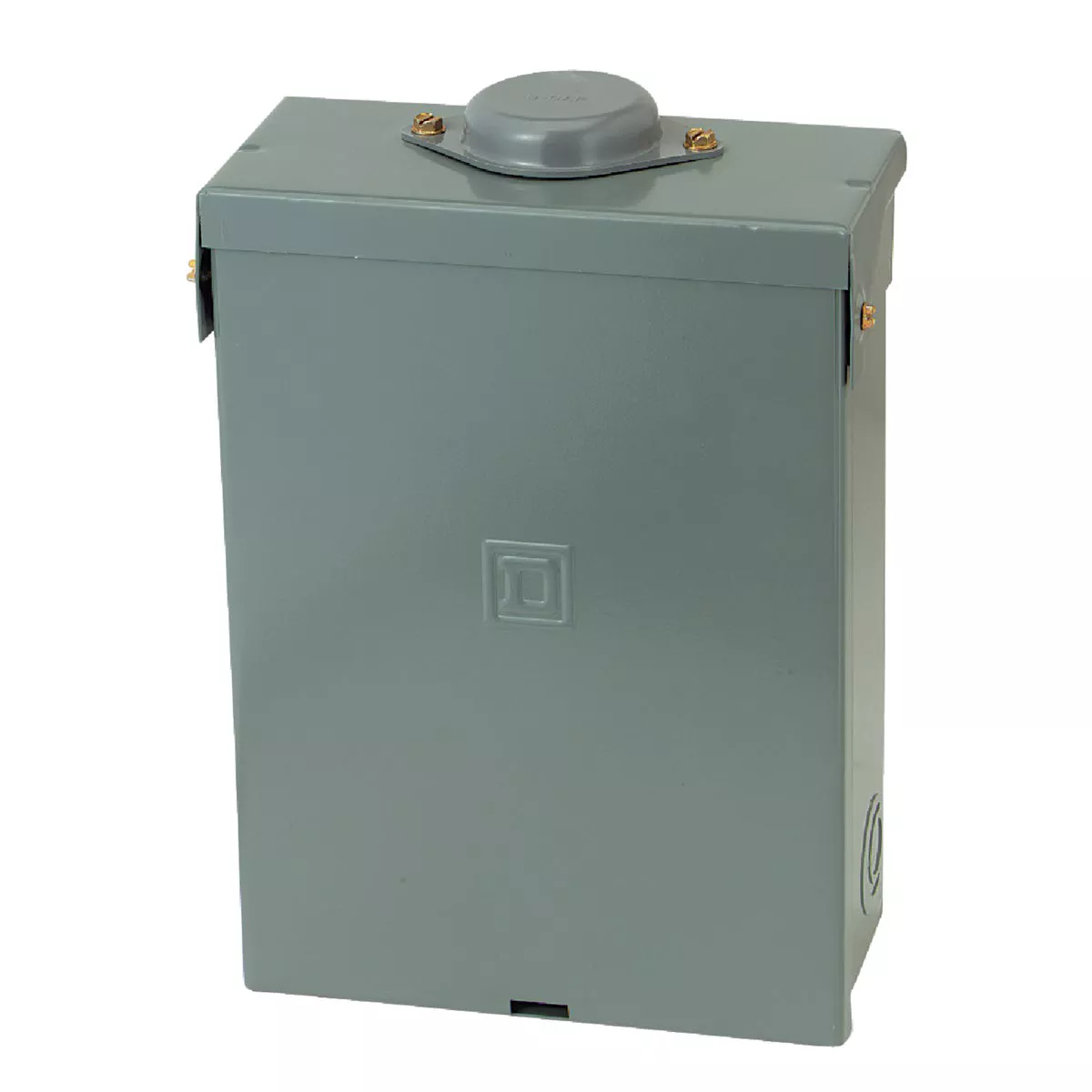

Square D Homeline 100A 6-Space 12-Circuit Raintight Main Lug Load Center
Model #HOM612L100RBCPItem #503789UPC 00047569071256
Tap to view
Product overview
Homeline, main lugs only. Can be used when spaces for more circuits are needed, as a secondary or add on load center connected to the main disconnect load center. Single-phase, 3-wire. Cover included, ground bar kits must be ordered separately. Accepts only Homeline circuit breakers. Ideal for residential and commercial power distribution. Built with plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Engineered for fast installation and wire savings. For outdoor use.
- Ideal for when spaces for more circuits are needed, as a secondary or add on load center connected to the main disconnect load center
- Single-phase, 3-wire
- Cover included
- Ideal for residential and commercial power distribution
- Built with plated, aluminum bus bar
- Engineered for fast installation and wire savings
- For outdoor use
- UL Listed
Specifications
| Amperage | 100 |
| Voltage | 120/240 |
| Series | Homeline |
| Number Of Spaces | 6 |
| Enclosure Type | Raintight |
| Mount Type | RB |
| Phase | Single |
| Wire Size | (8) #1 AWG (Copper, Aluminum) |
| Certification | UL Listed |
| Max Number of Circuits | 12 |
| Brand | Square D |
| UPC | 00047569071256 |
| Product type | Load Center |
