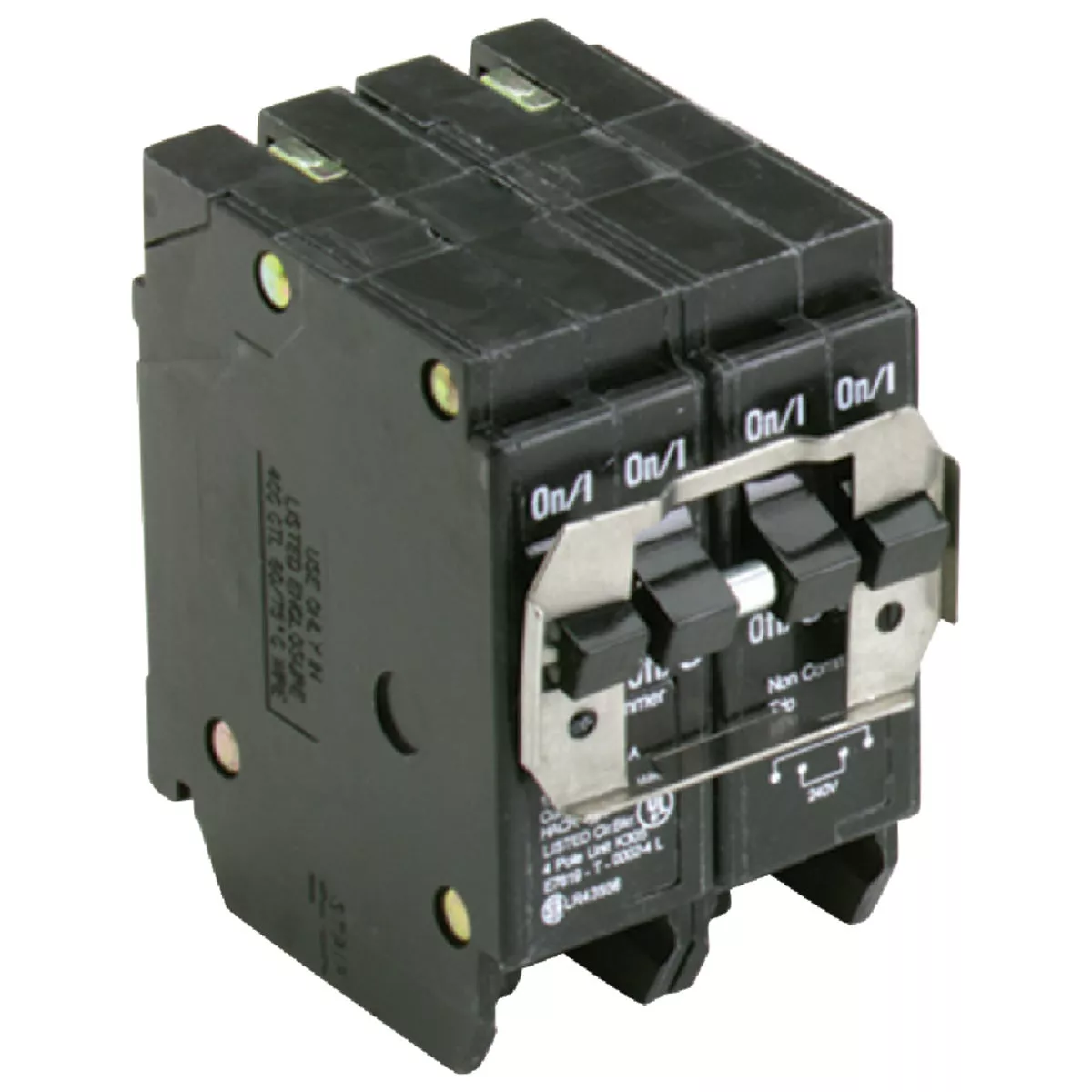

Eaton BQ 20A/20A Quad-Pole Standard Trip Quadplex Circuit Breaker
Model #BQ220220 UPC 00786676370752
258197
Tap to view
Product overview
BQ quadplex circuit breaker for use in load centers with notched bus bars. Allows 2 options for use: (2) 2-pole or (1) 2-pole and (2) 1-pole breakers in 2 spaces. 120 volt/240 volt. For use in BR series panels. UL (Underwriter's Laboratories) listed.
- Compatible with load centers with notched bus bars
- Allows 2 options for use: (2) 2-pole or (1) 2-pole and (2) 1-pole breakers in 2 spaces
- UL Listed
- 20/20, 4
Specifications
| Amperage | 20/20 |
| Voltage | 120/240 |
| Number of Poles | 4 |
| Mount Type | Plug-In |
| Wire Size | #14-4 AWG |
| Certification | UL Listed |
| Interruption Type | Standard Trip |
| Frame Size | 2-Space |
| Width (In.) | 2 |
| Brand | Eaton |
| UPC | 00786676370752 |
| Product type | Circuit Breaker |
