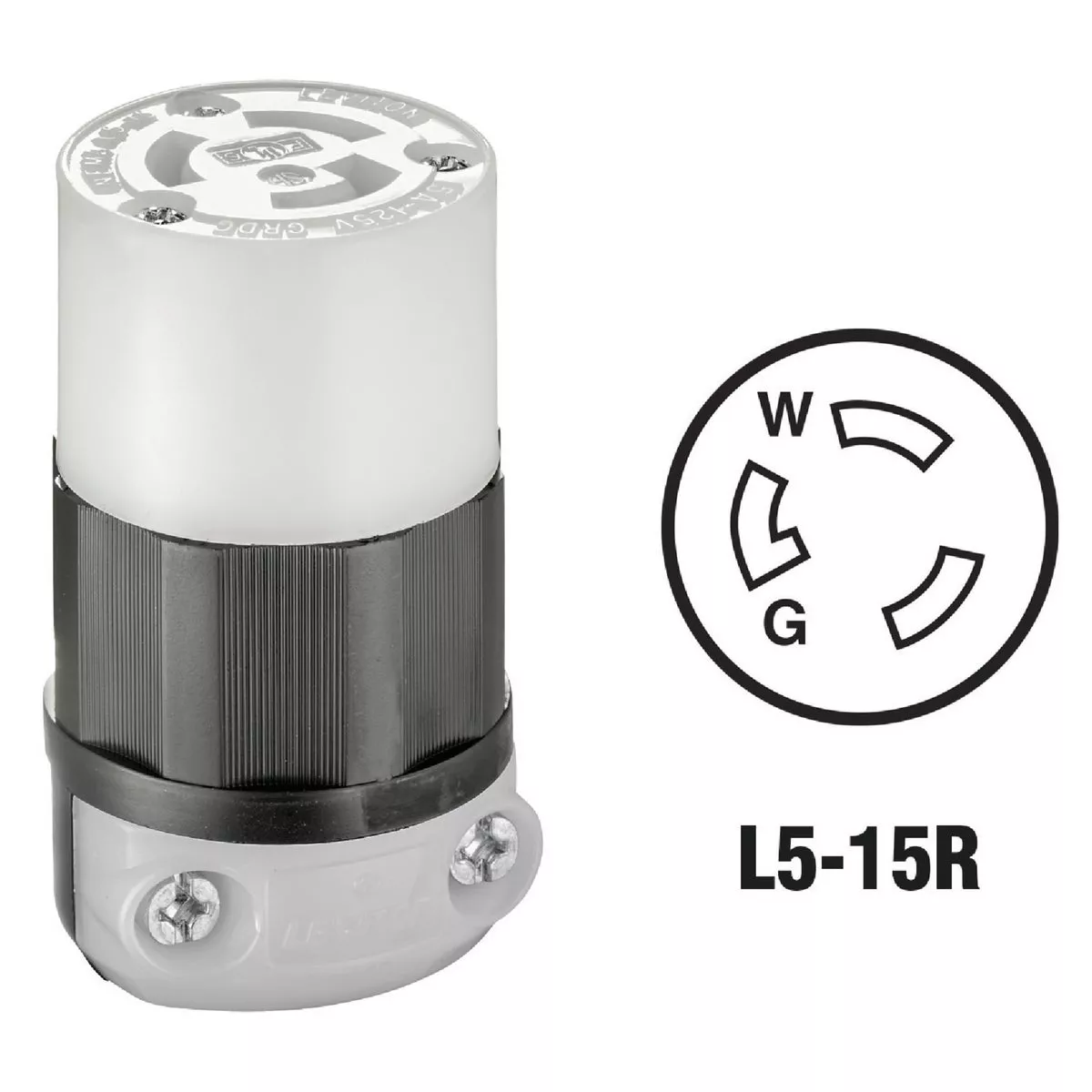

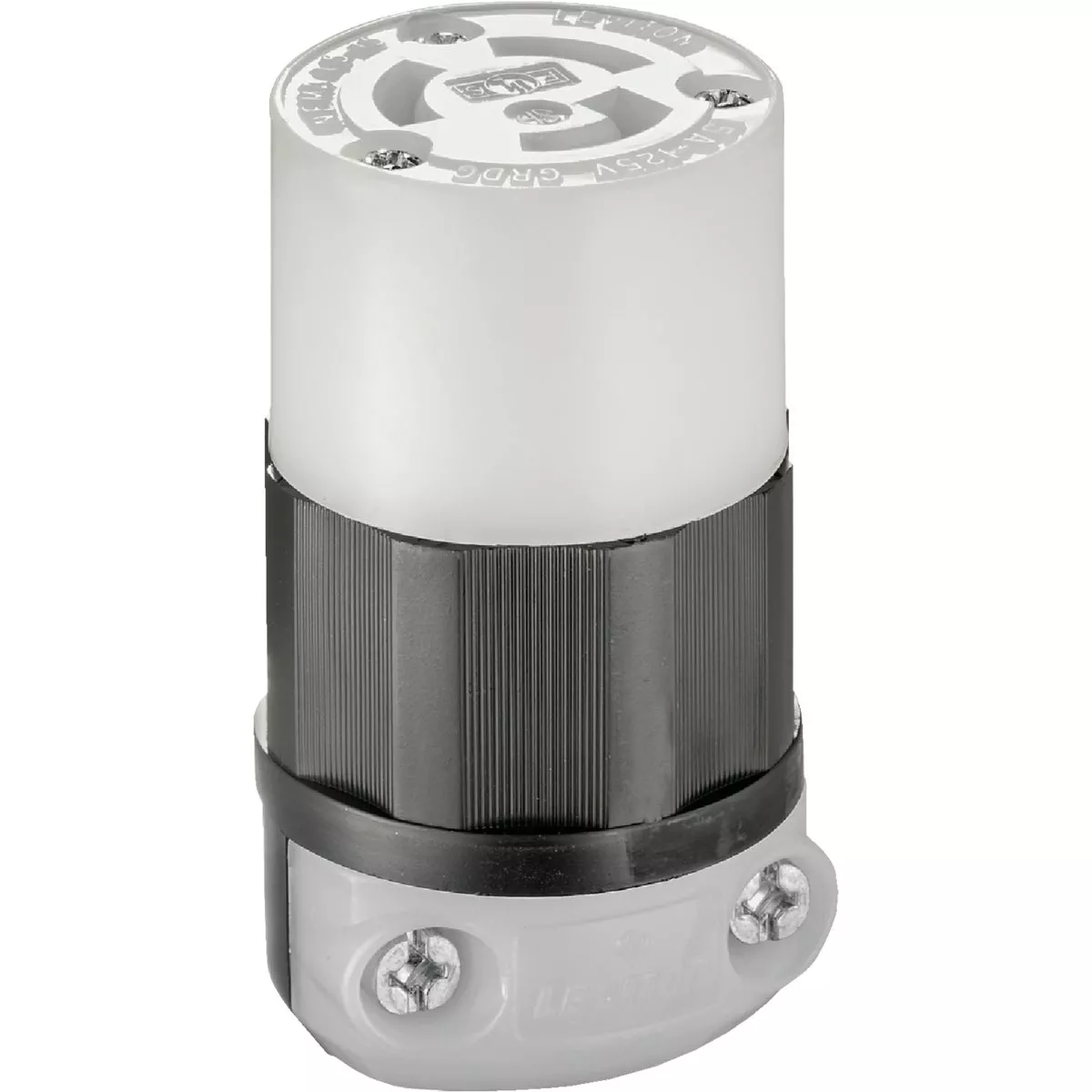

Leviton 15A 125V 3-Wire 2-Pole Industrial Grade L5-15R Locking Cord Connector
Model #R61-04729-0BX UPC 00078477034521
Item #512005
Tap to view
Product overview
Industrial grade black and white locking cord connector. Features solid brass blades and contacts, zinc-plated steel assembly screws, and a super tough nylon body. Lifetime warranty. UL (Underwriter's Laboratories) and CSA (Canadian Standards Association) Standards and Certifications.
- NEMA L5-15R
- Super tough nylon body resists damage from severe impact, abrasion and chemicals
- Solid brass blades and contacts feature improved conductivity, low resistance, low heat, and long life
- Internal wiring chambers isolate individual conductors to prevent flashover, arcing, and stray strands of wire
Specifications
| Color | Black/White |
| Material | Nylon |
| Amperage | 15 |
| Voltage | 125 |
| Number Of Wires | 3 |
| Number of Poles | 2 |
| Grade | Industrial |
| Grounding | Yes |
| NEMA Configuration | L5-15R |
| Cord Diameter | 18 to 10 AWG |
| For Use With | Model No. 061-04720-00C |
| Brand | Leviton |
| UPC | 00078477034521 |
| Product type | Locking Cord Connector |
