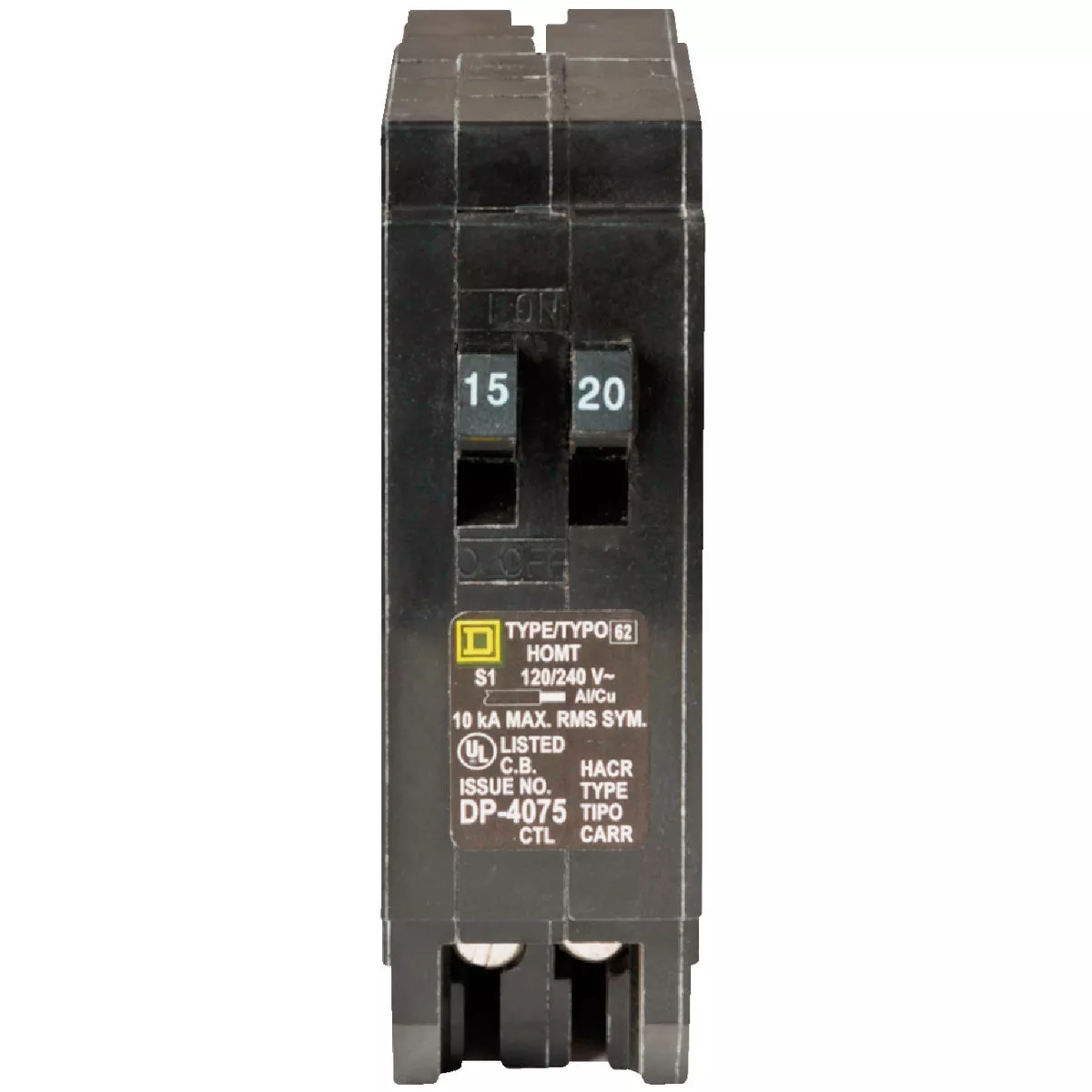

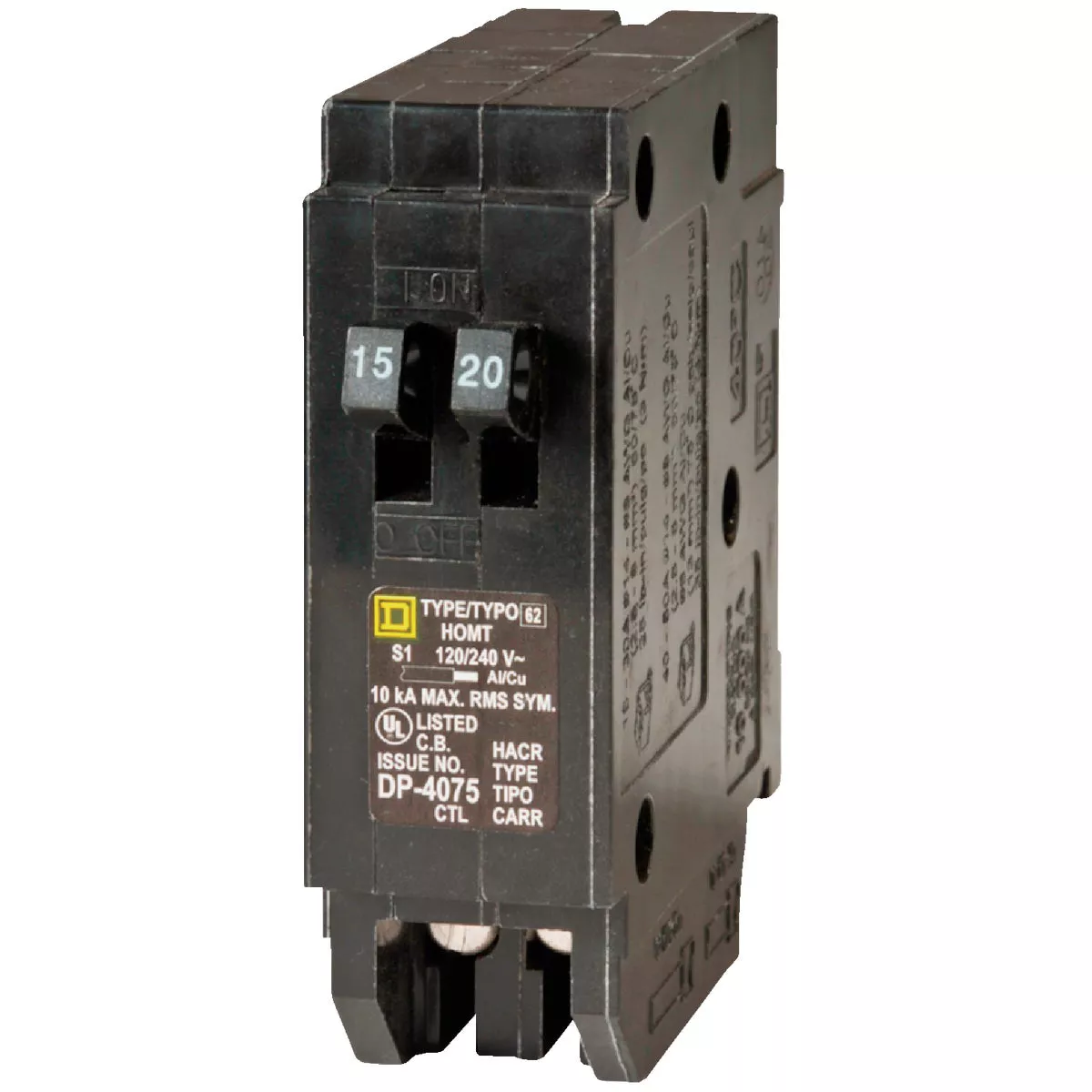

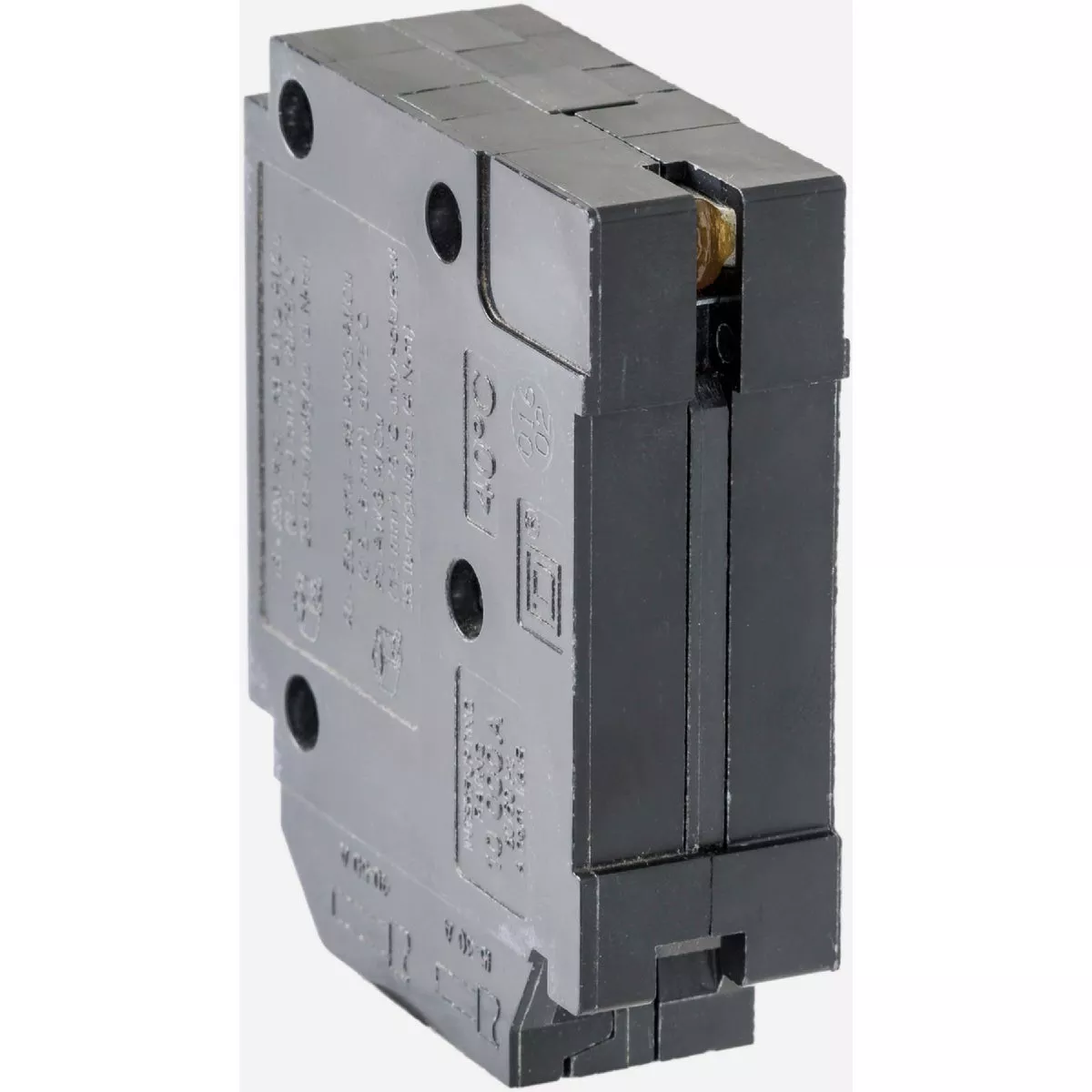

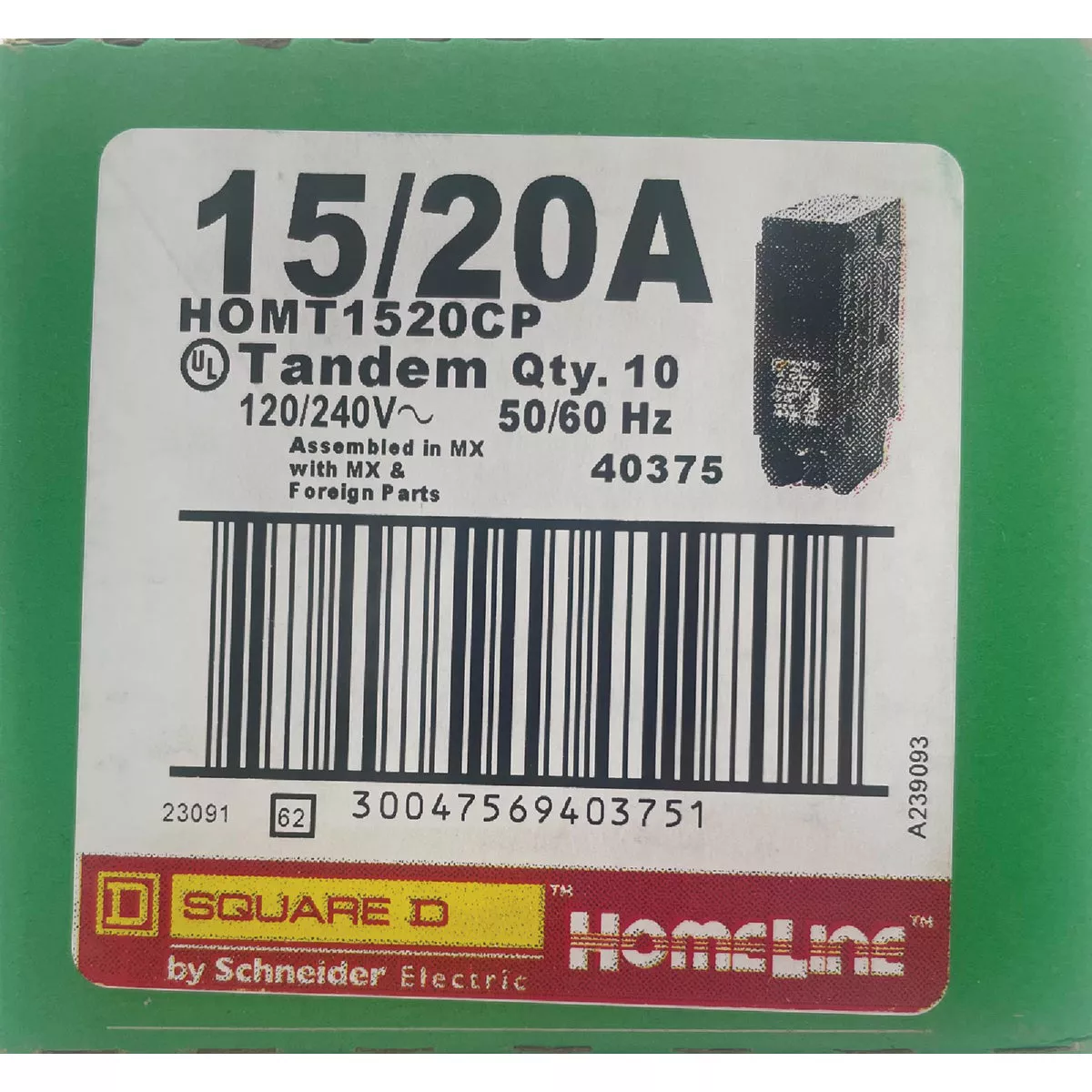

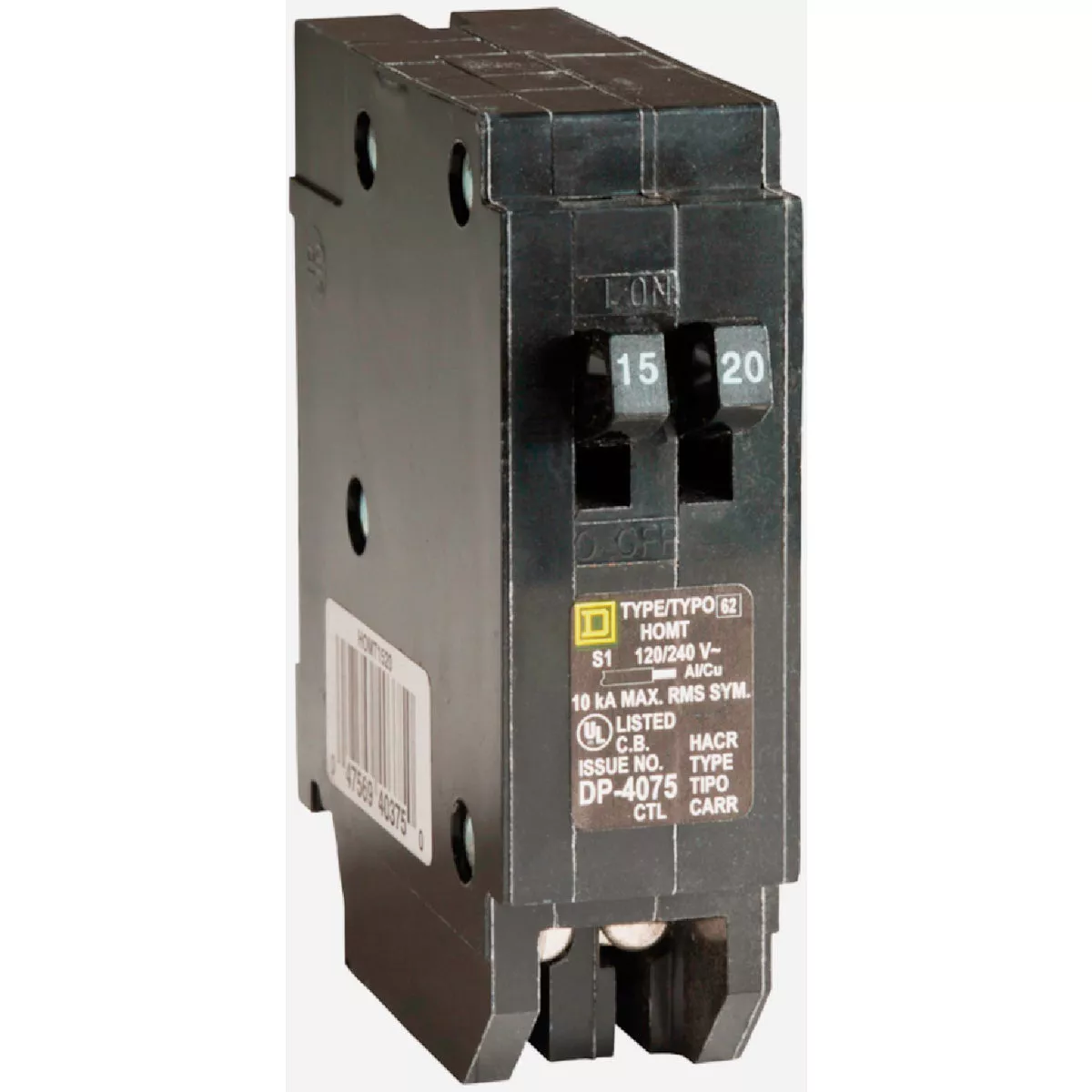

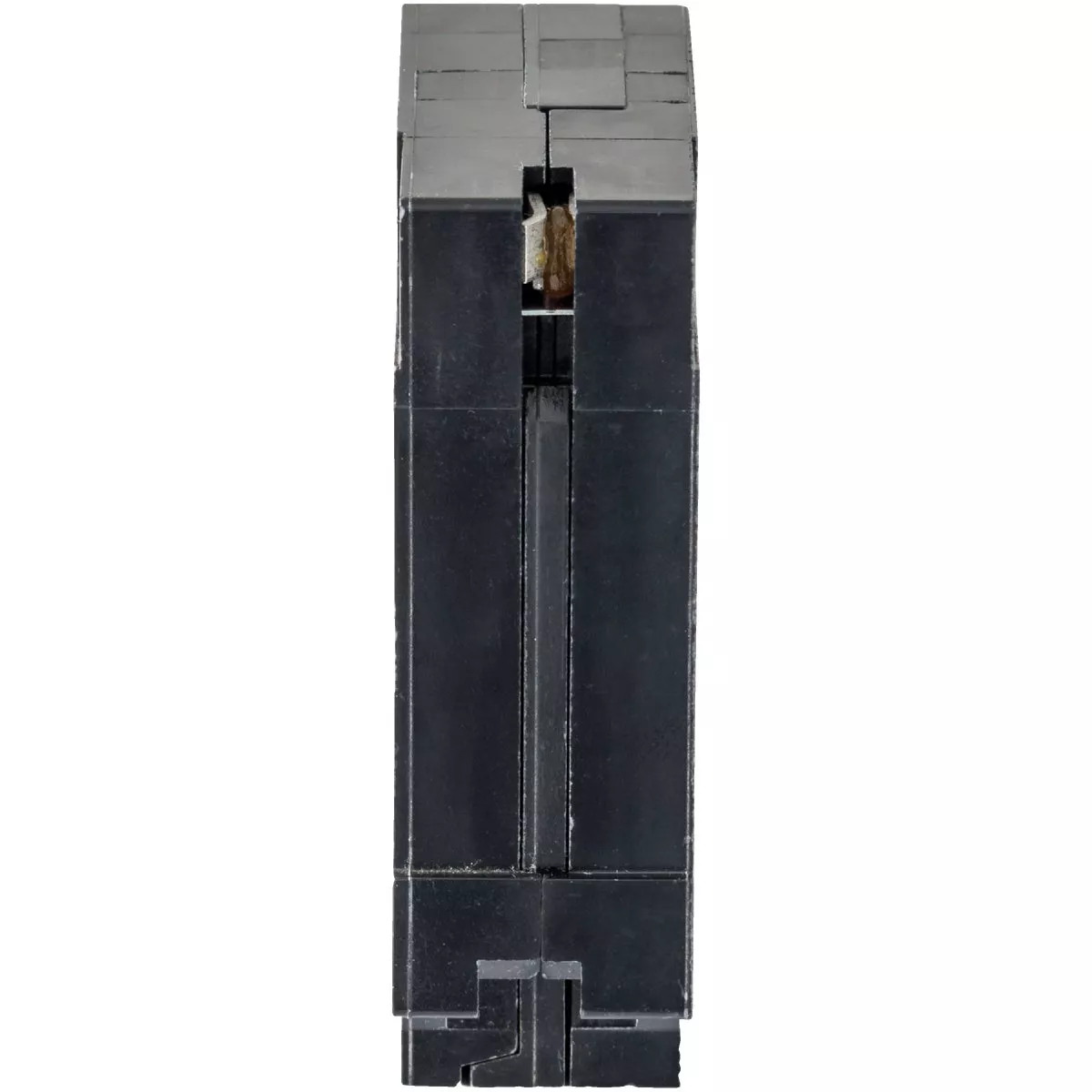

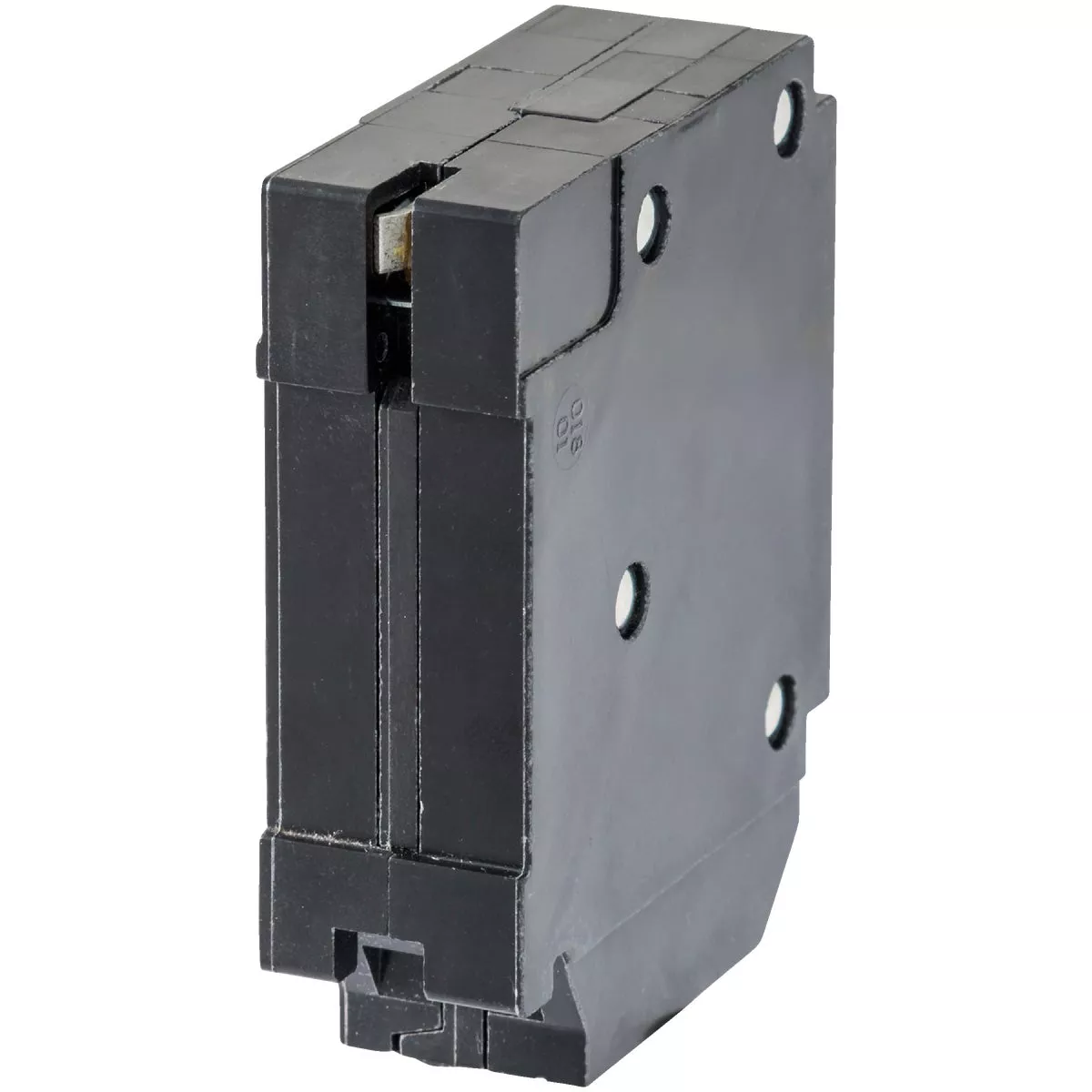

Square D Homeline 15A/20A Twin Single-Pole Standard Trip Tandem Circuit Breaker
Model #HOMT1520CP UPC 00047569403750
216622
Tap to view
Product overview
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The HOMT circuit breaker is two single pole thermal magnetic circuit breakers manufactured in tandem. This tandem breaker occupies only one HOM pole space. Each single pole HOMT plug in circuit breaker provides an individual switching and tripping action. This circuit breaker provides 10 kA breaking capacity. Will accept 14 AWG to 8 AWG copper or aluminum wire. UL listed.
- Used for overload and short-circuit protection of electrical systems
- Compatible with Homeline load centers and CSED devices
- 2 single-poles requiring 1 space
- Designed exclusively for the residential market
- ANSI/UL Listed
Specifications
| Amperage | 15/20 |
| Voltage | 120/240 |
| Number Of Poles | Twin |
| Mount Type | Plug-In |
| Wire Size | #14-8 AWG |
| Certification | UL Listed |
| Interruption Type | Standard Trip |
| Frame Size | 1-Space |
| Width (In.) | 1 |
| Brand | Square D |
| UPC | 00047569403750 |
| Product type | Circuit Breaker |
