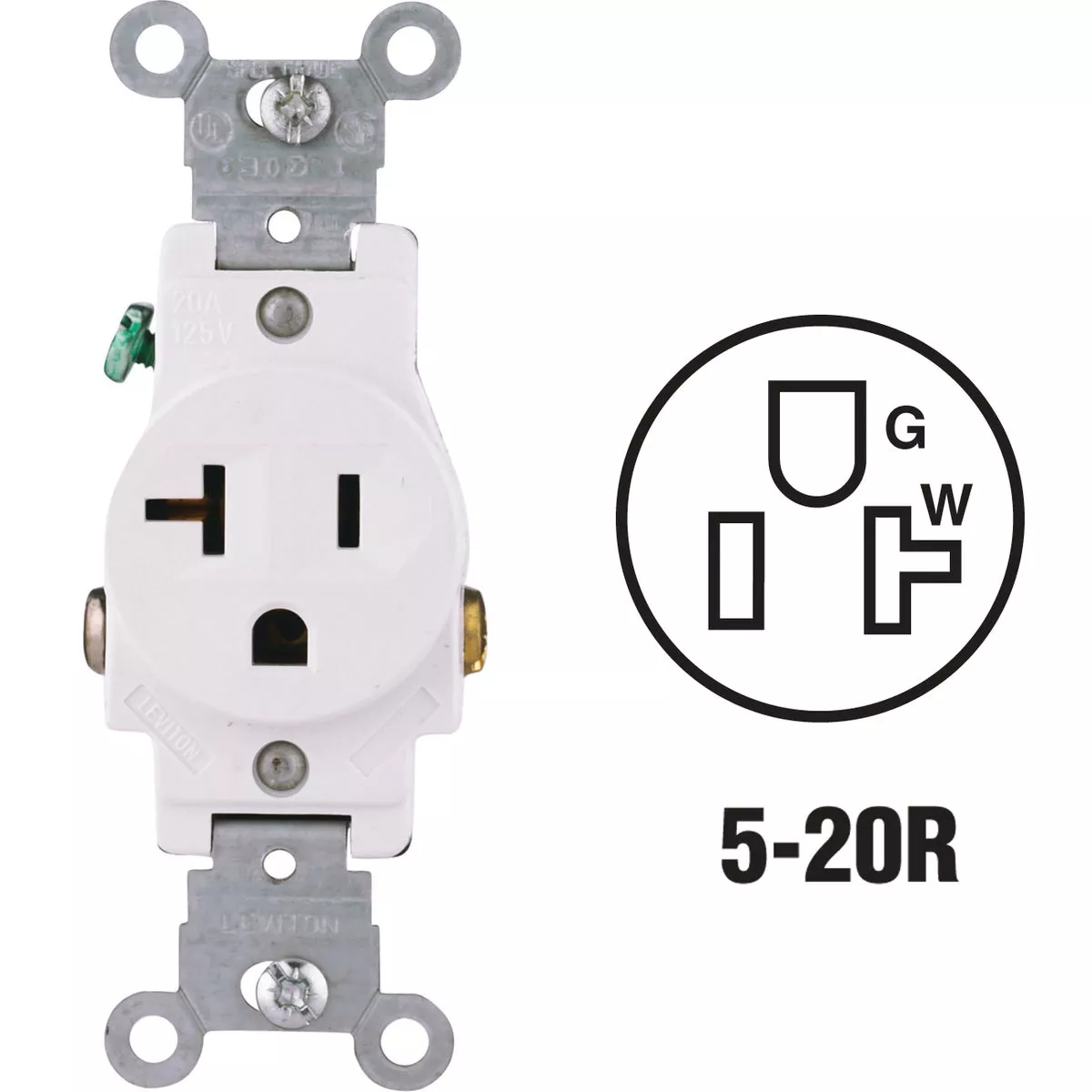

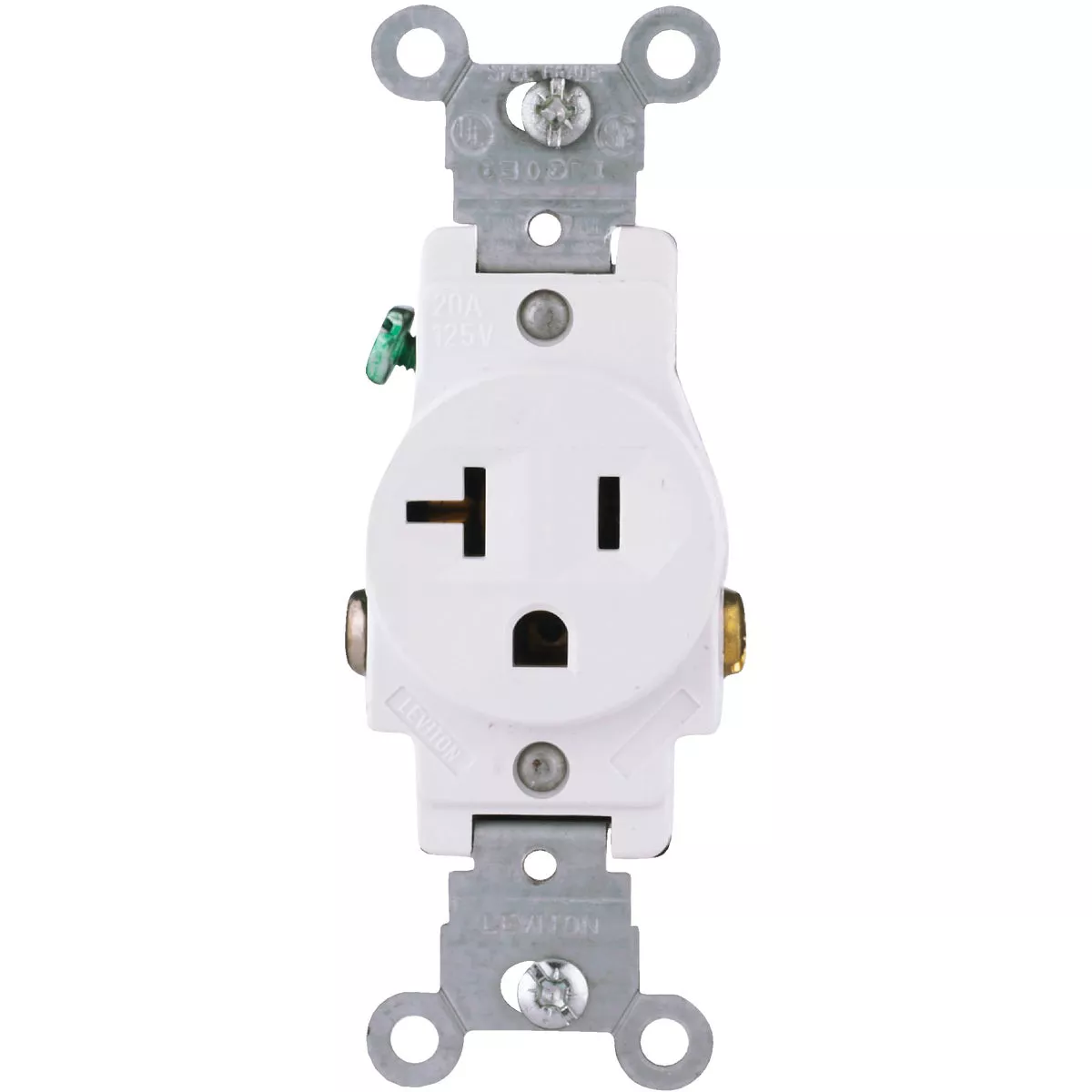

Leviton 20A White Commercial Grade 5-20R Shallow Single Outlet
Model #S12-5801-KWS UPC 00078477428948
Item #512702
Tap to view
Product overview
Commercial specification grade single outlet. Features a shallow design for maximum wiring room. Side wired, large-head terminal screws accept up to No. 10 copper wire. Double-wire power contacts for maximum conductivity and plug retention, captive mounting screws. Washer-type break-off plaster ears, break-off fins for 2-circuit conversion. 125 volt. Limited 10-year warranty. UL (Underwriter's Laboratories) listed.
- Commercial specification grade
- Shallow design for maximum wiring room
- Side wired, large-head terminal screws accept up to No. 10 copper wire
- Double-wire power contacts for maximum conductivity and plug retention, captive mounting screws
- Washer-type break-off plaster ears, break-off fins for 2-circuit conversion
- Limited 10-year warranty
- UL Listed
Specifications
| Color | white |
| Amperage | 20 |
| Voltage | 125 |
| Number Of Poles | 2 |
| Grade | Commercial |
| Certification | UL Listed |
| NEMA Configuration | 5-20R |
| Number Of Wires | 3 |
| Brand | Leviton |
| UPC | 00078477428948 |
| Product type | Single Outlet |
