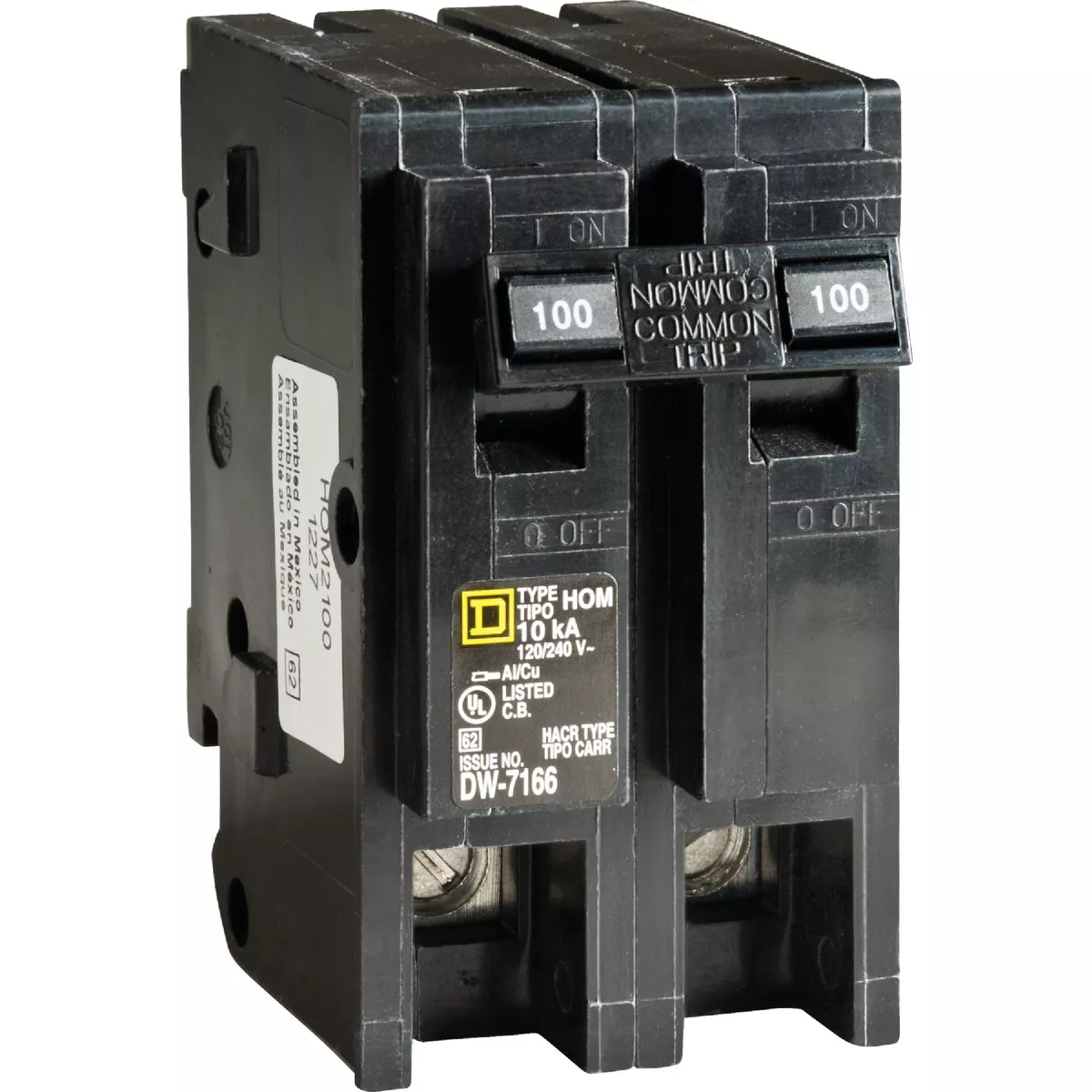

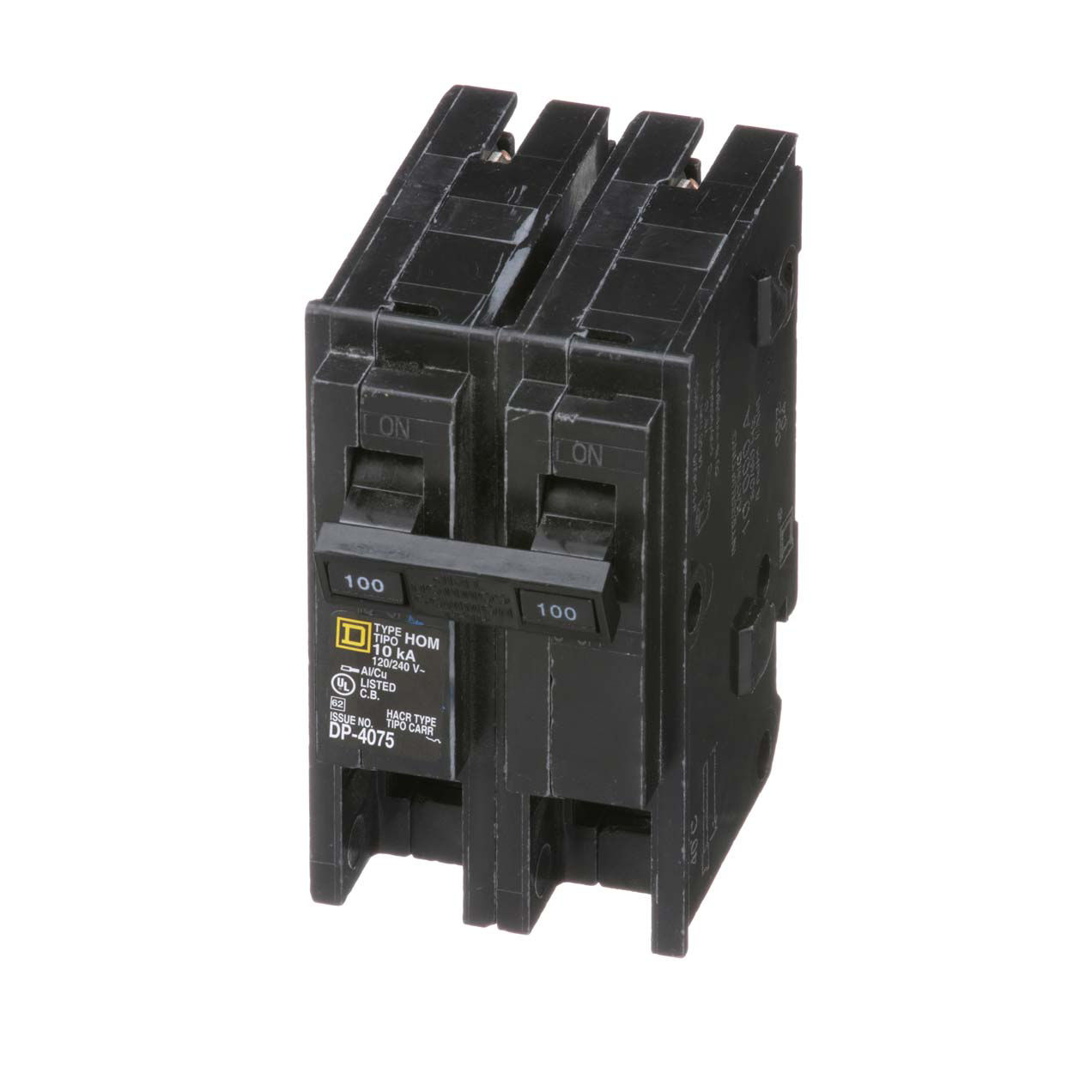

Square D Homeline 100A Double-Pole Standard Trip Main Breaker
Model #HOM2100CP UPC 00047569062858
820563
Tap to view
Product overview
Homeline main breaker. Ideal for overload and short-circuit protection of electrical systems. Compatible with Homeline load centers and CSED devices. ANSI (American National Standards Institute) certified and UL (Underwriter's Laboratories) listed is rated for 120 volt/240 volt and 10,000 AIR.
- Ideal for overload and short-circuit protection of electrical systems
- Compatible with Homeline load centers and CSED devices
- 100, 2
- ANSI/UL Listed
Specifications
| Amperage | 100 |
| Voltage | 120/240 |
| Number of Poles | 2 |
| Mount Type | Plug-In |
| Wire Size | #4 AWG to 2.0 AWG |
| Certification | ANSI/UL Listed |
| Interruption Type | Standard Trip |
| Frame Size | 2-Space |
| Width (In.) | 2 |
| Height (In.) | 3.13 |
| Depth (In.) | 2.98 |
| Brand | Square D |
| UPC | 00047569062858 |
| Product type | Main Breaker |
