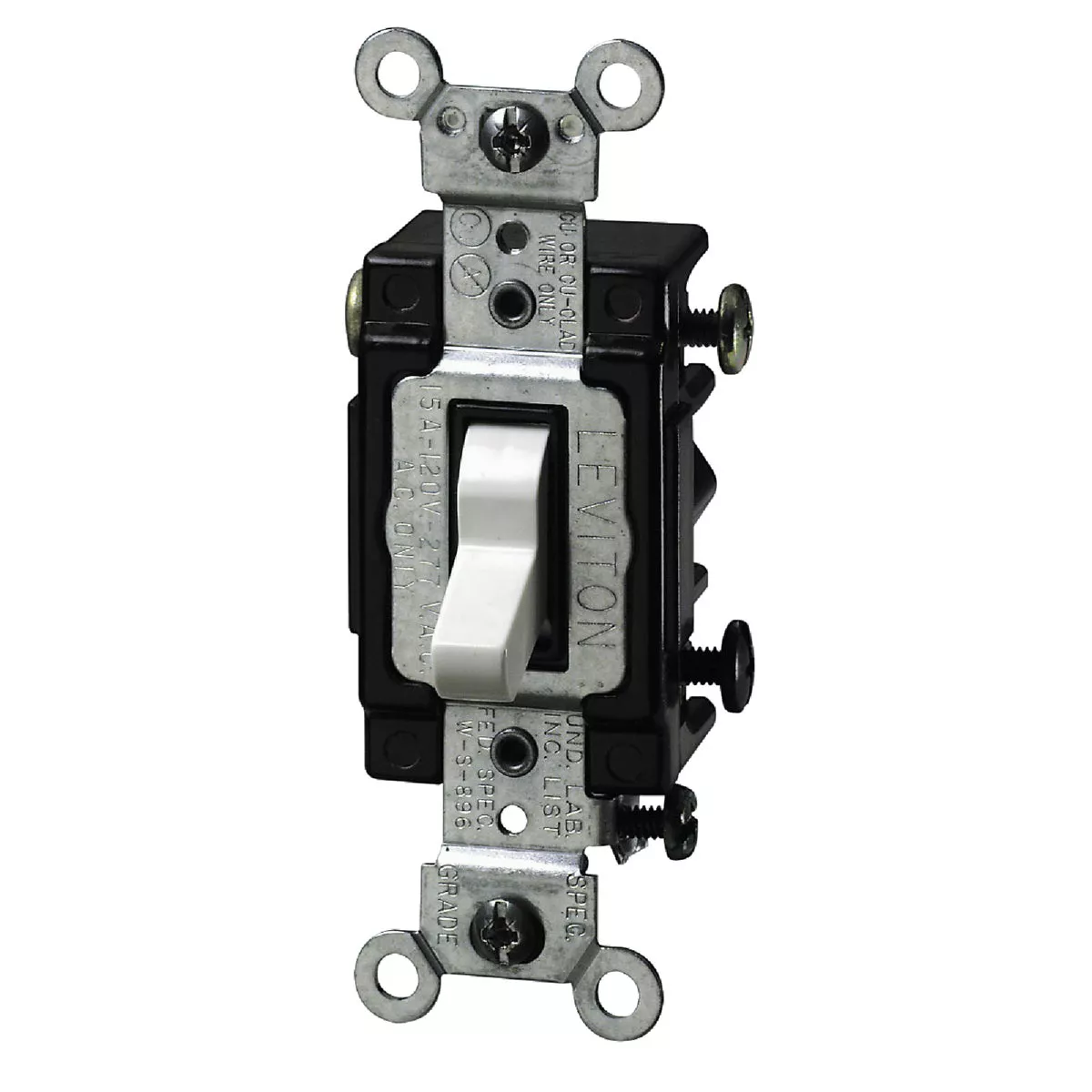

Leviton Toggle White 15A Lighted Quiet 3-Way Switch
Model #S02-5503-LHWItem #515000UPC 00078477823590
Tap to view
Product overview
Commercial Specification Grade. Lighted long-life toggle switch with captive mounting screws for fast installation stays lit when the power goes off. Large-head terminal screws backed out and staked for fast side wiring of up to No. 10 copper wire. Heavy-gauge rust-resistant steel mounting strap, break-off plaster ears for best alignment. Large silver-cadmium oxide contacts insure long life. 15A/120/277V; 1/2 HP at 120V, 2 HP at 240V. 3-way. Limited 10-year warranty. UL (Underwriter's Laboratories) listed.
- Commercial specification grade
- Lighted long-life toggle switch with captive mounting screws for fast installation stays lit when the power goes off
- Large-head terminal screws backed out and staked for fast side wiring of up to No. 10 copper wire
- Heavy-gauge rust-resistant steel mounting strap, break-off plaster ears for best alignment
- Large silver-cadmium oxide contacts insure long life
- Limited 10-year warranty
- UL Listed
Specifications
| Color | WHITE |
| Amperage | 15 |
| Voltage | 120/277 |
| Certification | UL Listed |
| Switch Type | Toggle |
| Brand | Leviton |
| UPC | 00078477823590 |
| Product type | 3-Way Switch |
