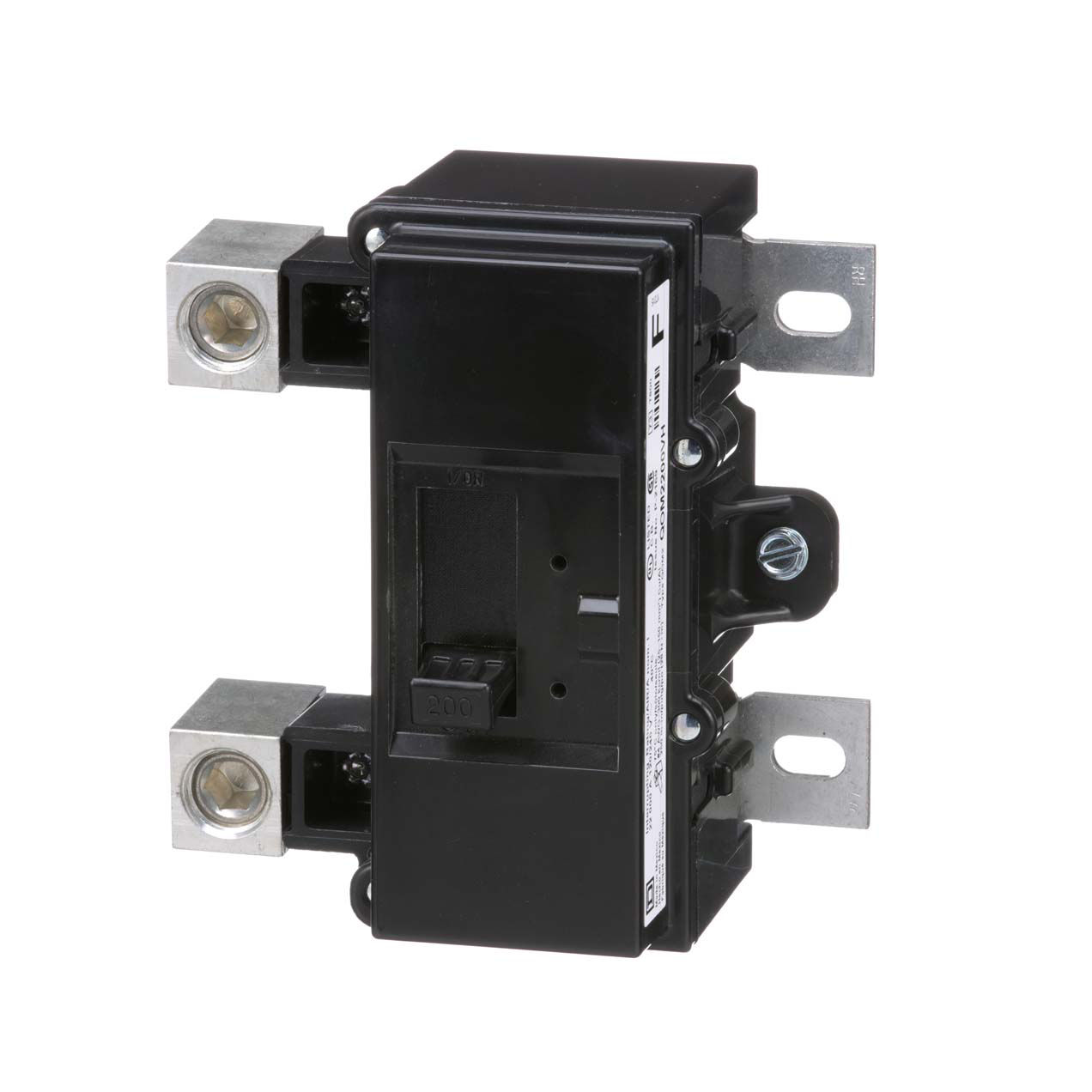

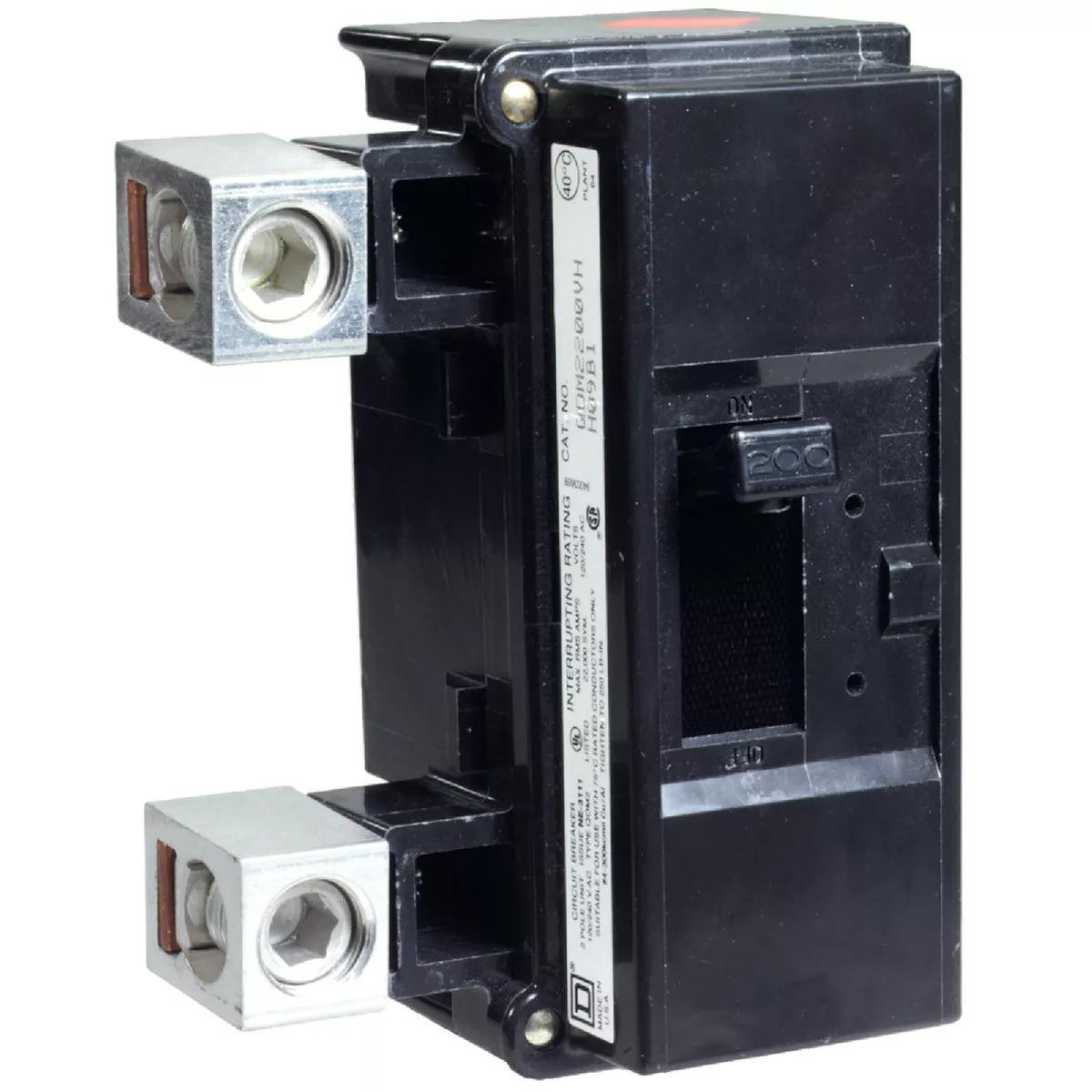

Square D QO 200A Double-Pole Standard Trip Main Breaker
Model #QOM2200VH UPC 00785901004066
Item #516686
Tap to view
Product overview
Field installable main breaker for QO and newer models of Homeline load centers with straight in feed. Protects breaker panel in a load center. Used for overload and short-circuit protection of electrical systems. Compatible with QO and Homeline load centers, CSED devices, and NQOD panel boards rated for 100 to 125 amps. ANSI (American National Standards Institute) certified and UL (Underwriter's Laboratories) listed for 120 volt/240 volt and 22,000 AIR.
- Field installable main breaker for QO and newer models of Homeline load centers with straight in feed
- Compatible with QO and Homeline load centers, CSED devices, and NQOD panel boards rated for 100A to 125A
- 200, 2
- ANSI/UL Listed
Specifications
| Amperage | 200 |
| Voltage | 120/240 |
| Number Of Poles | 2 |
| Mount Type | Bolt-On |
| Wire Size | #4 AWG to 300 KCMIL |
| Certification | ANSI/UL Listed |
| Interruption Type | Standard Trip |
| Frame Size | 2-Space |
| Width (In.) | 2.5 |
| Height (In.) | 3.5 |
| Depth (In.) | 2.91 |
| Brand | Square D |
| UPC | 00785901004066 |
| Product type | Main Breaker |
