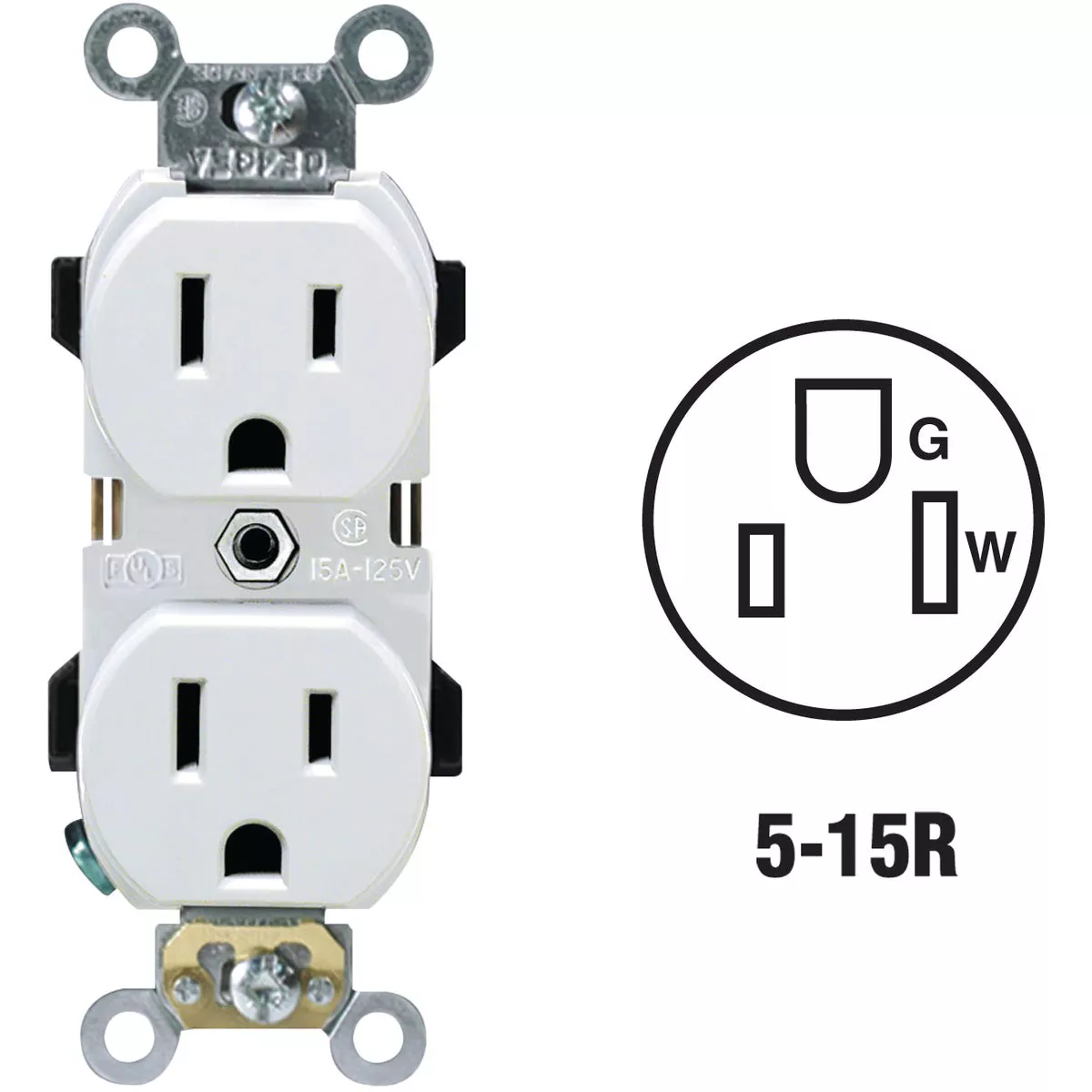

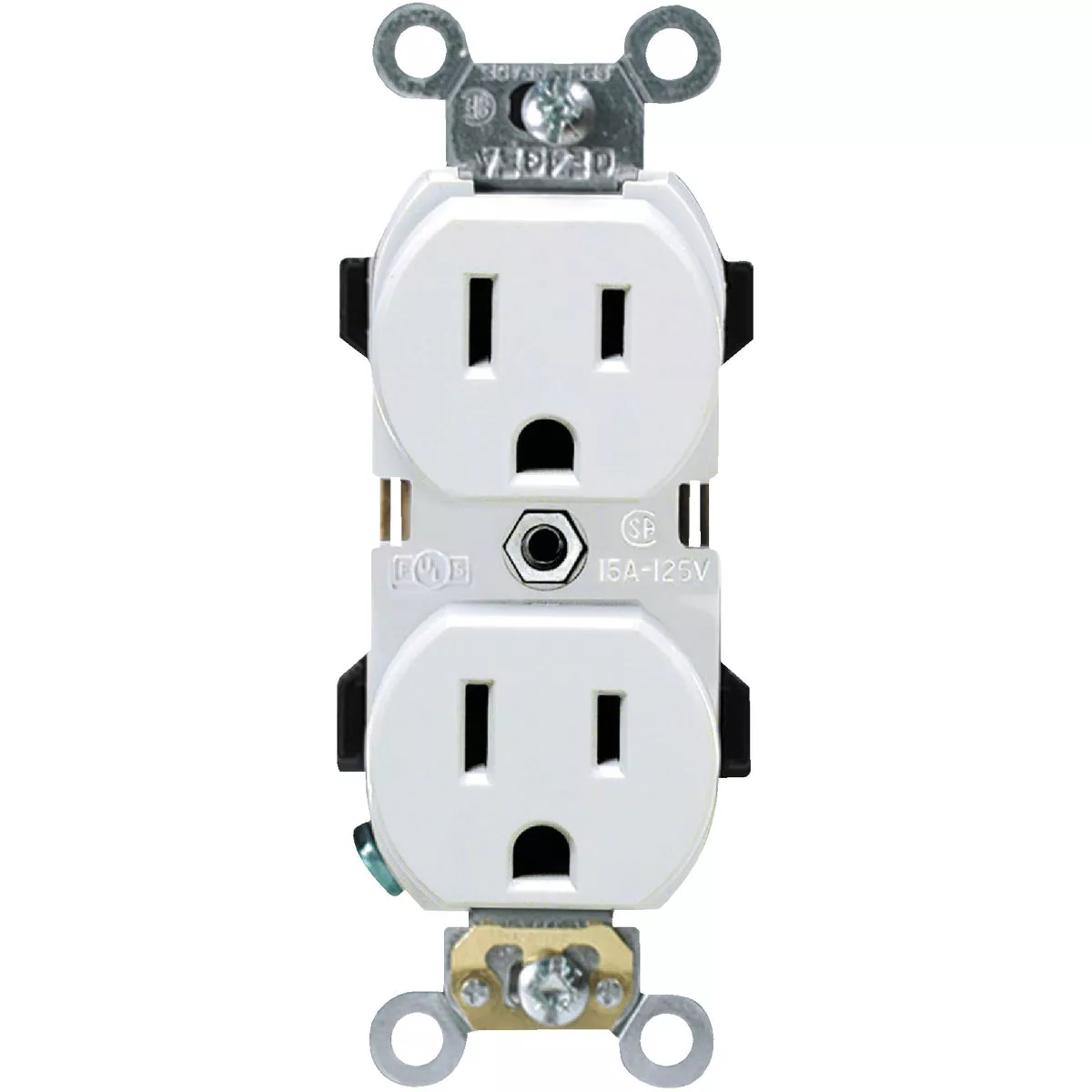

Leviton 15A White Industrial Grade 5-15R Duplex Outlet
Model #R72-05252-0WS UPC 00078477496107
Item #518166
Tap to view
Product overview
Industrial Specification Grade duplex outlet featuring a nylon face and base. Back and side wired, 4 large-head brass spring loaded terminal screws with steel wire connectors and 8 back wiring holes for maximum wiring convenience. Wire containment rib, groundamatic self-grounding strap locked into base, green grounding screw. Meets all requirements of latest Fed Spec. WC-596F. 15 amps/125 volts, NEMA (National Electrical Manufacturer's Association) 5-15R. UL (Underwriter's Laboratories) listed. Limited 10-year warranty.
- Industrial specification grade
- Nylon face and base
- Back and side wired, 4 large-head brass spring loaded terminal screws with steel wire connectors and 8 back wiring holes for maximum wiring convenience
- Wire containment rib, groundamatic self-grounding strap locked into base, green grounding screw
- Meets all requirements of latest Fed Spec. WC-596F
- Limited 10-year warranty
- UL Listed
Specifications
| Color | WHITE |
| Amperage | 15 |
| Voltage | 125 |
| Number Of Poles | 2 |
| Grade | Industrial |
| Certification | UL Listed |
| NEMA Configuration | 5-15R |
| Number Of Wires | 3 |
| Brand | Leviton |
| UPC | 00078477496107 |
| Product type | Duplex Outlet |
