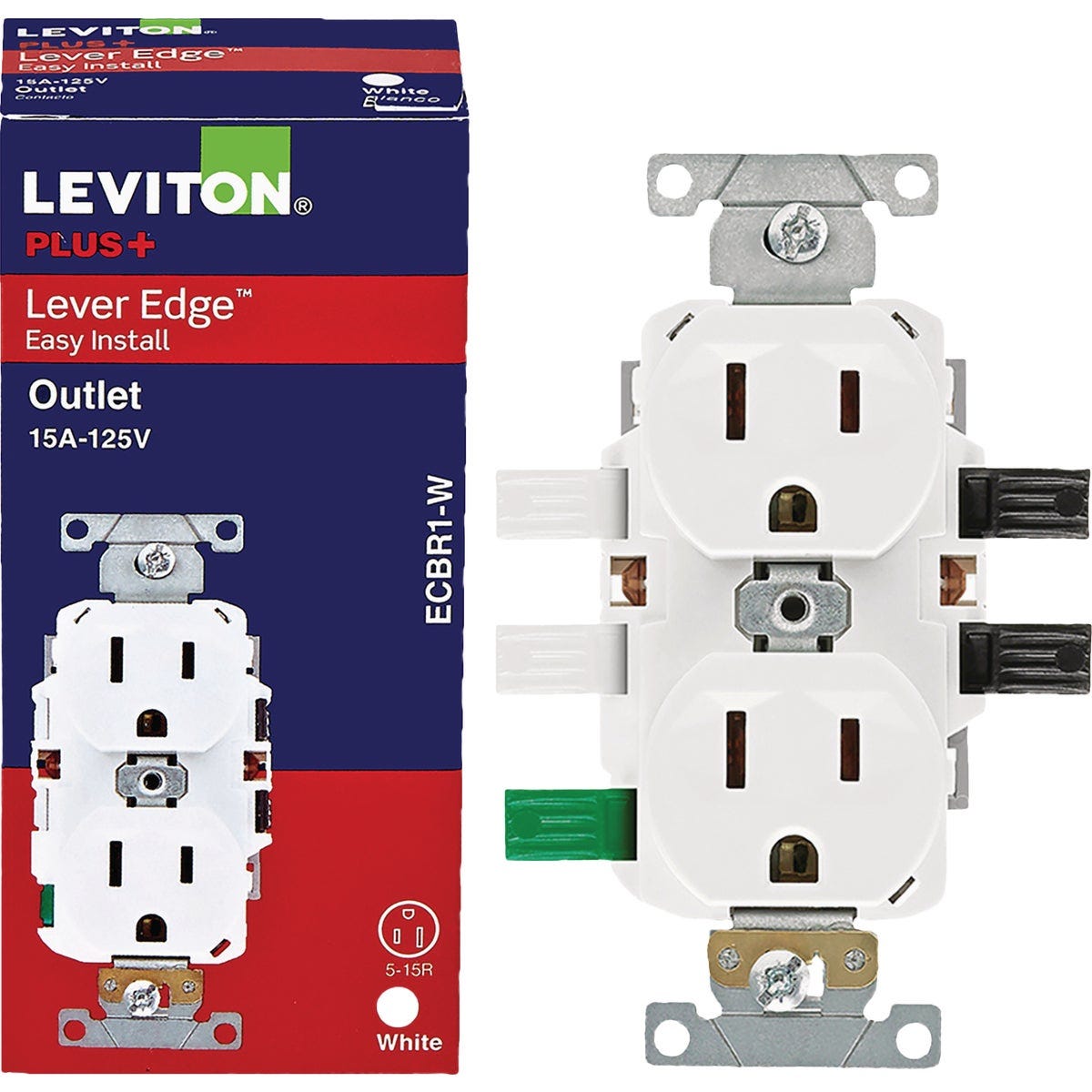

Leviton Lever Edge White 15A Commercial Grade 5-15R Duplex Outlet
Model #R12-ECBR1-00W UPC 00078477020401
Item #520750
Tap to view
Product overview
Lever Edge commercial wiring devices deliver faster, easier installation for busy job sites and demanding applications. Simply open the lever, push the wire into the terminal, click down, and you're done. The lever mechanism creates a strong, secure wire connection that supports superior performance and long-lasting reliability in commercial environments. A clear back cover provides quick visual confirmation of connection status, while the lever design makes unwiring or uninstalling just as simple, open the lever and pull the wire out. Lever Edge commercial devices are built to save time, reduce installation errors, and provide dependable connections across offices, schools, retail spaces, and more. They're also well-suited for residential applications such as garages and frequently used areas throughout the home. The future of wiring is simple: push, click, done.

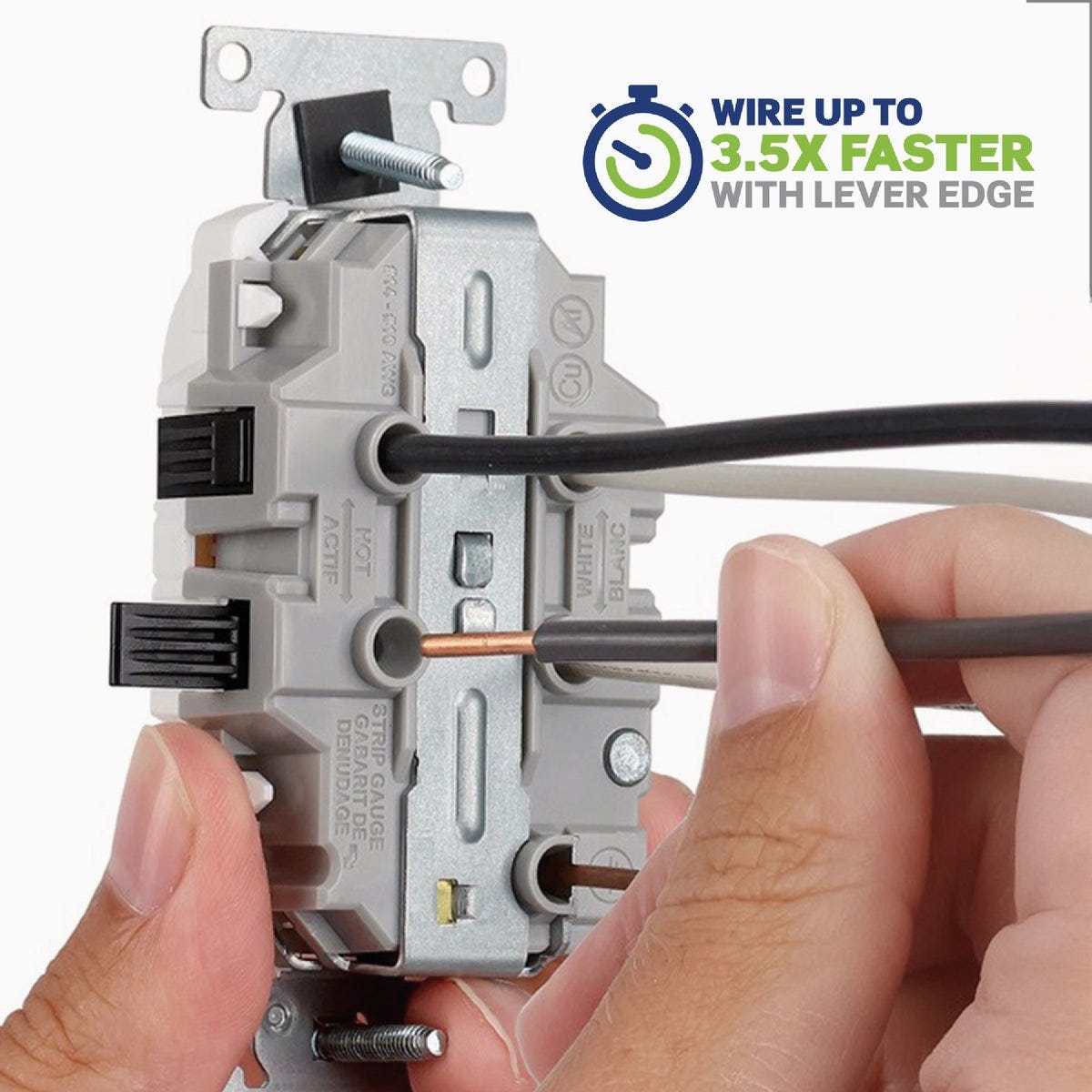

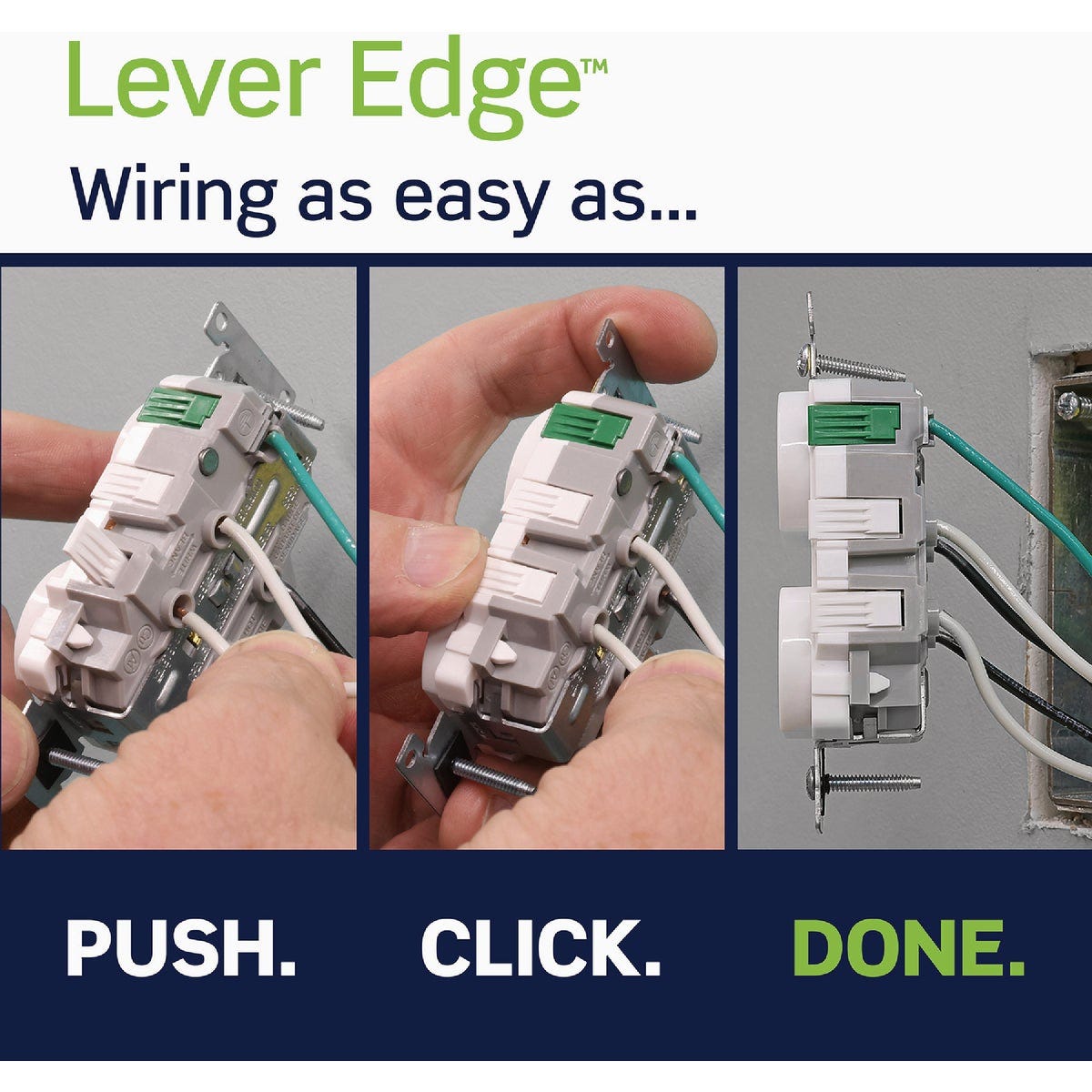

- Lever terminals for fast, efficient wiring just push, click, done

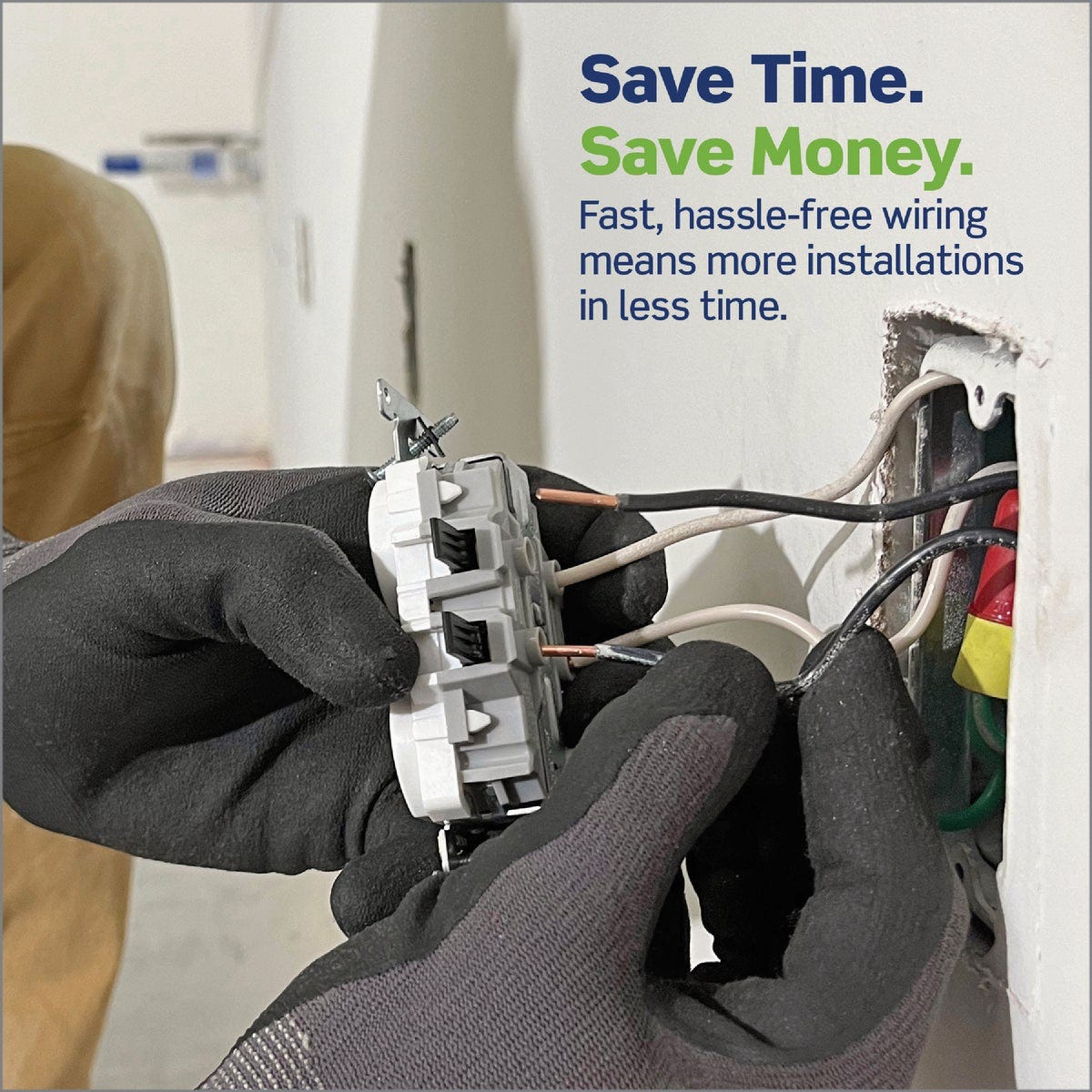

- Saves time installs up to 3.5X faster than terminal screw devices

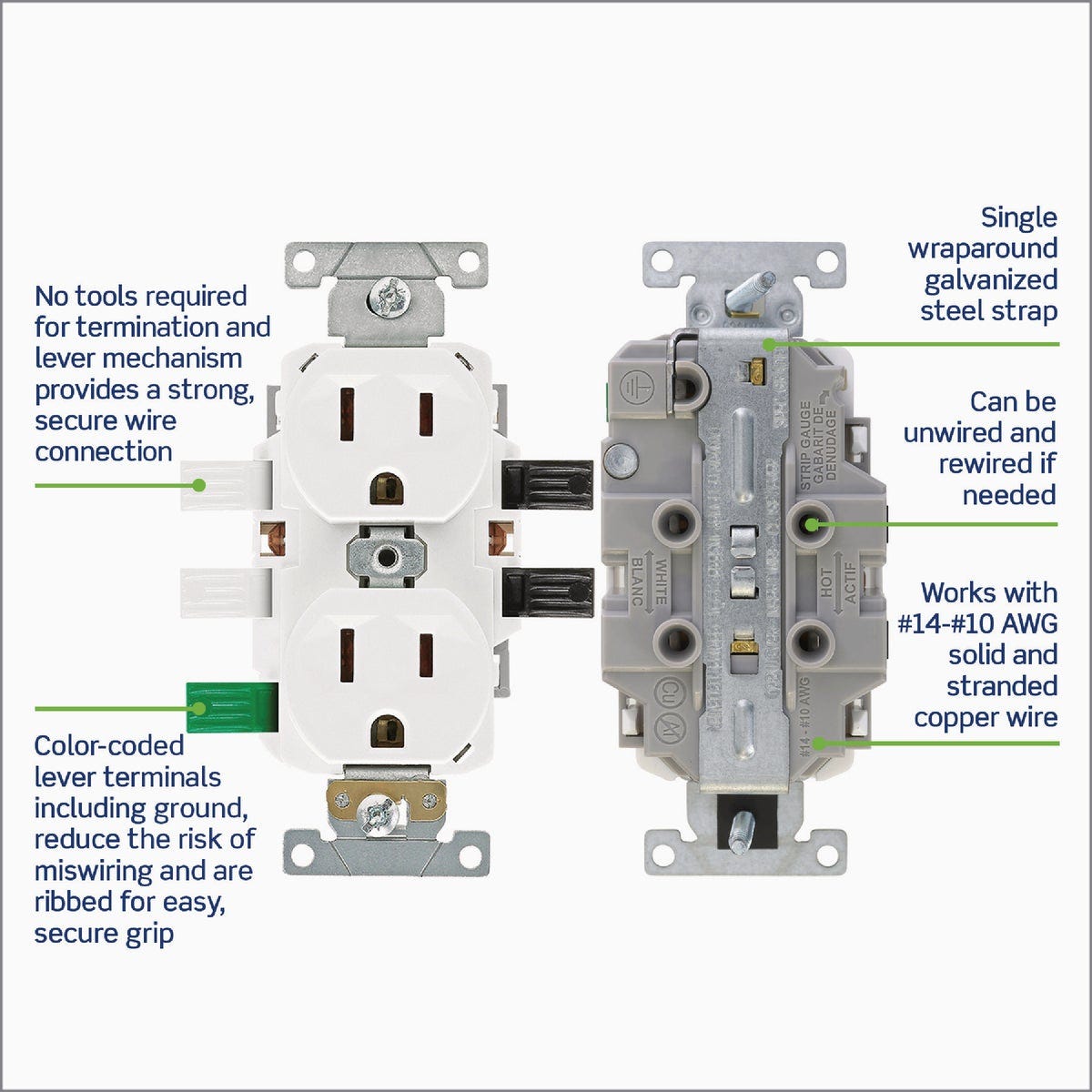

- Color-coded levers help reduce risk of miswiring
- Lever door with snap feature assures connection is made
- No exposed metal parts for enhanced safety, eliminates need for electrical tape
- Lever connectors work with 14-10 AWG stranded and solid wire
Specifications
| Color | WHITE |
| Amperage | 15 |
| Voltage | 125 |
| Number of Poles | 2 |
| Grade | Commercial & Industrial |
| NEMA Configuration | 5-15R |
| Number Of Wires | 3 |
| Brand | Leviton |
| UPC | 00078477020401 |
| Product type | Duplex Outlet |
