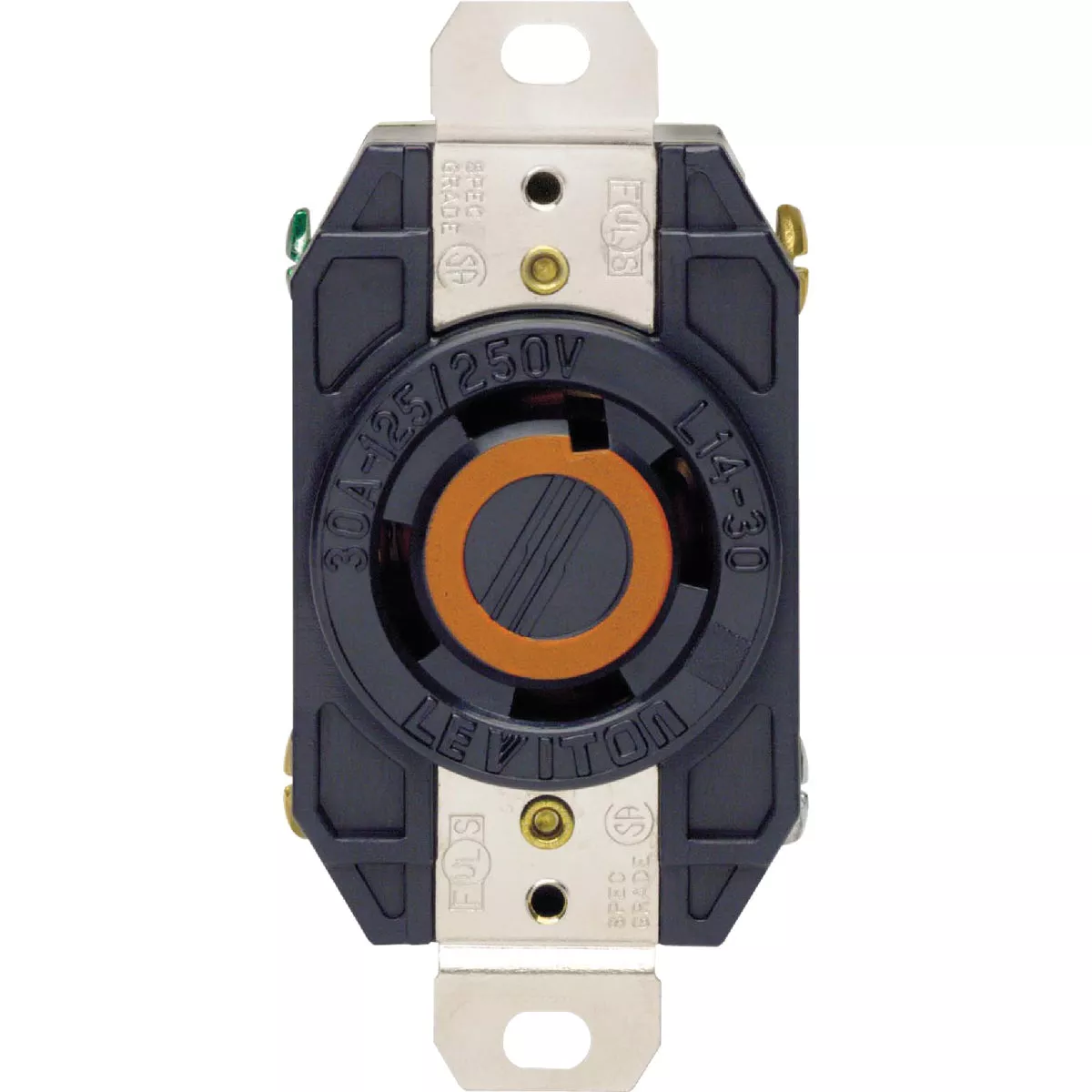

Leviton 30A 125V/250V Black Industrial Grade L14-30R Locking Outlet Receptacle
Model #065-2710Item #522330UPC 00078477809617
Tap to view
Product overview
Single flush locking receptacle. Extra-thick 0.50 inch nickel-plated brass mounting strap for high-abuse applications. Designed for maximum durability. Features 1-piece 0.040 inch brass, high copper content contacts with nickel-plated clamp-type terminals. UL (Underwriter's Laboratories) listed, CSA (Canadian Standards Association) certified. Limited lifetime warranty. Use with 1.60 inch diameter wall plate.
- Extra-thick 0.50 In. nickel-plated brass mounting strap for high-abuse applications
- 1-piece 0.040 In. brass, high copper content contacts with nickel-plated clamp-type terminals
- Designed for maximum durability
- Limited lifetime warranty
- CSA/UL Listed
Specifications
| Color | Black |
| Amperage | 30 |
| Voltage | 125/250 |
| Number Of Poles | 3 |
| Grade | Industrial |
| Certification | CSA/UL Listed |
| Power Rating | 2 H.P. |

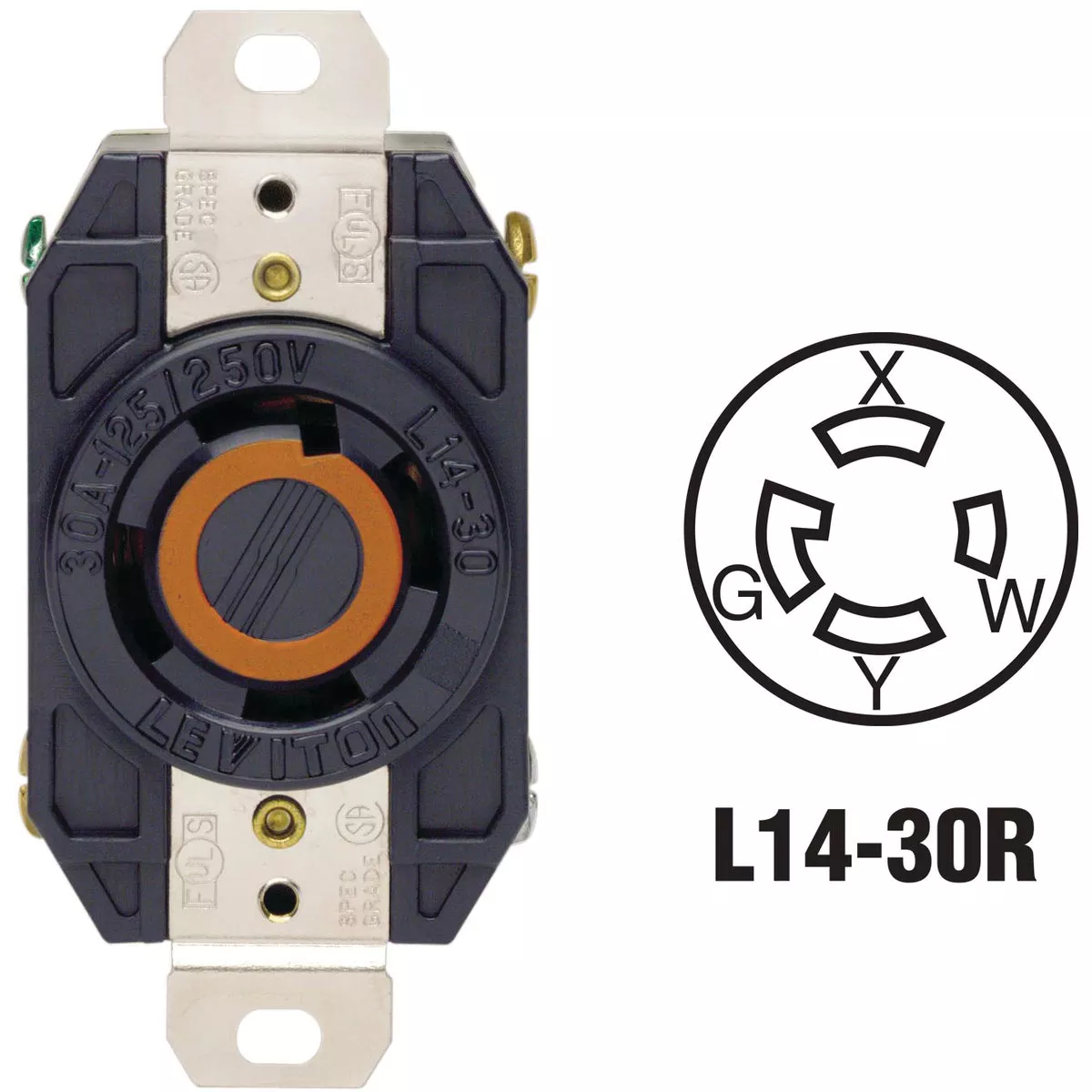

| NEMA Configuration | L14-30R |
| Number Of Wires | 4 |
| Brand | Leviton |
| UPC | 00078477809617 |
| Product type | Locking Outlet |
