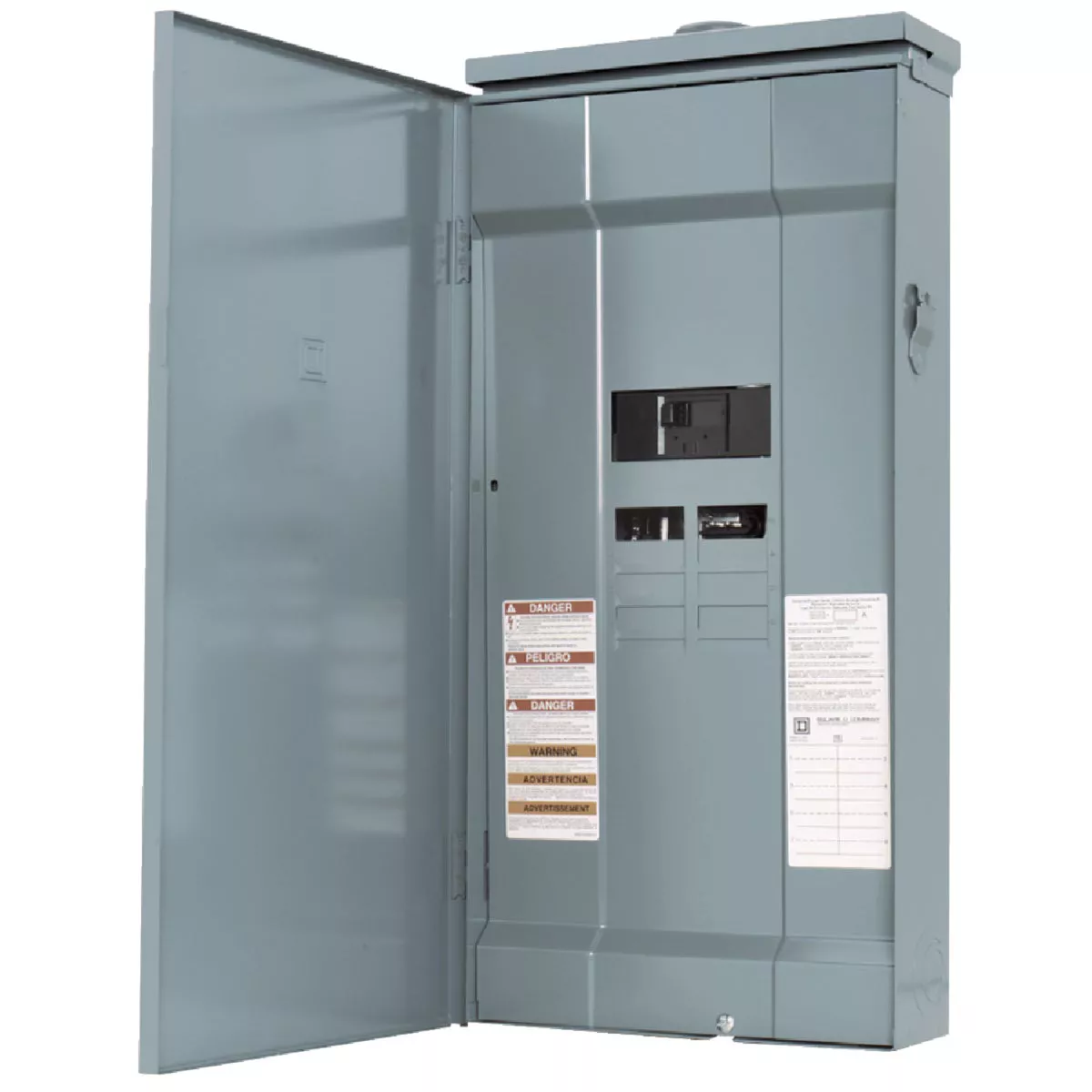

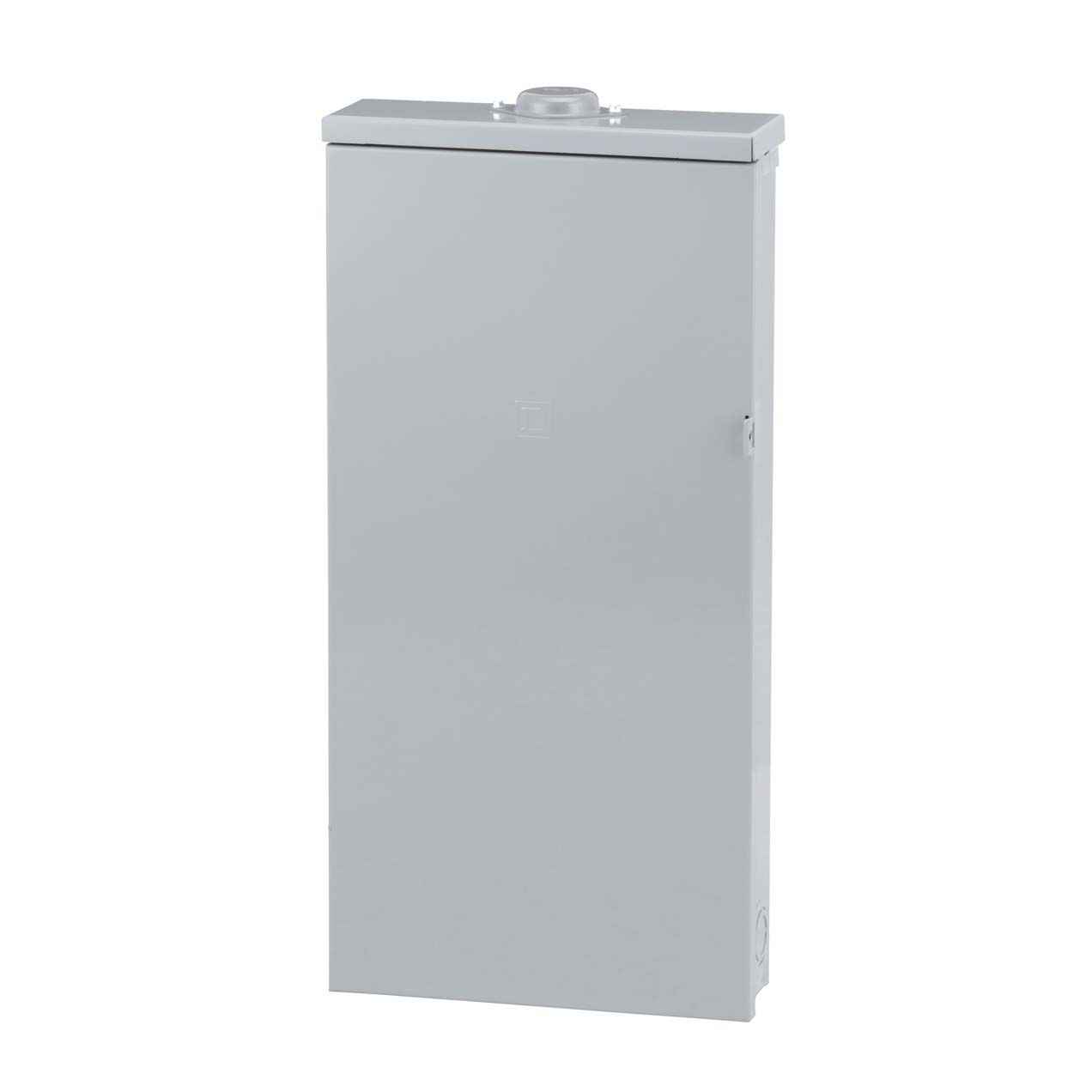

Square D Homeline 200A 8-Space 16-Circuit Raintight Main Breaker Plug-on Neutral Load Center with Feed-Through Lugs
Model #HOM816M200PFTRBItem #524204UPC 00785901973959
Tap to view
Product overview
Square D Homeline convertible main breaker load center. For residential and commercial power distribution. Plug-on Neutral ready and built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. 200 amp main breaker included. Engineered for fast installation and wire savings. UL (Underwriter's Laboratories) listed for residential and commercial power distribution.
- For residential and commercial applications
- Plug-on neutral ready and built with a plated, aluminum bus bar
- 200A main breaker included
- Engineered for fast installation and wire savings
- UL listed for residential and commercial power distribution

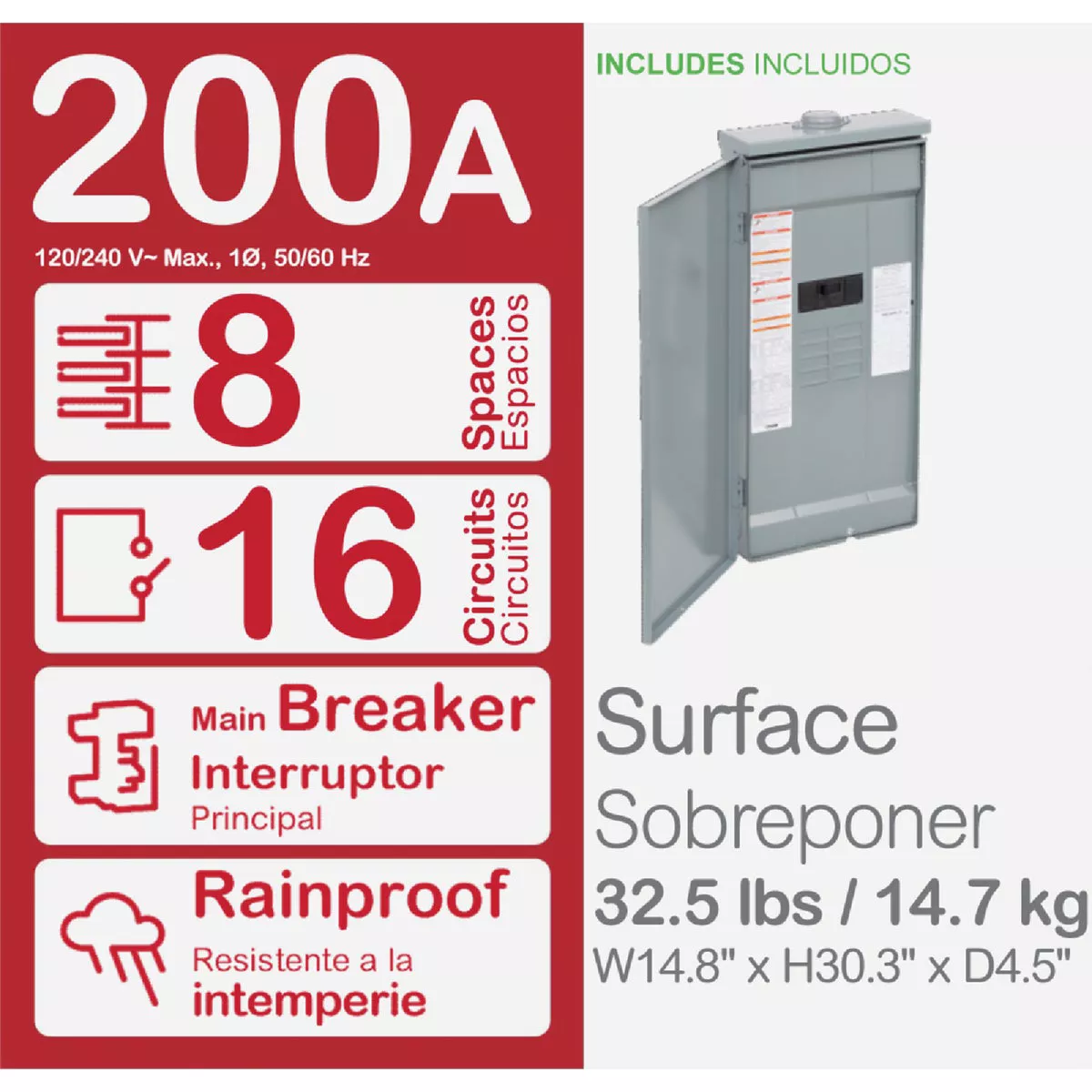

Specifications
| Amperage | 200 |
| Voltage | 120/240 |
| Series | Homeline |
| Number Of Spaces | 8 |
| Enclosure Type | Raintight |
| Mount Type | RB |
| Phase | Single |
| Wire Size | #4-250 AWG/kcmil (Copper, Aluminum) |
| Certification | UL Listed |
| Max Number of Circuits | 16 |
| Brand | Square D |
| UPC | 00785901973959 |
| Product type | Load Center |
