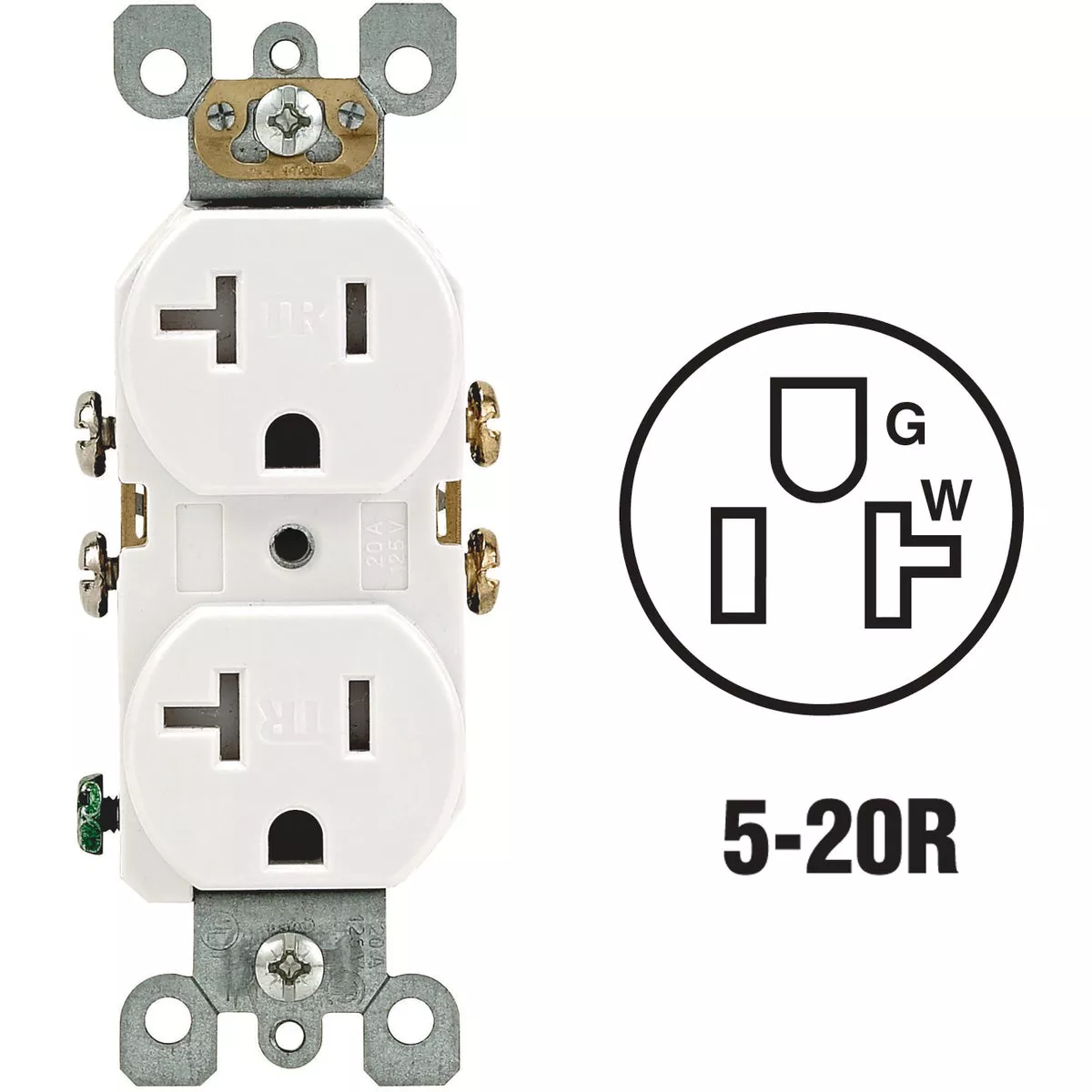

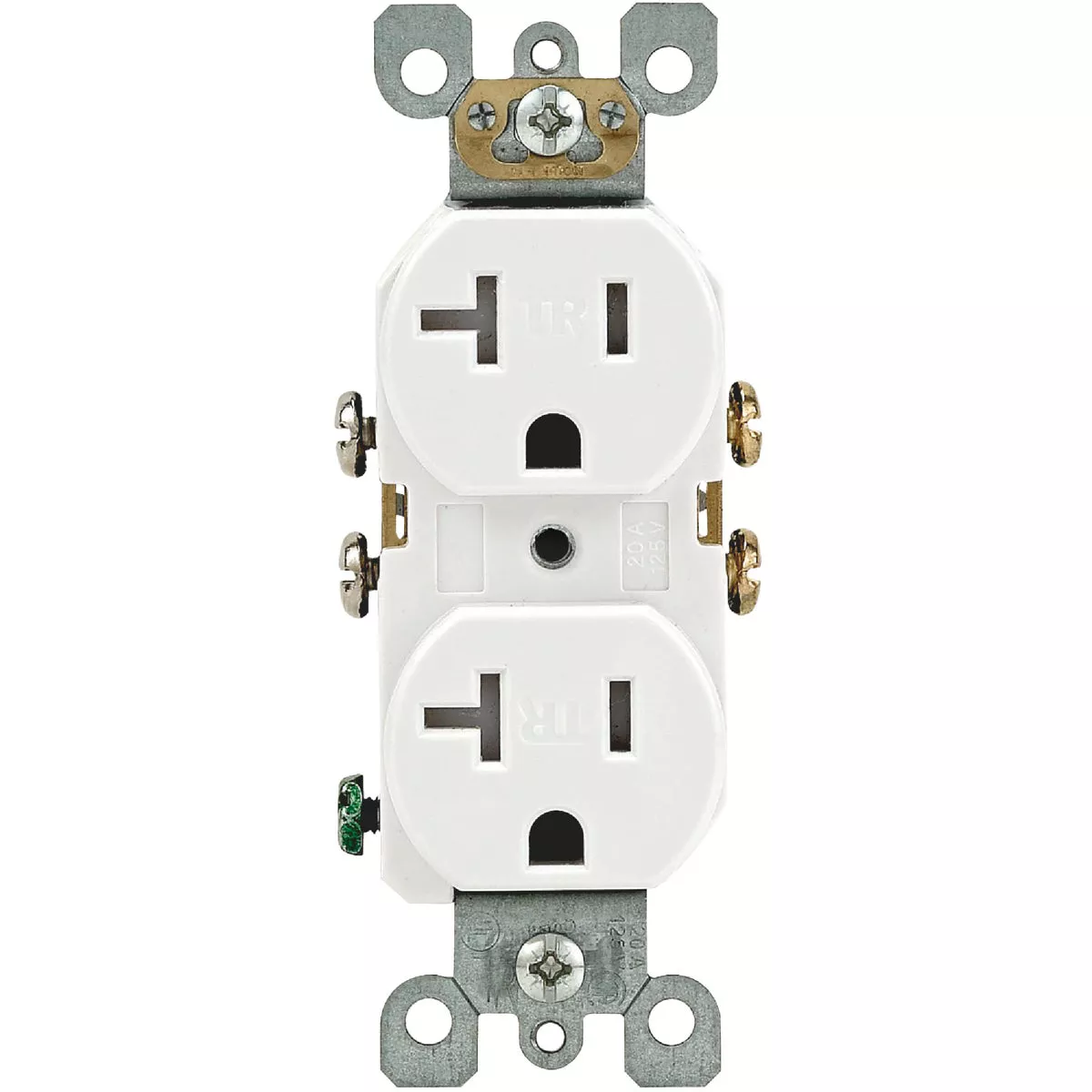

Leviton 20A White Tamper Resistant Residential Grade 5-20R Duplex Outlet

Model #S02-T5820-0WS Item #525426 UPC 00078477466728
Tap to view
In-store price may vary from online price. Not all products available at all stores .
Same-day pickup
Not available
Ship to store
Not available
Ship to home
Not available
Product overview
Residential grade tamper resistant thermoplastic duplex grounding receptacle. Shutter mechanism inside the receptacle blocks access to the contacts unless a 2-prong plug is inserted, ensuring objects such as hairpins and keys will be locked out. Features a narrow body, side wired, and large head terminal screws that accept up to No. 10 copper wire. Triple wire power contacts for maximum conductivity and plug retention, captive mounting screws for fast installation. Convenient washer-type break-off plaster ears for best flush alignment and break-off tabs for easy 2-circuit conversion. Includes heavy-gauge rust-resistant steel mounting strap. Limited 2-year warranty.
  • Tamper resistant, thermoplastic construction
  • Shutter mechanism inside the receptacle blocks access to the contacts unless a 2-prong plug is inserted, ensuring objects such as hairpins and keys will be locked out
  • Narrow body, side wired, and large head terminal screws that accept up to No. 10 copper wire
  • Triple wire power contacts for maximum conductivity and plug retention, captive mounting screws for fast installation
  • Convenient washer-type break-off plaster ears for best flush alignment and break-off tabs for easy 2-circuit conversion
  • Includes heavy-gauge rust-resistant steel mounting strap
  • Limited 2-year warranty
  • UL Listed
Color WHITE
Amperage 20
Voltage 125
Number Of Poles 2
Grade Residential
Certification UL Listed
NEMA Configuration 5-20R
Number Of Wires 3
Brand Leviton
UPC 00078477466728
