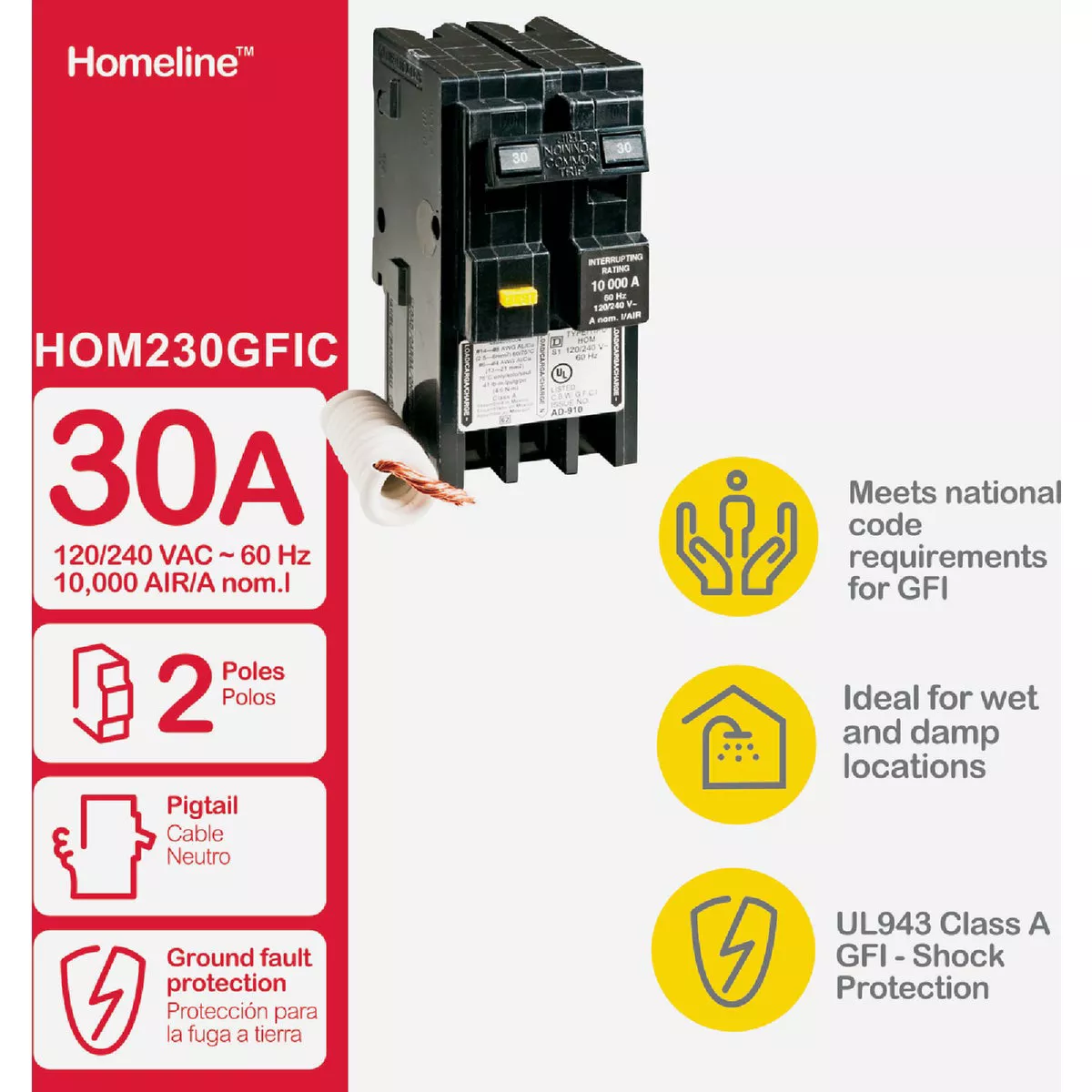

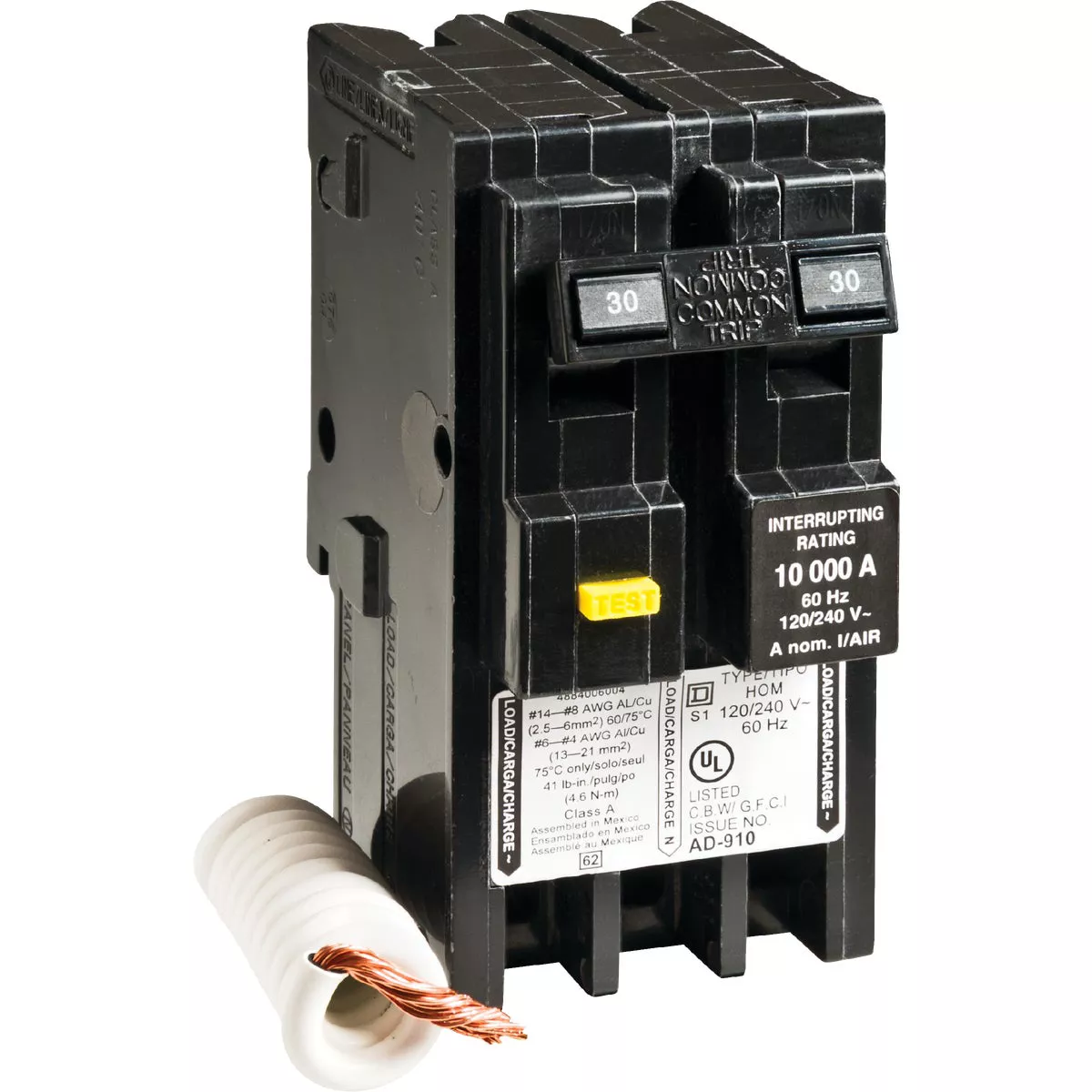

Square D Homeline 30A Double-Pole GFCI breaker
Model #HOM230GFIC UPC 00785901152873
Item #526276
Tap to view
Product overview
Square D Homeline miniature GFCI (ground fault circuit interrupter) circuit breaker. In a 1-inch wide format for 1-pole circuit breakers. They are designed to plug into Homeline load centers. Provides overload and short circuit protection, combined with Class A ground fault protection. UL (Underwriter's Laboratories) listed.
- 1 In. W. format for 1-pole circuit breakers
- Designed to plug into Homeline load centers
- Provide overload and short circuit protection, combined with Class A ground fault protection
- UL listed
Specifications
| Amperage | 30 |
| Voltage | 120 AC |
| Number of Poles | 2 |
| Mount Type | Plug-On |
| Wire Size | #12-4 AWG AL/#14-6 AWG Cu |
| Certification | UL Listed |
| Interruption Type | GFCI |
| Frame Size | 2-Space |
| Width (In.) | 1 |
| Brand | Square D |
| UPC | 00785901152873 |
| Product type | GFCI Breaker |
