Product overview

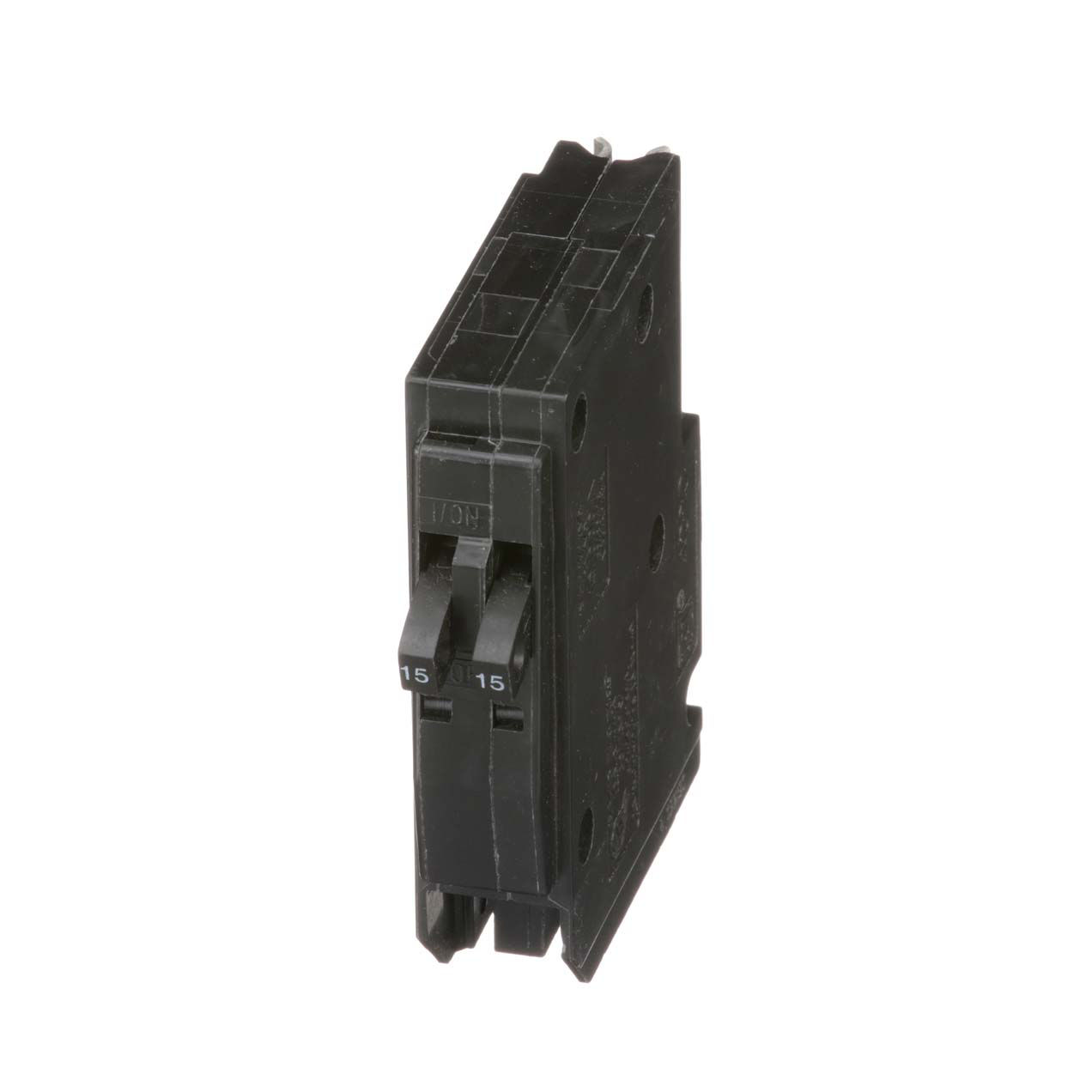

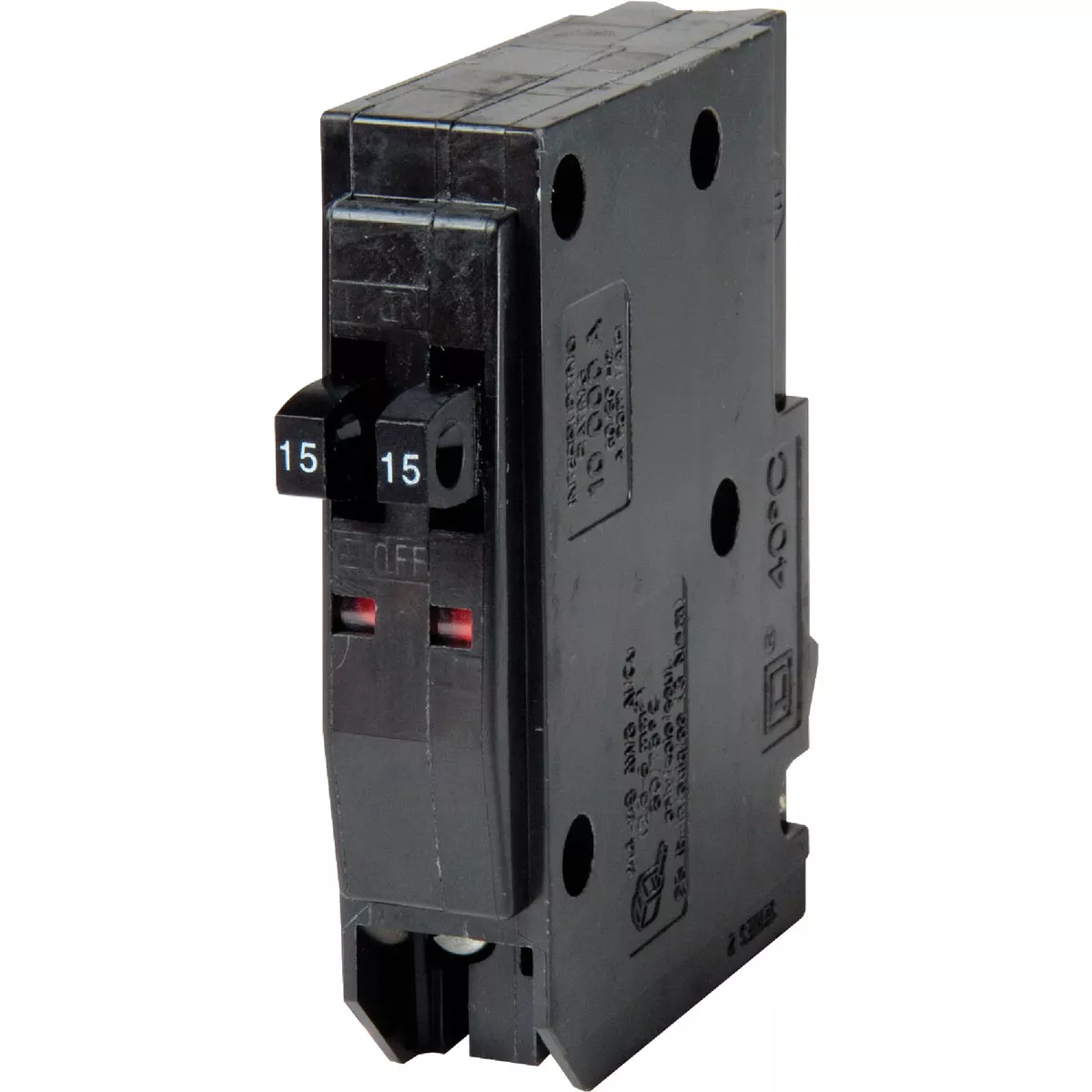

QO single-pole tandem circuit breaker. Ideal for overload and short-circuit protection of electrical systems. Offers 2 circuits in the space of 1. Compatible with QO load centers, CSED devices, and NQOD panel boards. Equipped with the exclusive Visi-Trip indicator. When breaker is tripped, the handle snaps to a midpoint position and a highly visible, red indicator easily identifies the tripped breaker. ANSI (American National Standards Institute) certified and UL (Underwriter's Laboratories) listed is rated for 120 volt/240 volt and 10,000 AIR. For use in load centers manufactured after 1967 that are not modern QO Plug on Neutral load centers.
- Offers 2 circuits in the space of 1
- Equipped with the exclusive Visi-Trip indicator
- Compatible with QO load centers, CSED devices, and NQOD panel boards
- Ideal for overload and short-circuit protection of electrical systems
- ANSI/UL Listed
Product manuals and information
Specifications
Amperage | 15/15 |
Voltage | 120/240 |
Number Of Poles | 1 |
Mount Type | Pan Rail Slot |
Wire Size | #12-8 AWG Al/#14-8 AWG Cu |
Certification | ANSI/UL Listed |
Interruption Type | Standard Trip |
Frame Size | 1-Space |
Breaker Size | 3/4 In. |
Width (In.) | 0.75 |
Brand | Square D |
UPC | 00047569062698 |
