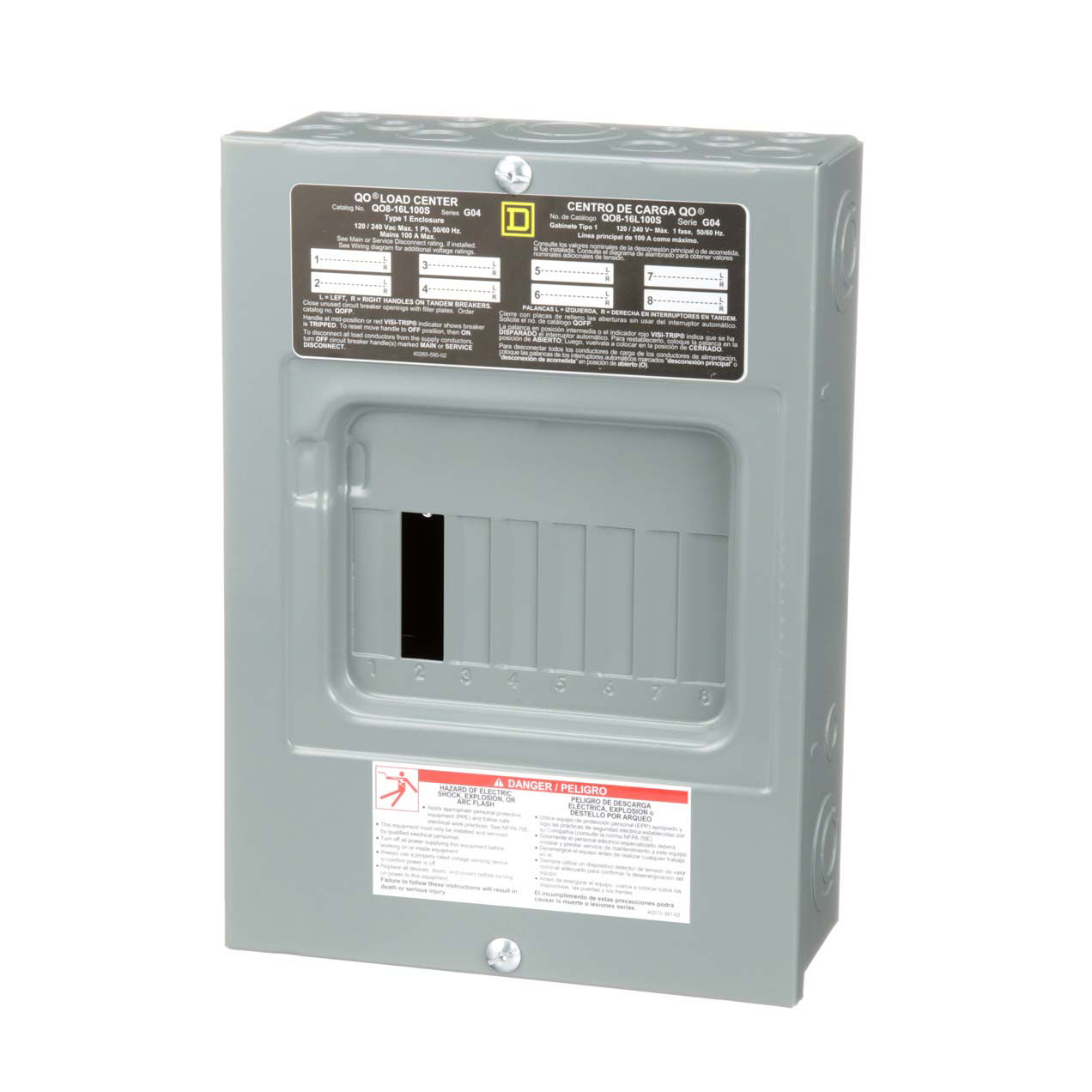

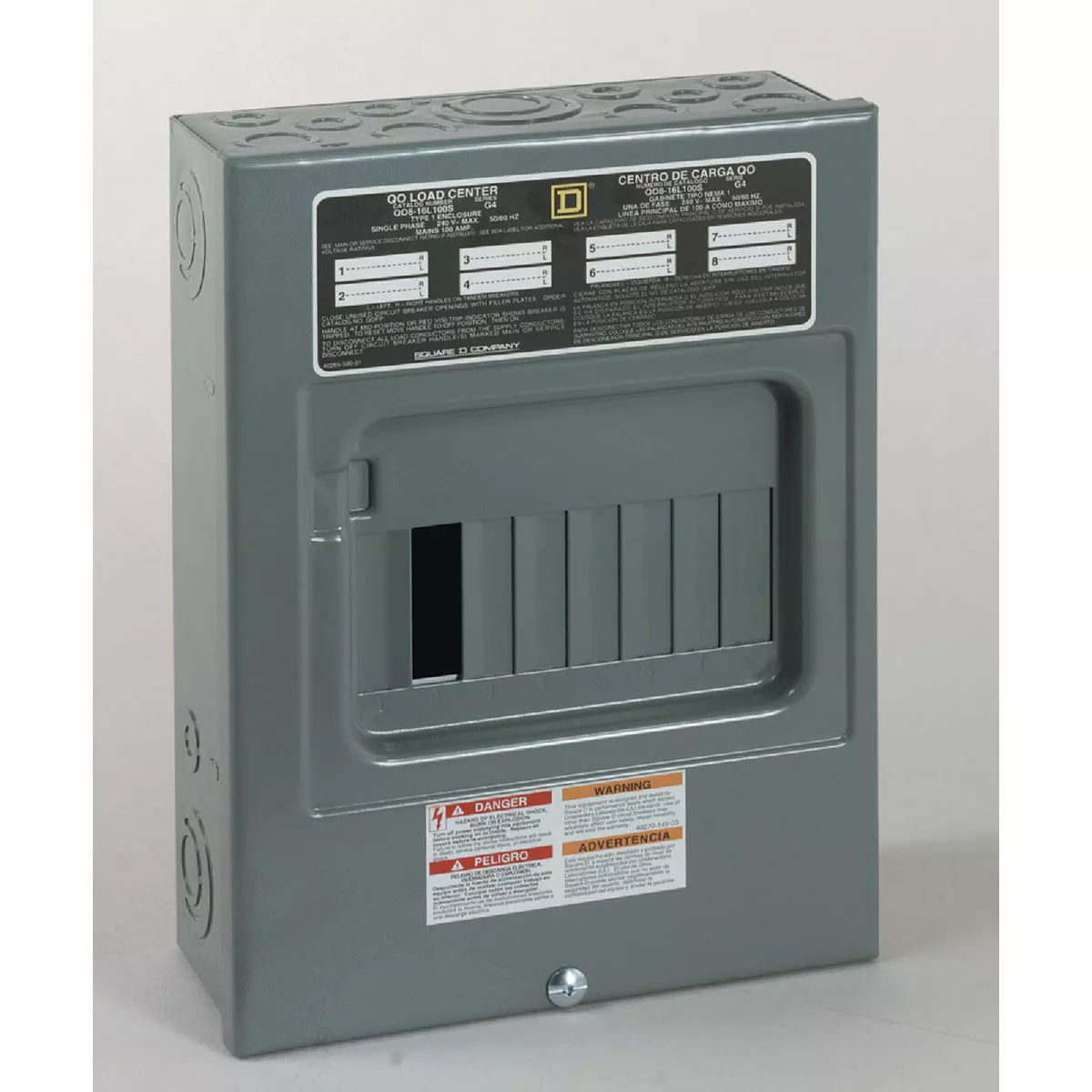

Square D QO 100A 8-Space 16-Circuit Indoor Main Lug Load Center
Model #QO816L100SCPItem #528487UPC 00047569804762
Tap to view
Product overview
Type QO main lug load center, main lug only, single-phase, 3-wire. Rugged thermoplastic interior and an aluminum bus bar, 3 ground bar locations. Cover included. UL (Underwriter's Laboratories) listed for residential, commercial, and industrial power distribution. Tested and listed only for QO circuit breakers. Engineered for fast installation and wire savings. For indoor use.
- Rugged thermoplastic interior and an aluminum bus bar, 3 ground bar locations
- Cover included
- Engineered for fast installation and wire savings
- UL listed for residential, commercial, and industrial power distribution
Specifications
| Amperage | 100 |
| Voltage | 120/240 |
| Series | QO |
| Number Of Spaces | 8 |
| Enclosure Type | Indoor |
| Mount Type | Surface |
| Phase | Single |
| Wire Size | (8) #1 AWG (Aluminum, Copper) |
| Certification | UL Listed |
| Max Number of Circuits | 16 |
| Brand | Square D |
| UPC | 00047569804762 |
| Product type | Load Center |
