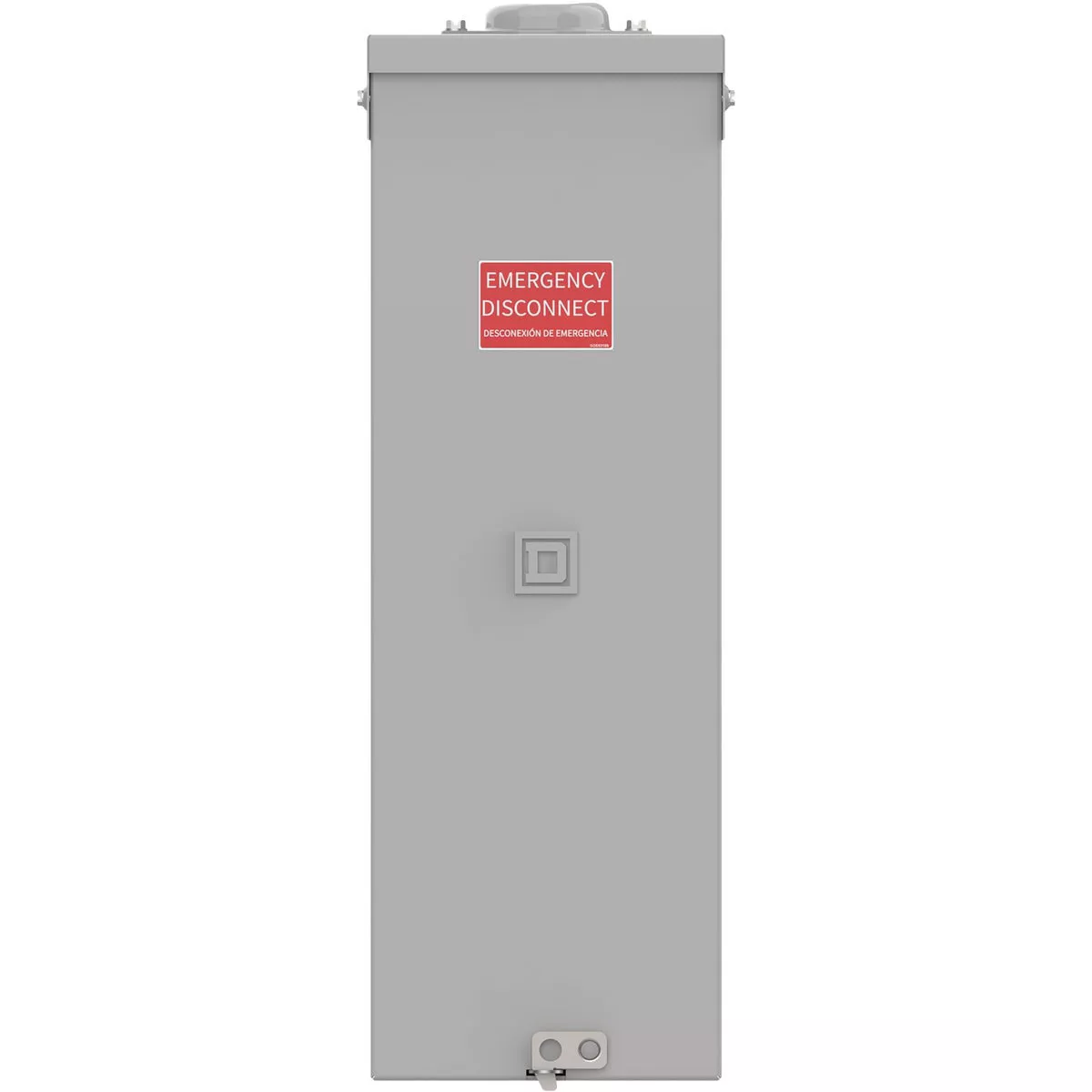

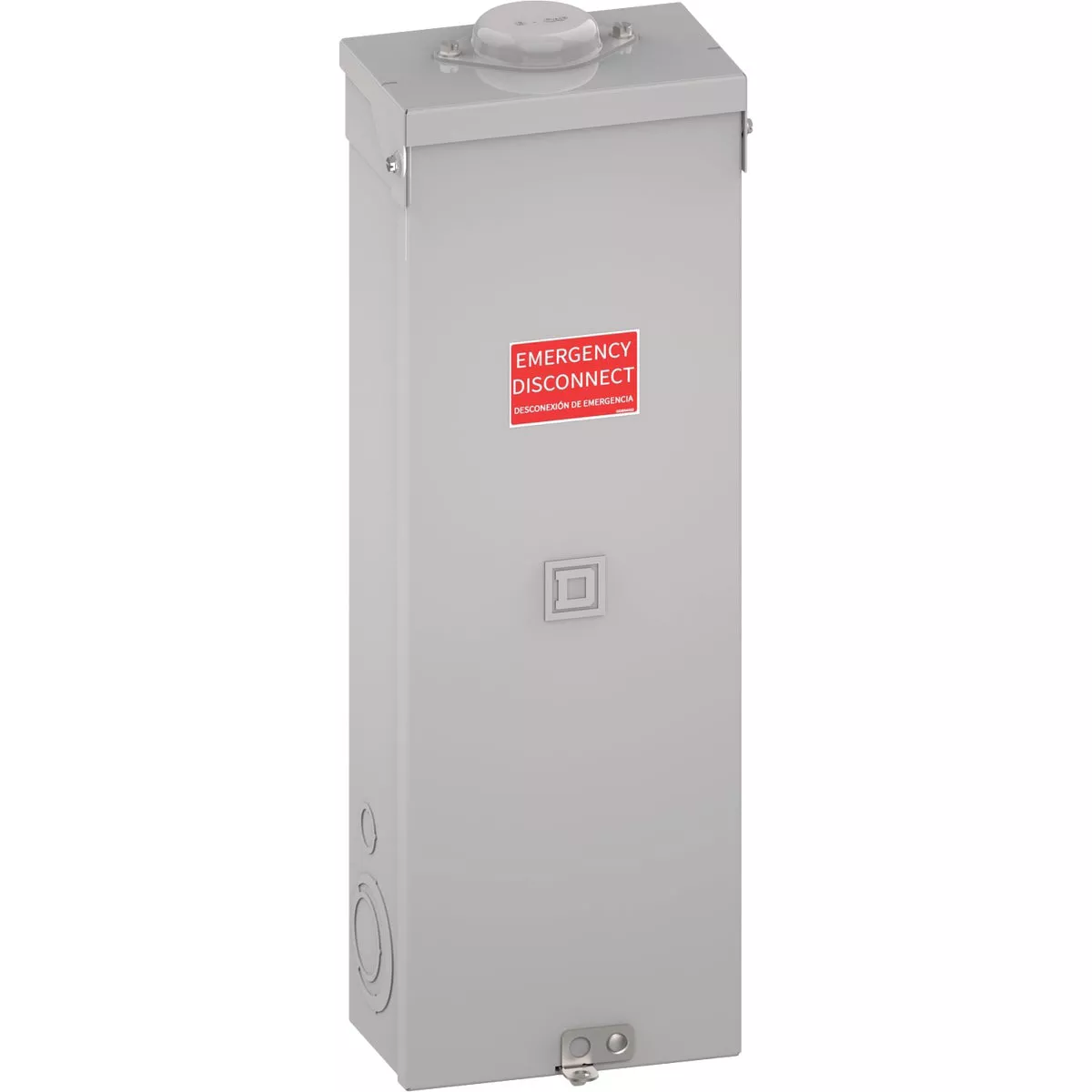

Square D QO 200A Double-Pole Standard Trip Outdoor Enclosed Raintight Main Breaker Disconnect
Model #Q2200MRBE UPC 00785901695660
Item #529464
Tap to view
Product overview
Residential enclosed circuit breaker. Designed to be code compliant, easy to install, customizable, and highly reliable. This rainproof circuit breaker is suitable for use only as service equipment because it features a service entrance barrier, factory installed neutral bar bonded to the enclosure, factory applied emergency disconnect, service entrance labels, and factory installed QDL22200 molded case circuit breaker (150 to 200A 25kAIR). Separate raintight access door to circuit breaker. Convenient hook and hang mounting. Provisions for padlocking and sealing the enclosure separately from the breaker are standard. Rated Type-3R for outdoor use. UL (Underwriter's Laboratories) listed. A compact and flexible 2020 NEC compliant residential service entrance device.
- For use as a separate main breaker or where a main disconnect is required by code to be outside the structure
- Includes factory installed (1) QDL22200, (1) service entrance barrier, (1) emergency disconnect label & (1) service disconnect label

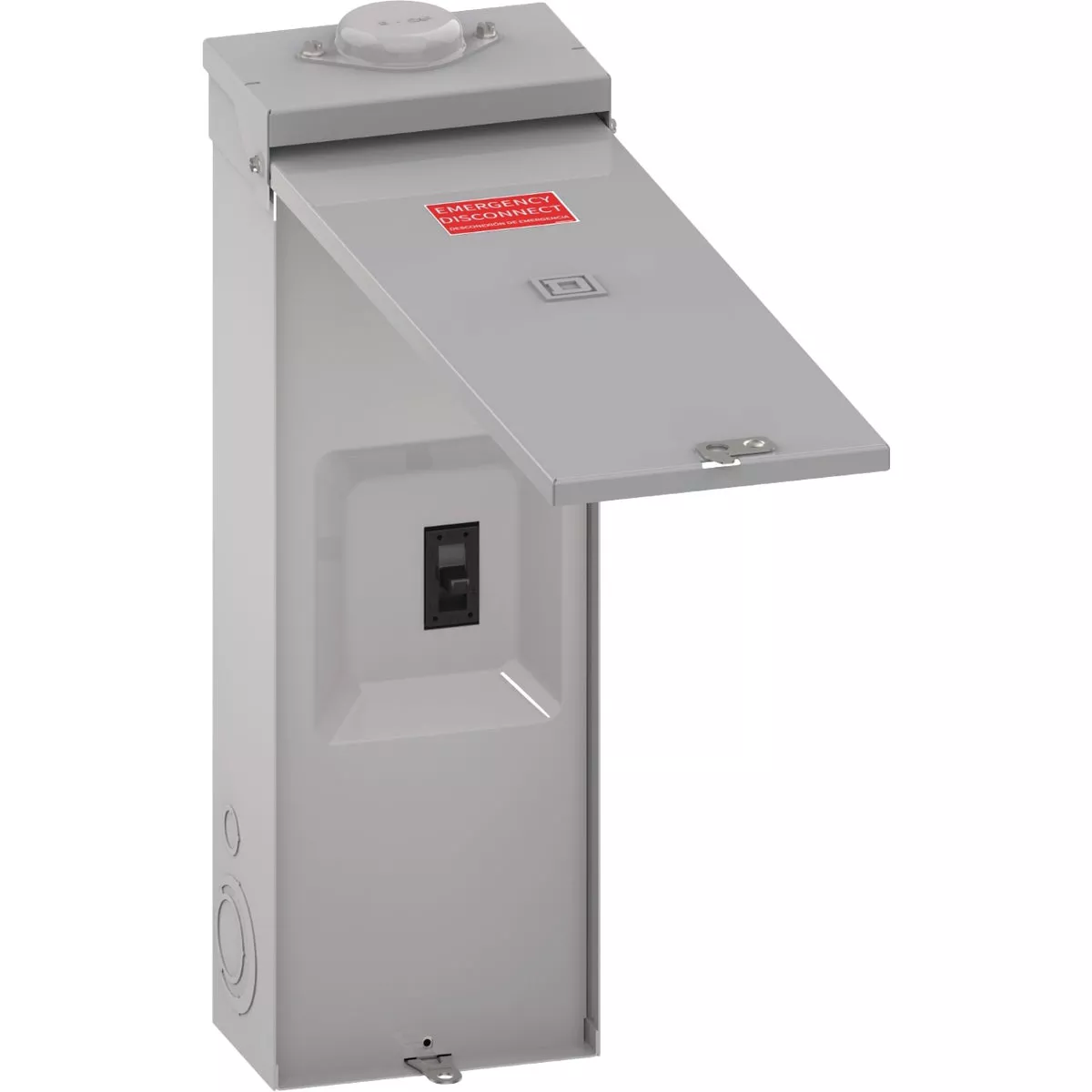

- Separate raintight access door to circuit breaker

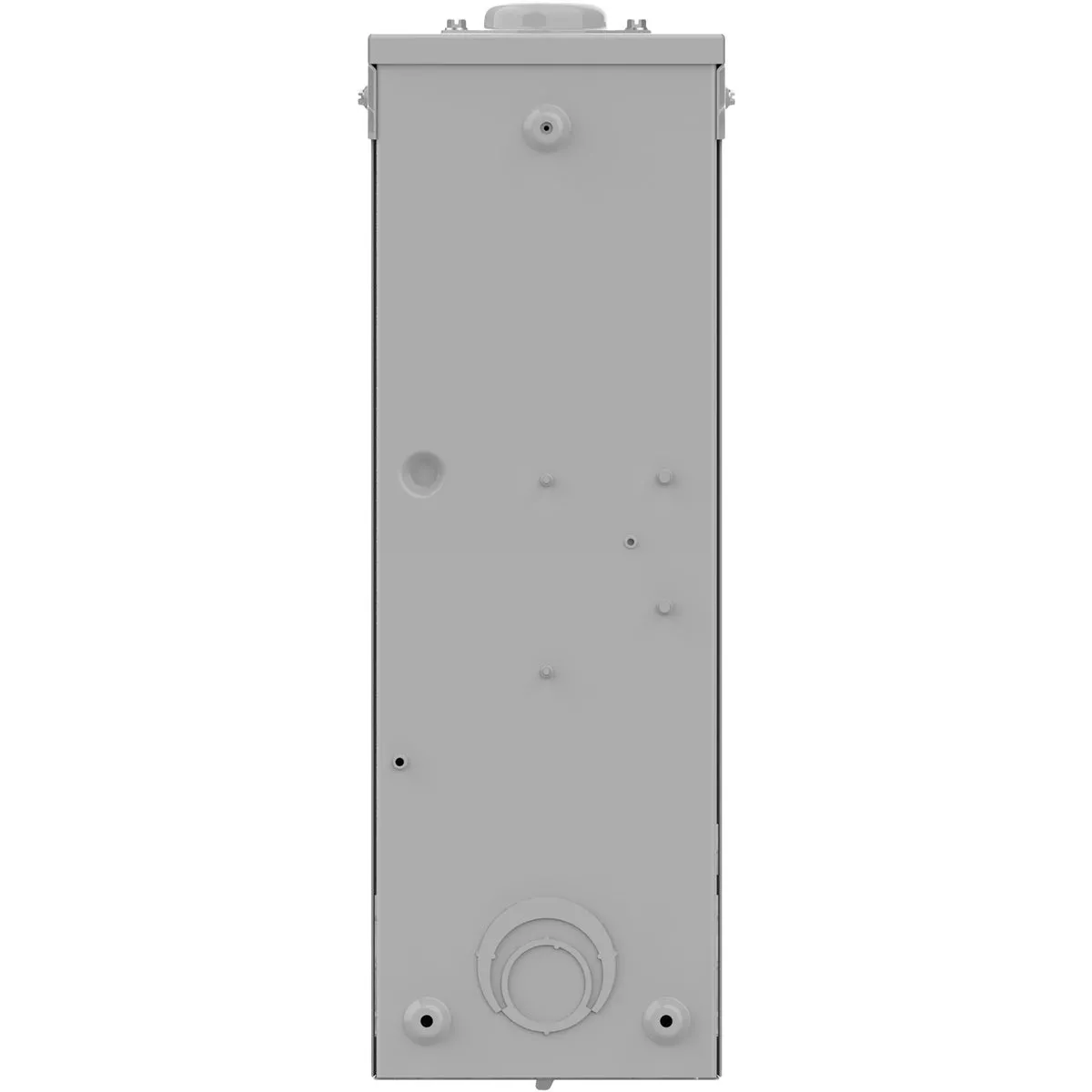

- Convenient hook and hang mounting
- Provisions for padlocking and sealing the enclosure separately from the breaker are standard
- Rated Type-3R for outdoor use
- UL Listed
Specifications
| Amperage | 200 |
| Voltage | 120/240 |
| Number of Poles | 2 |
| Mount Type | Plug-On |
| Wire Size | 14AWG to 12AWG 1/0 AWG Copper |
| Certification | UL Listed |
| Interruption Type | Standard Trip |
| Frame Size | 2-Space |
| Width (In.) | 7.64 |
| Height (In.) | 23.39 |
| Depth (In.) | 4.76 |
| Brand | Square D |
| UPC | 00785901695660 |
| Product type | Main Breaker |
