Southwire #14 SOL to #6 STR Single #10 Hole Mount Copper Alloy Offset Tongue Lug (2-Pack)
Model #65179040Item #538671UPC 00032886791673
Tap to view
Product overview

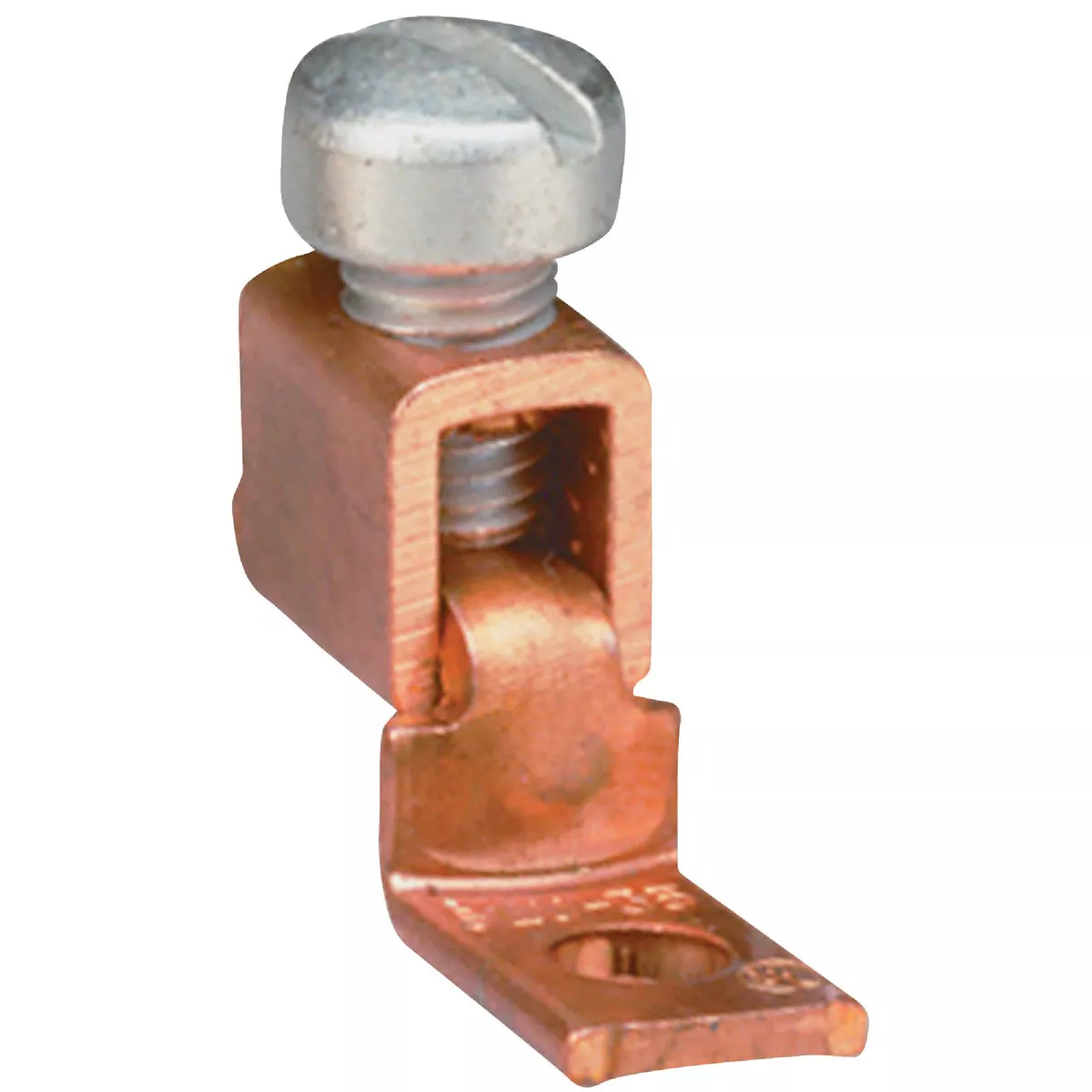

Offset tounge lug are used in the termination of a conductor. Has a wire range from #14 STR to #6 STR. Rated for 600 voltages to meet your specific needs. Additionally, they are built with a single #10-hole mount.
- Electrolytic copper tubing and strip stock for maximum conductivity and strength.
- V-bottom collar assures positive contact and firm, permanent grip
- Compact design saves space and reduces installation time
- Designed for a single hole mount
- V-bottom collar wedges wires between arched pressure bar and collar creating positive contact and firm permanent grip
- Durable copper construction maximum conductivity and strength
- CSA/UL Listed
- Single #10 hole mount
- Rated 600V/90 Deg C
Specifications
| Material | Copper |
| Certification | CSA/UL Listed |
| Gauge | #6 to #10 SOL |
| Hole Size | 0.4070 In. |
| Brand | Southwire |
| UPC | 00032886791673 |
| Product type | Lug Terminal |
