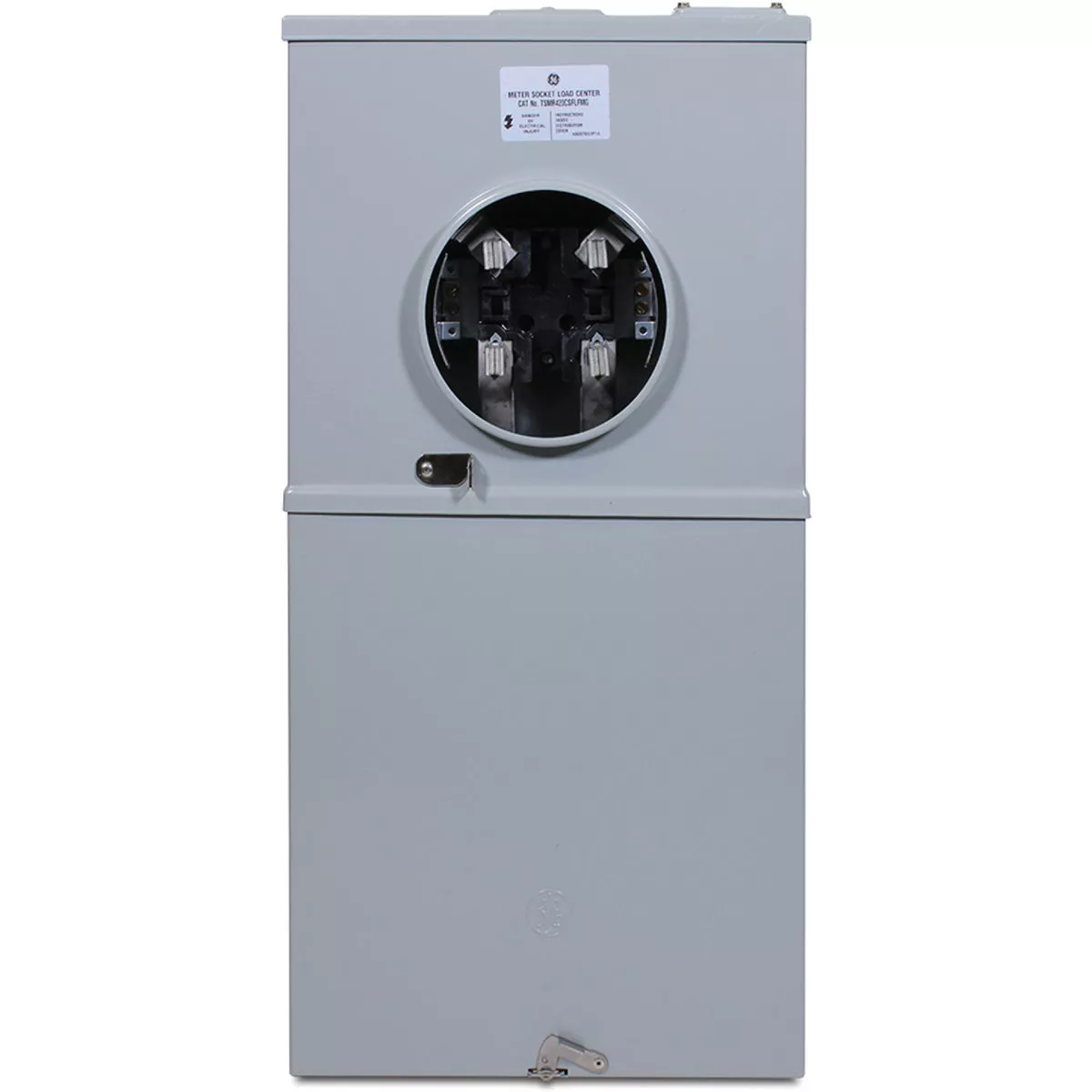

GE 200A 4-Space 8-Circuit Outdoor Load Center
Model #TSMR420CSFLFMGItem #539403UPC 00783164415131
Tap to view
Product overview
Outdoor combination main breaker/ringless meter socket load center. Panelboards No. 67 60-degree/75-degree centrigrade conductor rating. Suitable for use as service entrance equipment when installed in accordance with the National Electrical Code 22kAIC. RMS symmetrical, except where noted. 6-42 circuit devices. UL (Underwriter's Laboratories) listed for bottom mounted lugs by installing complete unit (box, interior and front) upside down. 4/8, NEMA 3R, OH/UG.
- Conductor rating suitable for use as service entrance equipment
- UL listed for bottom mounted lugs by installing complete unit (box, interior and front) upside down
Specifications
| Amperage | 200 |
| Voltage | 120/240 AC |
| Number Of Spaces | 4 |
| Enclosure Type | Outdoor |
| Mount Type | Plug-In |
| Phase | Single |
| Certification | UL Listed |
| Max Number of Circuits | 8 |
| Brand | GE |
| UPC | 00783164415131 |
| Product type | Load Center |
